P40 Urmet Simon Nea 250V schuko outlet with USB 5V 3A Aluminum 10312/2AL
UTD 10312/2AL
8033335043109

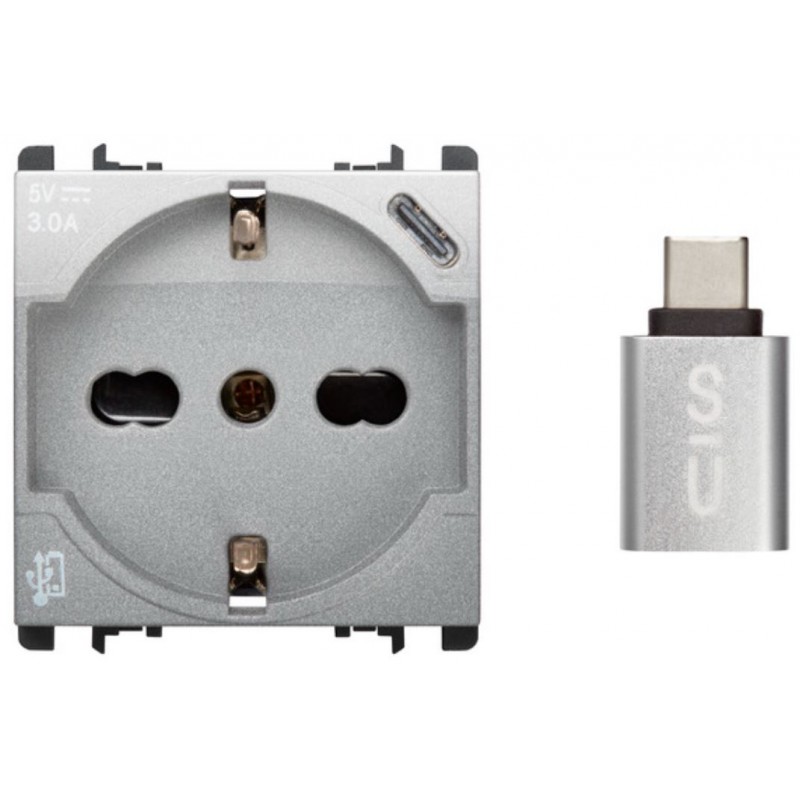

P40 Urmet Simon Nea 2P+E 16A-250V schuko outlet with USB 3.0A Type C power supply unit:
- 2 modules
- Color Aluminum
- To be mounted on holders: 10703N/10704N/10706N/10707
An adapter (Type C to Type A) is included inside the package.
€37.14
Items Available: 2
: 1
The device is a P40 multistandard electrical outlet that integrates a 5V 3A USB Type C power supply unit for charging all electronic devices that use the USB standard.
An adapter is supplied with the product to change the USB type C port to a USB type A port.
Features Schuko outlet:
- Rated voltage: 230 V
- Rated current: 10 A to 16 A
- Interrupting power: 50 cycles (plug in and out) 275 V~ cos ? 0.6 (12.5 A and 20 A)
- Electrical life: 5000 cycles (plug insertion and disconnection) with rated current and voltages at cos ? 0.8
- Active shielded cavities
- Differentiated elastic honeycombs
USB features:
- Power supply: 230 V~ 50 Hz
- Power consumption: 200 mA at 230 V~
- Output voltage: 5 V (± 5%) SELV
- Max output load: 3 A
- Efficiency: greater than 85% (Energy Star EPS v.2)
- No-load consumption: <100 mW
- Degree of protection: IP20
- Operating temperature: 0 °C / +45 °C (indoor use)
- Luminaire Class: II
- Overvoltage category (IEC 60364-4-44): CAT II
- Dimensions (WxHxD): 45.5 x 50 x 53 mm
- Disconnection device with contact spacing of at least 3 mm
There are no reviews
Data sheet
- Main Commands: Power Sockets
