Mitsubishi MSZ-AY Quadri Split Air Conditioner 9000+9000+12000+12000BTU 2.5+2.5+3.5+3.5kW Wifi
KIT MSZ9922AYW
The Mitsubishi MSZ-AY Quadri Split 9000+9000+12000+12000 BTU (2.5+2.5+3.5+3.5 kW) is the perfect solution for those who want to air condition rooms simultaneously with a single outdoor motor, ensuring maximum efficiency, quiet operation and cleaner air. With built-in MELCloud Wi-Fi, Plasma Quad Plus advanced filtration system and Self Clean Mode technology, this air conditioner ensures high performance with low energy impact.

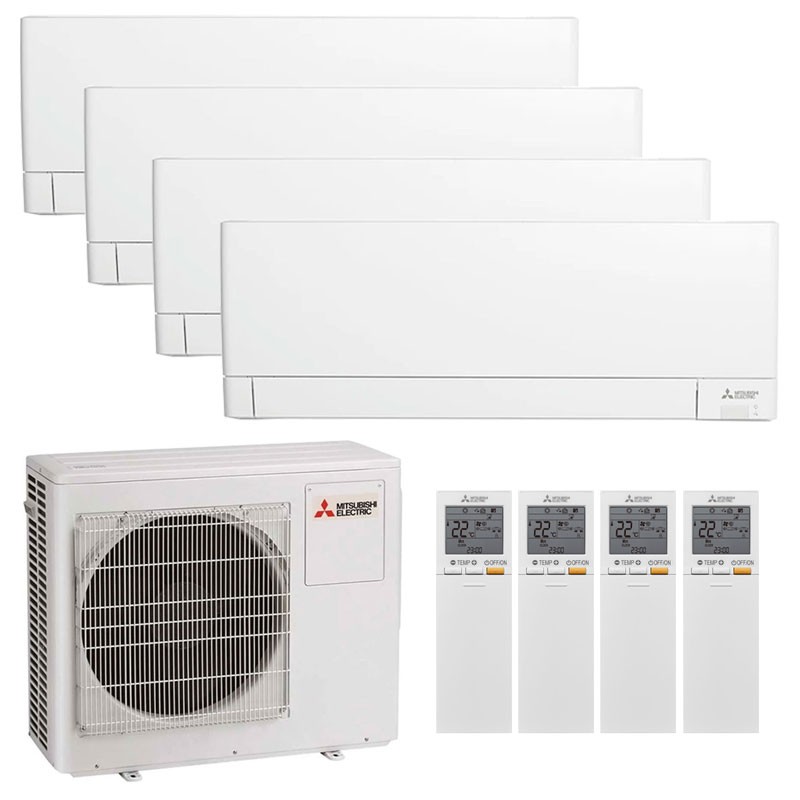

The kit includes:
-
1 Quadri Outdoor Unit 8.0kW (MXZ-4F80VF4-E1 675719)
-
2 Indoor Units 9000BTU (MSZ-AY25VGKP-E6 627801)
-
2 Indoor Units 12000BTU (MSZ-AY35VGKP-E6 646113)
-
4 Backlit infrared remote controls supplied.
The air conditioner will be delivered pre-charged with gas R32
For two rooms of approx. 35m² and two of approx. 27m²
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€6,040.97
Items Available: 4
: 2
Air conditioners of the same series
Frequently bought together
Mitsubishi Quadri-Split MSZ-AY: Refined and compact design
MSZ-AY units feature ultra-compact dimensions, with only 2 size levels for 6 different power ratings.
Thanks to careful design and the introduction of R32 refrigerant, the efficiency of the new MSZ-AY units is greatly increased, reaching A++ class in cooling and A+ class in heating in Quadri Split systems across the lineup (on a scale of A+++ to D).
The new MSZ-AY is equipped with a new installation jig. The new jig has a large central hole that makes installation easier especially with pre-set boxes.
Cleaner air with the filters of the Mitsubishi MSZ-AY
Plasma Quad Plus filter included
The Plasma Quad PLUS system is an active filtration system that can inhibit up to 99% of viruses, bacteria, mold and PM2.5 in the air, up to 98% of allergens and pollens, and up to 99.7% of dust mites and dust.
Dual Barrier Coating
With the MSZ-AY unit, Mitsubishi Electric introduces another revolutionary technology: dual barrier coating. During operation, dust and impurities introduced during air conditioning operations are deposited on internal components, especially the battery and fan, increasing the machine's power consumption by up to 18%. With Dual Barrier Coating, the internal components of MSZ-AY are treated with a second protective layer that prevents dust and impurities from being deposited even after long periods of time, reducing consumption and eliminating the need for maintenance of the unit relative to this issue.
Main functions of the Mitsubishi Multisplit
Self clean mode
The new "Self Clean" function found on MSZ-AY allows the indoor unit to dry out after the cooling click is complete, preventing the formation of mold and odor.
Without Self Clean Mode: When turned off, the air conditioner keeps small droplets of moisture inside, favoring the occurrence of mold and bad odo With Self Clean Mode: After turning off from cooling or dehumidification mode, the air conditioner activates microventilation, completely drying out any water particles and keeping the evaporator clean.
Quiet operation
Environmental comfort is also related to sound level and is important especially in bedrooms or studies. The MSZ-AY line makes it possible to ensure the ideal climate all year round with a sound level virtually undetectable by the human ear. The 18dB(A) achieved by the MSZ-AY model (sizes 25 and 35) is quieter than the noise generated by rustling leaves in the wind, making the air conditioner effectively inaudible to the occupants of the room. This is why MSZ-AY is particularly suitable for home environments such as bedrooms and living areas, where we spend most of our time and carry out our daily activities.
Night Mode Function
By activating the Night Mode function from the remote control, it is possible to set up the air conditioner for nighttime operation:
- LED brightness reduction
- Disable "beep" sound
- Reduction of outdoor unit sound emission by 3dB

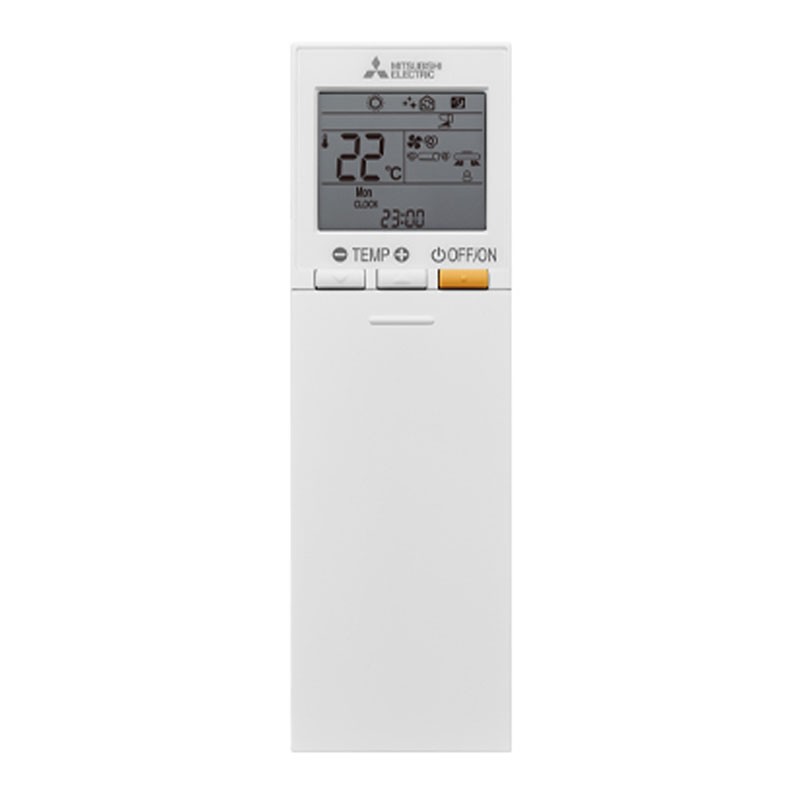

Backlit remote control
The backlit remote control allows easy viewing even at night.
Air distribution
Thanks to the presence of the motorized louver, it is possible to direct the airflow to achieve maximum comfort in the room in any operating mode (sizes 25-50 only). In addition, the horizontal flow eliminates annoying drafts to occupants.
Integrated MELCloud Wifi Control
The new MSZ-AY offers the user experience of MelCloud built into the air conditioner, allowing the user to remotely manage the main functions of the air conditioner through the Wi-Fi controller and monitor its operation and energy consumption. In addition, by means of the new integrated wifi adapter, connection with the router is even easier!
Technical specifications of the Quadri-Split Mitsubishi MSZ-AY
Indoor Units 9000BTU (2.5kW)
| Feature | Value |
|---|---|

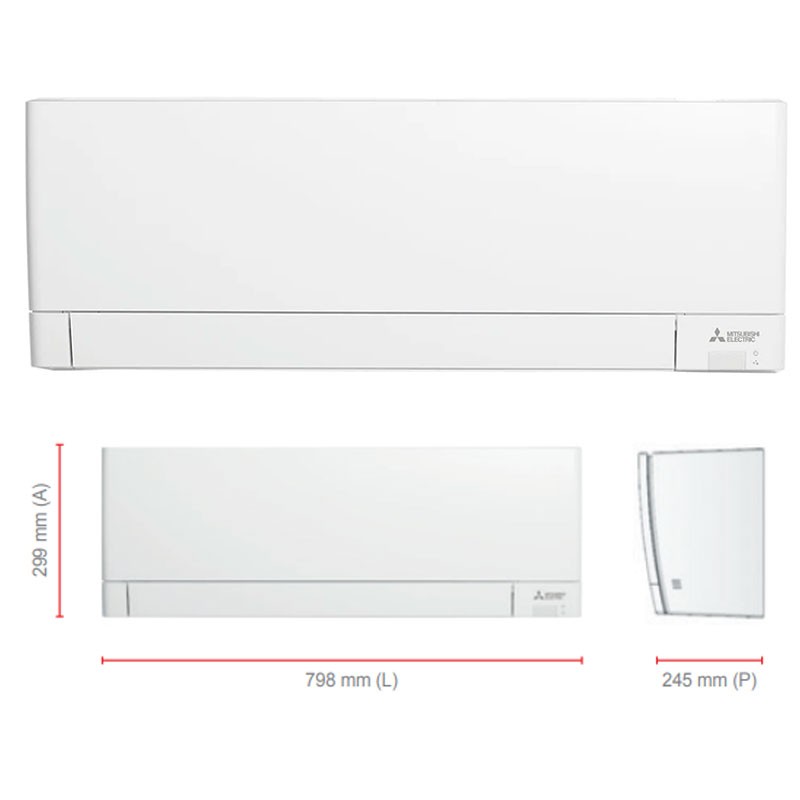

| Dimensions (H x W x D) | 299 x 798 x 245mm |
| Weight | 11 kg |
| Air flow rate Cooling | 3.6-5.0-6.3-7.8-10.5 m³/min |
| Air flow rate Heating | 4.0-5.0-6.6-8.0-11.8 m³/min |
| Sound pressure Cooling (SLo-Lo-Mid-Hi-SHi) | 18-24-30-36-42 dB(A) |
| Sound pressure Heating (SLo-Lo-Mid-Hi-SHi) | 18-24-34-39-45 dB(A) |
| Rated sound power | 57 dB(A) |
Indoor Units 12000BTU (3.5kW)
| Feature | Value |
|---|---|
| Dimensions (H x W x D) | 299 x 798 x 245mm |
| Weight | 11 kg |
| Air flow rate Cooling | 3.6-5.0-6.3-7.8-11.1 m³/min |
| Air flow rate Heating | 4.0-5.0-6.6-8.0-11.8 m³/min |
| Sound pressure Cooling (SLo-Lo-Mid-Hi-SHi) | 18-24-30-36-42 dB(A) |
| Sound pressure Heating (SLo-Lo-Mid-Hi-SHi) | 18-24-31-38-45 dB(A) |
| Rated sound power | 57 dB(A) |

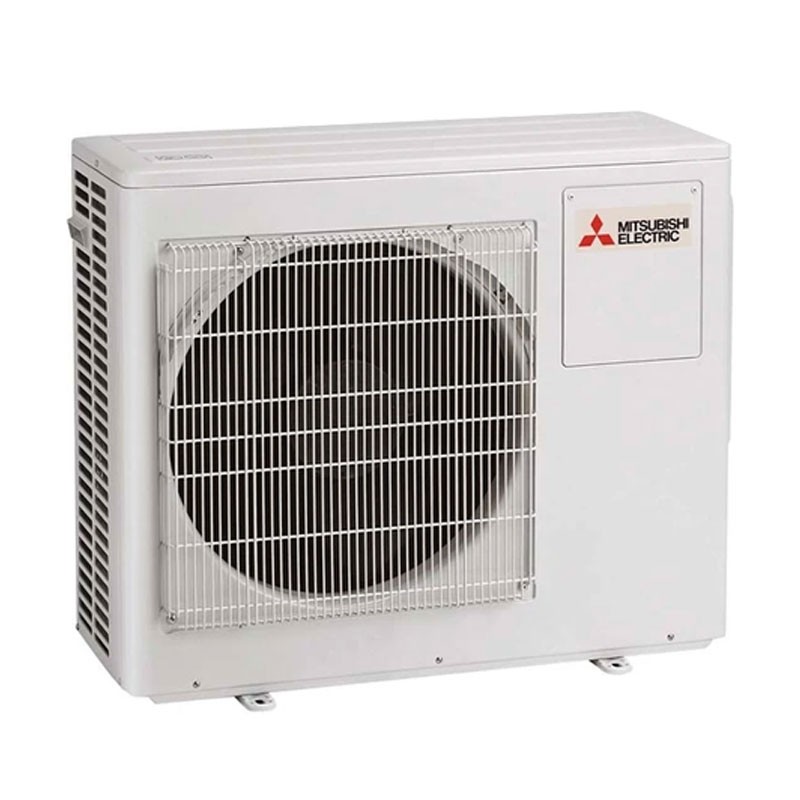

Outdoor Unit MXZ-4F80VF4
Cooling
| Feature | Value |
|---|---|
| Rated capacity (min/max) | 8,0 (3,7-9,0) |
| Rated power consumption | 2.25 kW |
| EER | 3,56 |
| SEER | 7,55 |
| Annual energy consumption | 371 kWh/a |
| Energy efficiency class | A++ |
Heating
| Feature | Value |
|---|---|
| Rated capacity (min/max) | 8.8 (3.4-11.0) kW |
| Rated power consumption | 2 kW |
| COP | 4,4 |
| SCOP | 4,07 |
| Energy efficiency class | A+ |
| Annual energy consumption | 2410 kWh/a |
Dimensions and Specifications
| Feature | Value |
|---|---|
| Dimensions (H x W x D) | 710x840x330 mm |
| Weight | 59 kg |
| Min/max sound pressure | 50 / 55 dB(A) |
| Rated sound power | 65 dB(A) |
| Maximum current consumption | 18 A |
| Liquid/Gas piping diameters | 6.35 (1/4) x 4 mm / 9.52 (3/8) x 3 mm / 12.7 (1/2) x 1 |
| Max. length (total/each branch) | 60 m / 25 m |
| Max height difference (EU below / EU above) | 15 m / (10 m) |
| Guaranteed operating range Cooling | -10 ~ +46 °C |
| Guaranteed operating range Heating | -15 ~ +24 °C |
Refrigerant
| Feature | Value |
|---|---|
| Type / Precharge | R32 / 2.4 kg |
| GWP | 675 |
| Tons CO2 Eq. | 1,620 |
There are no reviews
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 9+9+12+12 BTU
- System: Quadrisplit
- WIFI: Integrated
- Room Size: 35m²+35m²+27m²+27m²
- Energy class: A++
- Series: MSZ-AY
