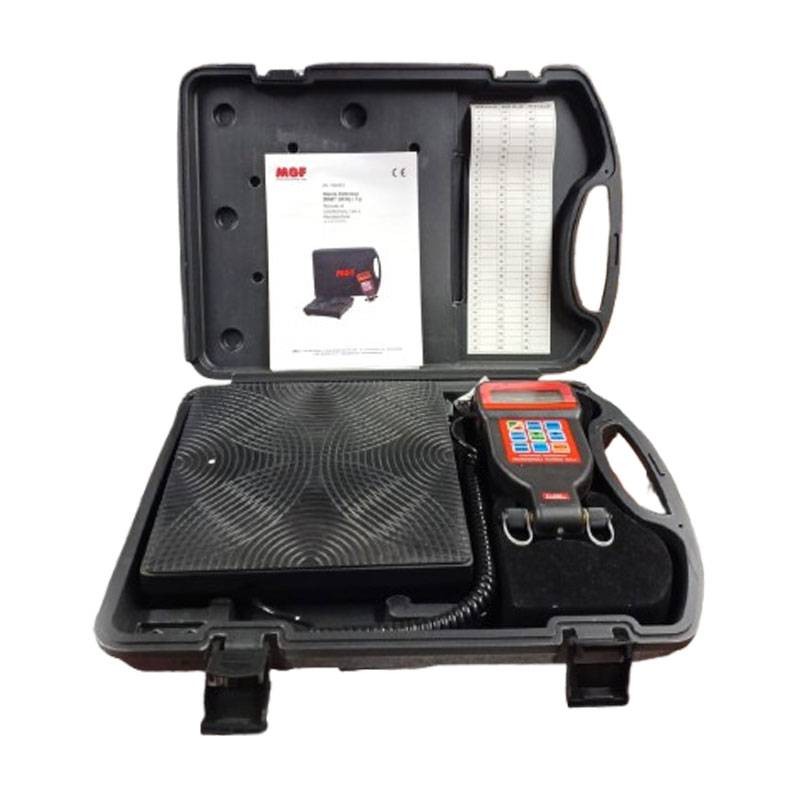

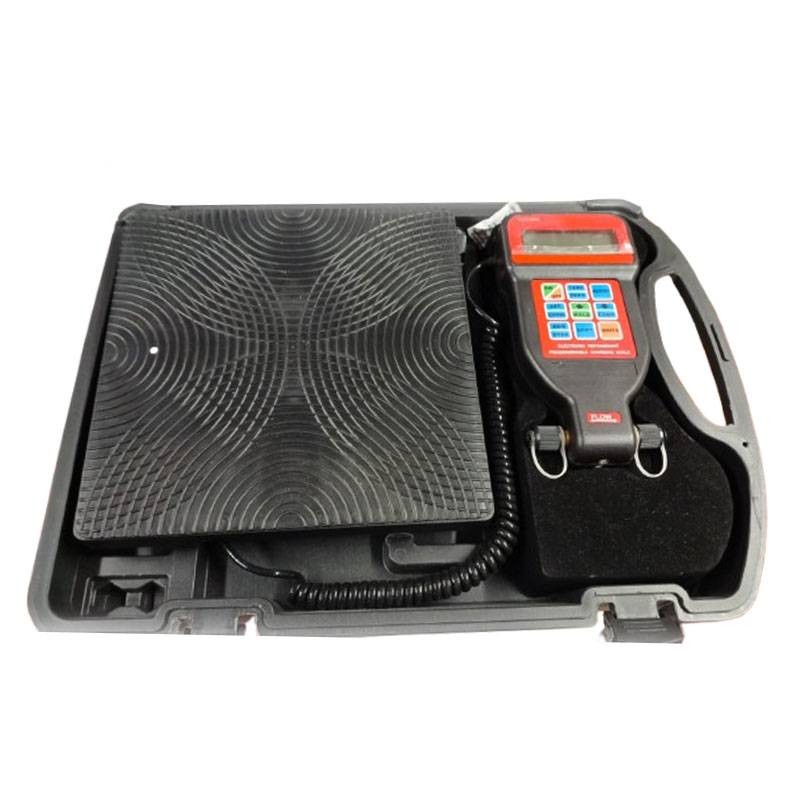

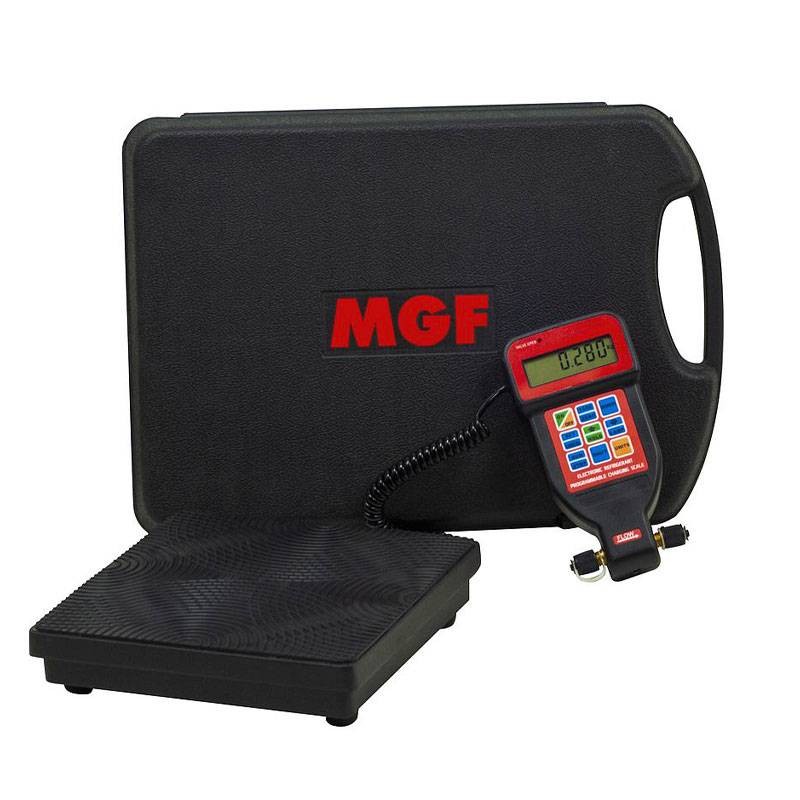

Mgf Battery Powered Smart Electronic Scale 100Kg 5gr with Display 932004
MGF 932004
MGF Smart Electronic Scale, a portable, accurate and programmable instrument for refrigerant gas loading and recovery, with memory for up to 100 programs. Designed to offer maximum accuracy during refrigerant gas loading or recovery in air conditioning or refrigeration systems, with the following features:
-
Maximum capacity: 100 kg
-
Resolution: 5 grams
-
Display: high-visibility backlit LCD
-
Storage: Up to 100 charging/recovery programs
-
Connections: 1/4- and 1/2-inch fittings for universal compatibility
-
Power supply: Battery (included)
-
Built-in safety function for automatic shutdown
€308.81
Items Available: 1
MGF Smart Scales: LCD display, built-in memory and universal connection
LCD display and smart functions
The backlit LCD display allows clear reading even in low light conditions. You can select the unit of measurement (kg, oz, lbs) according to your operational preferences. The scale is equipped with automatic power off, both for the display (after 3 minutes) and the whole system (after 10 minutes), to save energy.
You already know the practical significance of the FULL function, It indicates when the weight on the platform has exceeded the maximum threshold of 100 kg, preventing overloading.
Memory and safety during use
A highlight is the programmable memory, which can save up to 100 charge or recovery cycles, perfect for those working on multiple rigs. In addition, the automatic safety function stops charging if the battery is running low or if the unit accidentally shuts down, preventing errors or damage.
Compatibility and ease of connection
Flared 1/4- and ACME 1/2-inch fittings make this universal scale compatible with most charge manifolds and refrigerant cylinders. It is an essential tool for HVAC technicians, both in service and installation.
Technical Specifications Mgf Digital Scale
| Feature | Value |
|---|---|
| Maximum capacity | 100 kg |
| Resolution | 5 grams |
| Accuracy | ±0,5% |
| Program memory | Up to 100 |
| Display | Backlit LCD |
| Measuring units | kg / oz / lbs |
| Connections | 1/4 flared and 1/2 inch ACME fittings |
| Plate dimensions | 230x230 mm |
| Unit weight | 3.6 kg |
| Operating temperature | 0/+50 degrees |
| Storage temperature | -20/+70 degrees |
| Power supply | By batteries (included) |
| Auto power off | Yes |
| Overload display | FULL message when weight limit is exceeded |
There are no reviews
Data sheet
- Type: Refrigerant scales
