Multifunction Uniks KINGTEST to certify electrical systems KINGTEST
UNK KINGTEST
8052461740775
Multifunction Uniks KINGTEST Touch Screen to test and certify electrical systems according to CEI 64-8 and TEST ON EV.
€3,037.80
Items Available: 2

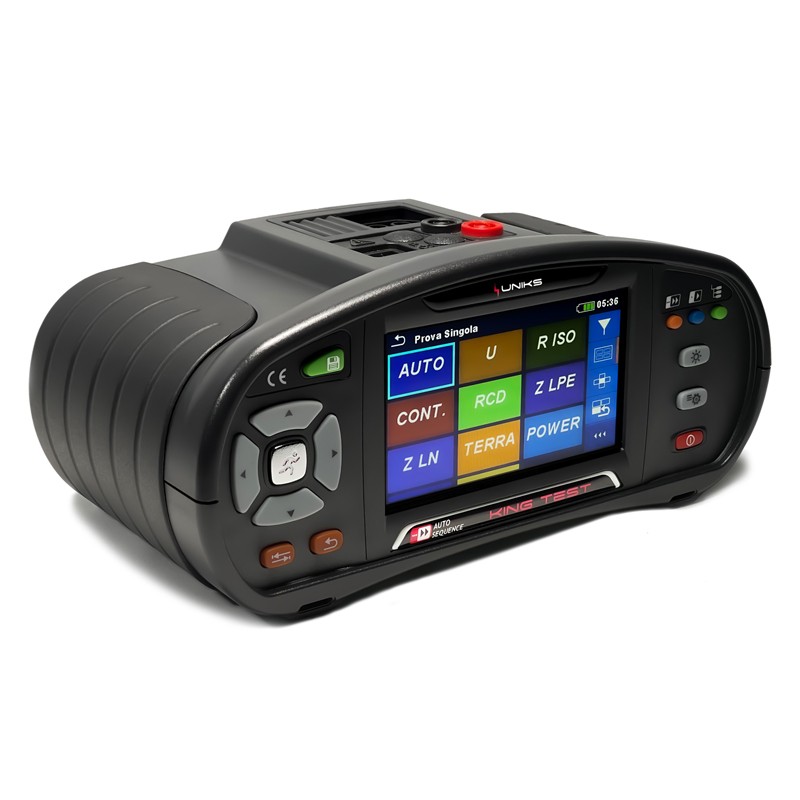

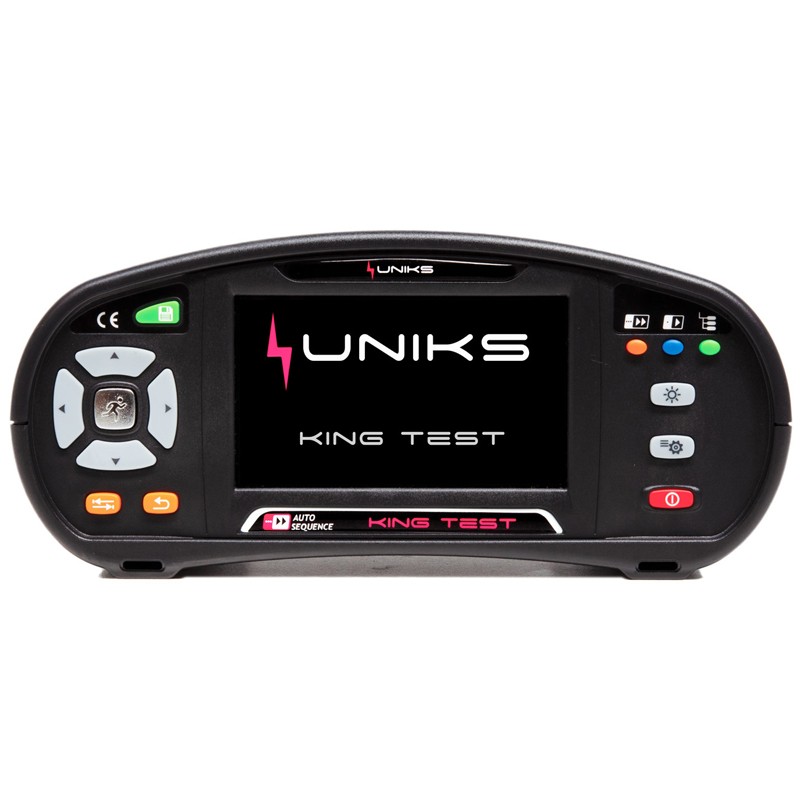

Large color capacitive touch screen display (480 x 272 pixels ) designed for verifiers and certifiers according to IEC 64-8. Thanks to its design, the KINGTEST can be used over the shoulder, and through the Fast Lead remote tip, it is possible to move freely between measurements without the inconvenience of having the instrument in the hand.
It performs all the required measurements of the electrical safety standard, offering negative or positive results depending on the local standard.
- And it is equipped with AUTO SEQUENCE function, which is patented and allows you to perform all tests independently and easily by being guided by the instrument
- Built into the instrument are various types of automatic sequences depending on the type of electrical system (TT,TN,IT) or type of measurement, (example of an automatic sequence 1*Line Impedance 2*RCD Test 3*F-N, N-Pe and F-Pe Insulation Test).
Uniks KINGTEST performs Testing of Type A, AC and F differentials up to 1A in General or Selective modes and Type B, B+ and EV differentials for testing electric charging stations.
Performs Differential Test in 4 modes:
- RCDt Differential Trip Time Test
- RCD I Ramp Test to detect at which current the differential trips
- Uc Dedicated Test for Contact Voltage
- AUTO Complete test of differentials in x1 , x5 , x1/2 and RAMPA sequence with 180° phase reversal.
Functions:
Electric power systems:
- Power plants
- Distribution
- Safety
- Connections / bonding
- Insulation analysis.
Building management:
- Public Safety / Quality Areas.
- Fire Safety.
Industrial systems:
- LV Installations Safety / Quality
- Electrical panels / controls
- Maintenance / troubleshooting
- 3-phase system testing.
Special installations:
- Construction sites
- Rail systems
- Ships / Boats / Marine Posts
- Fire department vehicles
- Military / police vehicles
- Mobile LV generator units
- Medical locations
- Filming / audio rooms
- Installations LV Security
- Electrical panels / controls
- Maintenance
- Testing of three-phase system.
Features:
- Power supply 6 x 1.5 V Ni-MH batteries, AA
- Battery life 9h
- Display 4.3 color display 480 x 272 pixels TFT with touch screen
- Memory 8 GB internal memory
- PC interface RS232, USB 2.0 Hi Speed
- Safety IEC/EN 61010-1, double insulation
- Operating Temperature 0 ÷ 40°C
- Measurement category 600V CAT III, 300V CAT IV
- Pollution degree 2
- Reference standard IEC/EN 61557-1-2-3-4-5-6-7.

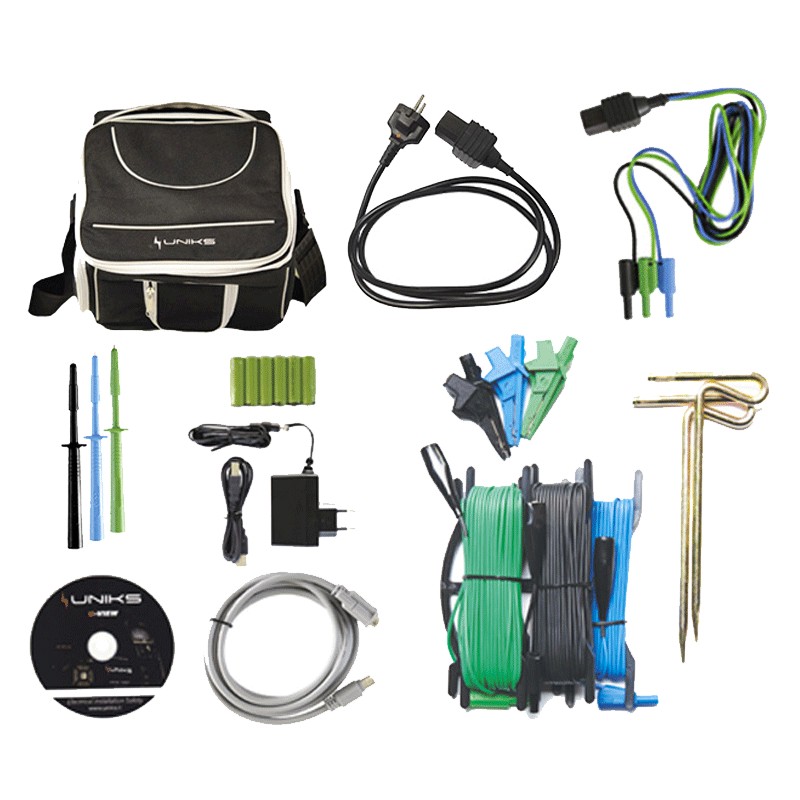

Supplied accessories:
- A1011: Set of test leads, 3 x 1.5 m
- A1014: Black ferrule
- A1015: Blue ferrule
- A1062: Green toe cap
- A1017: RS232 communication cable
- A1135: 12V / 1.2 A power adapter
- A1171: USB/RS 232 converter with 1 m fixed cable
- A1309: Green Crocodile Clip
- A1310: Blue Crocodile Clip
- A1013: Clip to Crocodile black
- S2026: Earth Test Set 20 m
- USB Cable
- Soft bag
- Soft neck belt
- Rechargeable batteries 6 x NiMH, type AA
- PC SW U-View
- User's manual and Manual on CD
- Calibration certificate
There are no reviews
Data sheet
- Type: Multifunctional Tools
