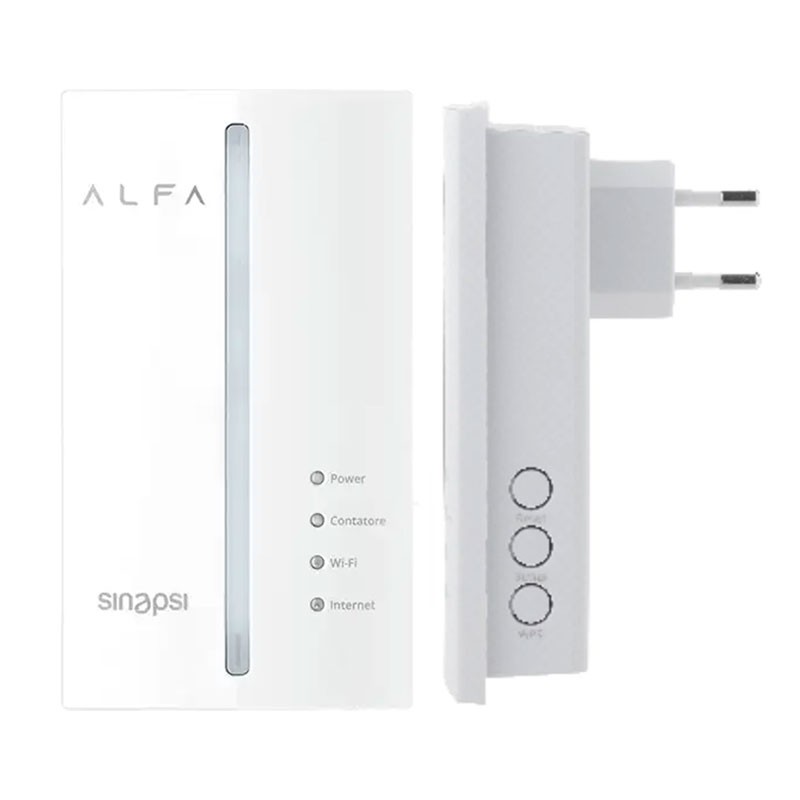

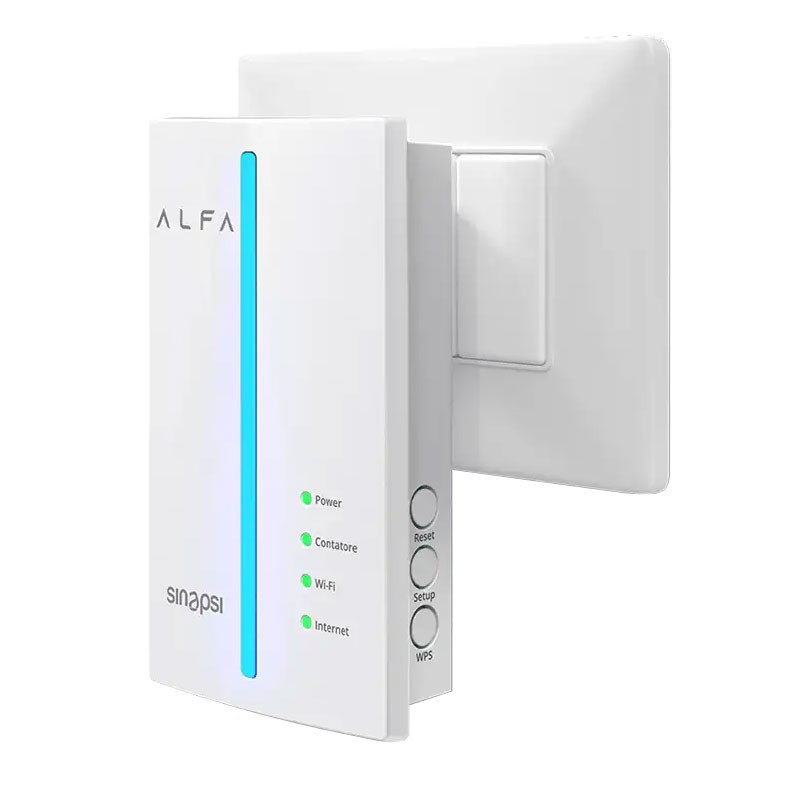

Elcart Sinapsi Alpha Wifi Electricity Consumption Monitoring Device 360700000
ERT 360700000
8029564610441
Elcart Sinapsi Alfa Electricity Consumption Monitoring Device connects to Open Meter 2.0 meter via PLC-C, sends real-time data to smartphone via Wi-Fi, with the following features:
-
Compatible with Open Meter 2.0 meters (including three-phase)
-
PLC-C connection over CHAIN 2 channel and integrated Wi-Fi
-
Direct plug into a home socket, no panel installation
-
Dedicated app with consumption history, graphs and notifications
-
Notifications on exceeding thresholds, blackouts and tariff changes
-
Also works with photovoltaic systems
-
Please note the device is only compatible with Open Meter 2.0 electricity meters for the Italian market
€139.67
Items Available: 2
: 1
ALFA intelligent device for monitoring household electricity consumption
The ALFA device is the new frontier of home energy management, designed to dialogue directly with 2.0 Open Meter electricity meters (including three-phase), without the need for complex installations. Simply plug it into a standard power outlet and start monitoring consumption in real time.
Direct connection with the meter via PLC-C
ALFA communicates with the meter by taking advantage of PLC-C (Power Line Communication) technology through the CHAIN 2 channel, collecting accurate data on consumption, voltages and power variations. The data is then transmitted via Wi-Fi to the dedicated mobile app or viewed via the web with the ALFA WEB function.
Advanced monitoring and smart notifications
In addition to displaying consumption by time slot, the app provides an intuitive interface to monitor:
-
Voltage peaks and troughs
-
Alerts of impending disconnection
-
Power thresholds exceeded
-
Change of supplier or tariff plan
With beeps and a multicolored light bar, ALFA alerts you in real time of impending threshold exceedances, allowing you to take action to prevent supply disconnection.
Compatibility with photovoltaic systems
ALFA can also detect energy flows from the photovoltaic system, providing useful information on self-consumption and optimizing the use of the energy produced, to save on utility bills and reduce environmental impact.
Simple and immediate installation
No technical intervention is needed: simply plug ALFA into a socket, connect to the Wi-Fi network, and enter the POD code of your utility (shown on your bill). Configuration requires that the account corresponds to the owner of the supply.
Technical Characteristics Elcart Wifi Device
| Parameter | Value |
|---|---|
| Power supply | 230V AC |
| Connection | Wi-Fi + PLC-C |
| Meter communication channel | CHAIN 2 |
| Compatibility | Open Meter 2.0 meters (also three-phase) |
| Protection | IP20 |
| Flammability rating | UL94-V0 |
| Dimensions (WxDxH) | 74x71x128 mm (including plug) |
| Functions | Consumption monitoring, notifications, photovoltaic analysis |
| App | Dedicated for smartphones + web platform ALFA WEB |
There are no reviews
Data sheet
- Type: Energy Monitoring
