Siemens residual current circuit breaker 1P+N 20A 30mA 10kA 2M F-type 5SU13544KK20
SIE 5SU13544KK20
4001869460864
Siemens RCBO 5SU13544KK20 residual current circuit breaker with the following characteristics:
- Number of poles: 1P+N
- Rated current: 20 Amps
- Voltage: 230V AC
- Rated residual current: 30mA
- Rated short-circuit capacity: 10kA
- Type of differential F
- Number of modules: 2
Provides increased protection for electronic circuits, reducing false tripping and improving system reliability.
€139.06
Items Available: 3
: 2
The residual current circuit breaker is a device that combines magnetothermal protection against overloads and short circuits with differential protection against earth leakage currents.
The Siemens F-type residual current circuit breaker is an advanced device that combines protection against overloads, short circuits, and leakage currents to earth.
Compared with AC and A types, the F type is designed to detect high-frequency alternating, pulsating and mixed currents, making it ideal for systems that include equipment with inverters or variable-frequency motors, such as modern washing machines, pumps and air conditioners.
Features:
- Number of poles: 1P+N
- Overvoltage category: III
- Pollution degree: 2
- Voltage type of operating voltage: AC
- Degree of protection: IP20, if the distribution board is installed, with conductors connected

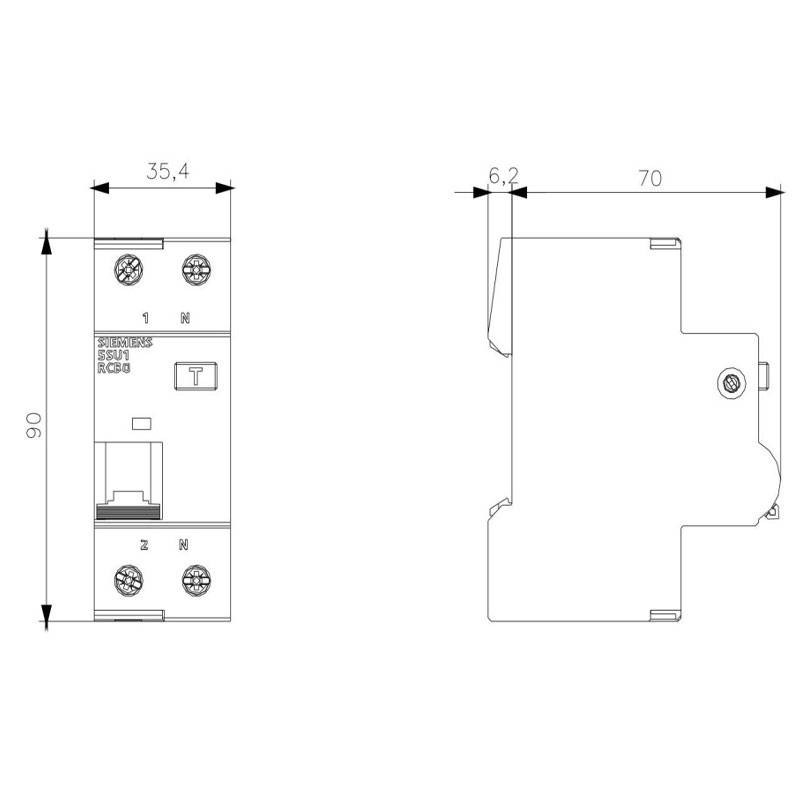

- Height: 90 mm
- Width: 36 mm
- Depth: 77 mm
- Number of modular width units: 2
- Ambient temperature during operation: -25/+55 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Modules: 2
- Poles: 1P+N
- Breaking capacity: 10KA
- RCD Type: F
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
