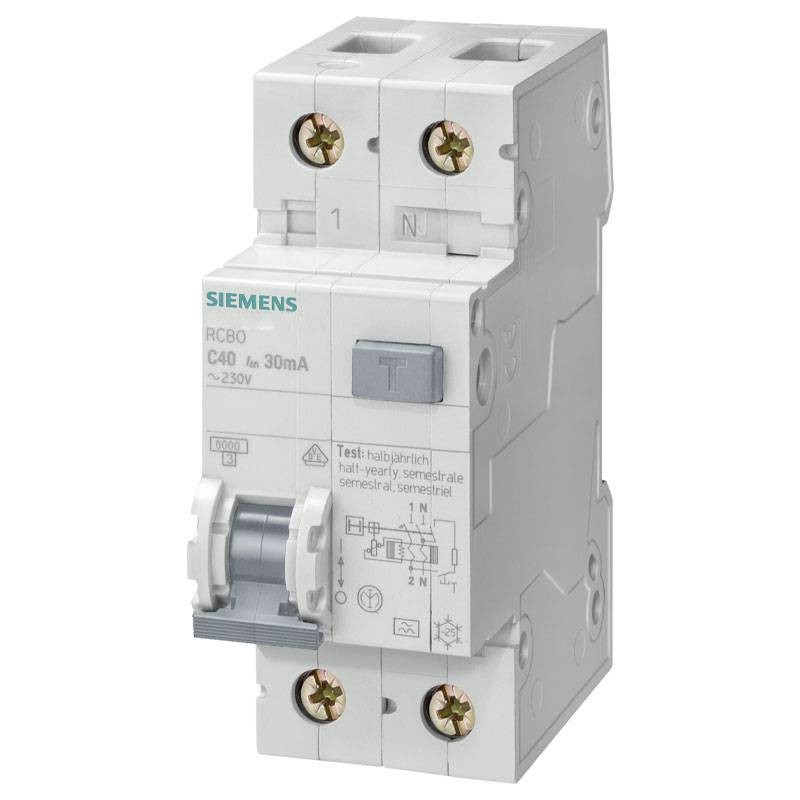

Siemens residual current circuit breaker 1P+N 20A 300mA 6kA 2M AC-Type 5SU16561KK20
SIE 5SU16561KK20
4001869307268
Siemens 5SU16561KK20 residual current circuit breaker with the following characteristics:
- Number of poles: 1P+N
- Rated current: 20 Amps
- Voltage: 230 V AC
- Rated residual current: 300 mA
- Rated short-circuit capacity: 6 kA
- Type of differential: AC
- Number of modules: 2
This type of switch does not detect unidirectional pulsating currents, so it is suitable for simpler and less complex applications than Type A.
€78.14
Items Available: 21
: 10
Further Siemens RCBO combinations:
The residual current circuit breaker is a device that combines magnetothermal protection against overloads and short circuits with differential protection against earth leakage currents.
Siemens AC-type residual current circuit breaker is a device that combines overload and short-circuit protection with differential protection against pure alternating type (AC) leakage currents to earth.
It is particularly suitable for conventional electrical systems without advanced electronic devices, such as lights and standard electrical outlets. This type of breaker does not detect unidirectional pulsating currents, so it is suitable for simpler and less complex applications than Type A.
Features:
- Number of poles: 1P+N
- Overvoltage category: III
- Pollution degree: 2
- Voltage type of operating voltage: AC
- Degree of protection: IP20, if the distribution board is installed, with conductors connected

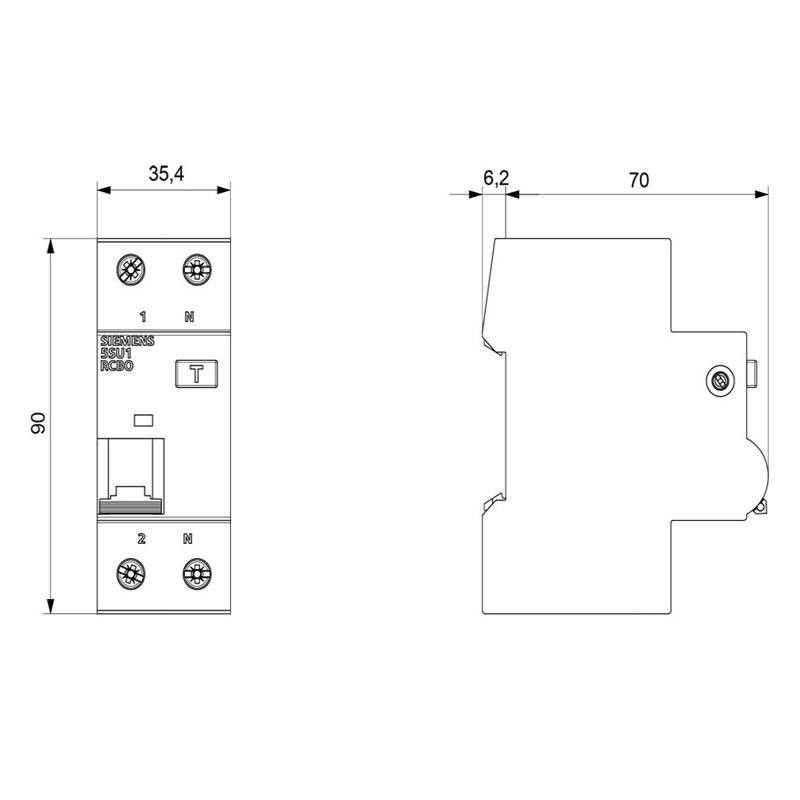

- Height: 90 mm
- Width: 36 mm
- Depth: 77 mm
- Number of modular width units: 2
- Ambient temperature during operation: -25/+55 degrees
- Ambient temperature during storage: -40/+75 degrees
There are no reviews
Data sheet
- Modules: 2
- Poles: 1P+N
- Breaking capacity: 6KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
