Siemens RCBO 6A 1P+N 4.5 kA 30mA A Curve C 2M 5SU13537KK06

Siemens
Siemens
SIE 5SU13537KK06 4001869306414

Siemens Residual current operated Circuit Breaker, 3-in-1 protection device for electrical systems: short circuits, overloads and leakage, provides maximum safety for domestic and commercial environments, with the following features:

  • Rated current: 6 amps

  • Number of poles: 1P+N

  • Operating voltage: 230/240V AC

  • Interrupting capacity: 4.5 kA

  • Differential current: 30 mA

  • Intervention curve: C

  • Differential type: A

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens RCBO 6A 1P+N 4.5 kA 30mA A Curve C 2M 5SU13537KK06
€62.75
€62.75

€62.75
Tax included
Calculate shipping cost
Items Available: 74
Further availability of the manufacturer
€62.75

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Siemens RCBO complete in one device

The Siemens residual current operated circuit breaker combines overload, short-circuit and leakage current protection in one compact module, ideal for residential and tertiary installations. Designed to the latest IEC EN 61008-1 standards, it is a reliable and compliant choice for the protection of people and property.

Integrated features

C curve: balanced protection for mixed loads.

Curve C allows a tripping time suitable for both resistive and inductive loads, reducing the risk of untimely trips.

Type A differential circuit breaker: Protects against alternating and pulsating differential currents, even with unidirectional components, for superior safety.

Triple protection:

  • Magnetic: against short circuits

  • Thermal: against overloads

  • Differential: against earth leakage (30 mA)

Ease of installation and reliability

The device occupies 2 DIN modules, facilitating integration into existing electrical panels. Due to its halogen-free material construction, it is also suitable in environments where low toxic smoke emission is required in case of fire. Mechanical durability guaranteed for more than 10,000 operation cycles.

Recommended applications

  • Civil electrical panels

  • Offices and commercial activities

  • Rooms with mixed loads (outlets + lighting)

  • Electrical installations where compact integrated protection is required

Siemens RCBO Technical Specifications

Technical Data

Feature Value
Rated current 6A
Number of poles 1P+N
Voltage 230/240V AC
Differential current 30 mA
Breaking capacity 4.5 kA
Tripping curve C
Type of differential A
Number of modules 2


Installation and Protection

Feature Value
Degree of protection IP20
Maximum cable cross-section 0.75 / 35 mm²

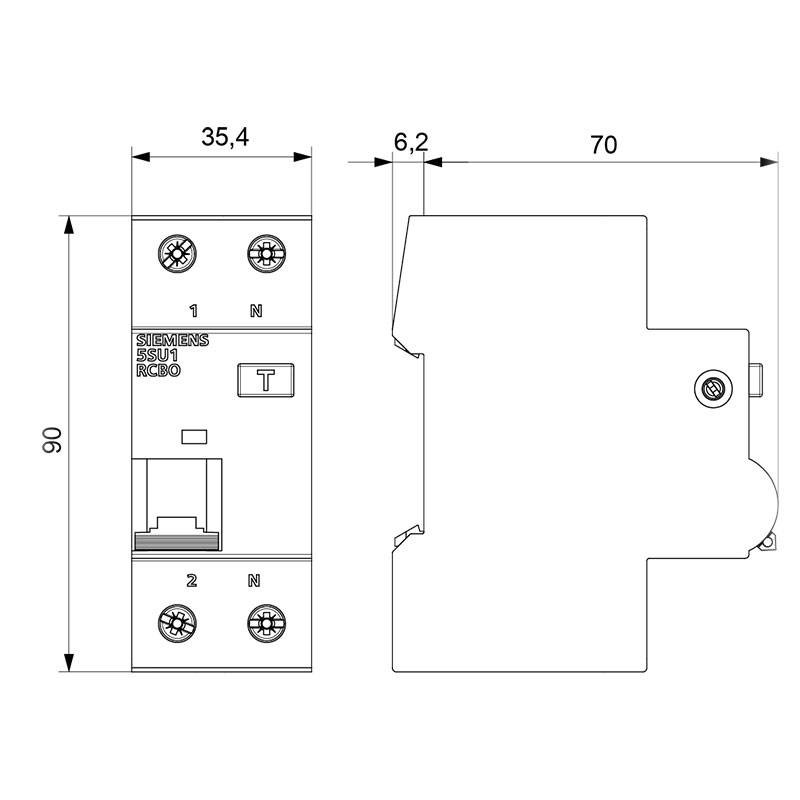

Dimensions

Feature Value
Height 90 mm
Width 36 mm
Depth 77 mm
Recessed depth 70 mm

There are no reviews

Data sheet

Voltage:
230/240VAC
Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
A
Differential current :
0.03A
Amps:
6A
Circuit Protections:
RCBO
