Siemens Circuit Breaker Kit 16A 1P+N 30MA AC 4.5KA 5SV13131KK16
KIT SV13131K16

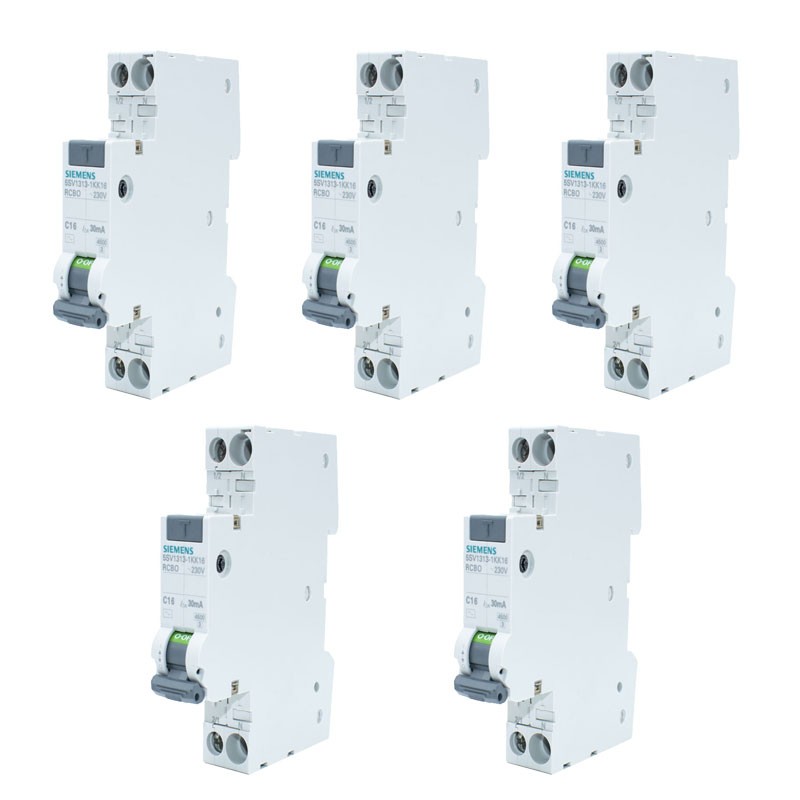

Siemens kit with 5 Circuit Breaker, combines the functions of a circuit breaker and circuit breaker in a single device. Compact, reliable, and easy to install, these devices are ideal for home systems and small electrical panels, with the following features:
-
Rated current: 16 A
-
Number of poles: 1P+N
-
Differential type: AC
-
Tripping curve: C
-
Rated voltage: 230/240 V AC
-
Interrupting capacity: 4.5 kA
-
Rated differential current: 30 mA
-
Number of Modules: 1
-
Degree of protection: IP20 (in panel)
With the kit you save compared to individually purchased items
€118.22
Items Available: 581
: 523
Further Siemens RCBO combinations:
Safety and protection kit in one module

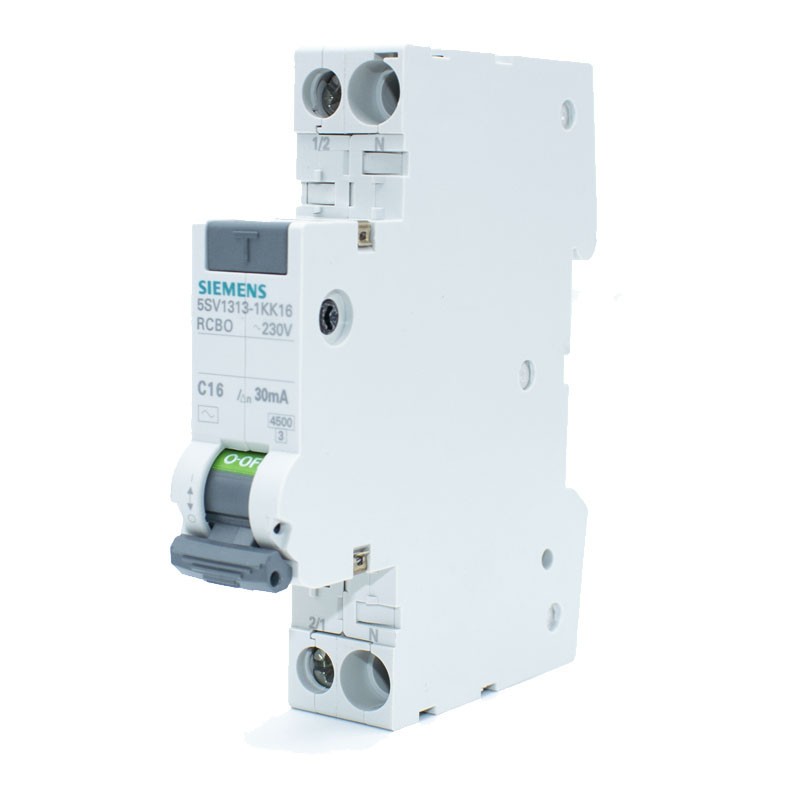

The Siemens 5SV13131KK16 differential circuit breaker combines:
-
Magnetic protection for short circuits (fast tripping)
-
Thermal protection for overloads (progressive tripping)
-
Earth leakage differential protection (earth leakage circuit breaker).
This 3-in-1 solution is perfect for ensuring the safety of people and electrical devices, preventing serious damage, fire or electrocution.
Curve C, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems. AC-type differential circuit breaker tripping is assured for suddenly or slowly increasing applied sine-sine differential alternating currents (IEC EN 61008-1).
Simple and versatile installation
Thanks to the DIN 1-module format and low weight, installation in the control cabinet is simple, fast and compatible with all standard cable trays. The free mounting position and 70 mm recessed depth make it suitable even for tight spaces.
Technical characteristics Siemens Kit
| Parameter | Value |
|---|---|
| Rated current (In) | 16 A |
| Differential type | AC |
| Tripping curve | C |
| Rated voltage | 230/240V AC |
| Interrupting capacity (Icn) | 4.5 kA |
| Rated differential current | 30 mA |
| Frequency | 50 Hz |
| Protection | Short circuit, overload, leakage |
| Installation | DIN rail |
| DIN modules | 1 |
| Poles | 1P+N |
| Height | 90 mm |
| Width | 18 mm |
| Depth | 77 mm |
| Recessed depth | 70 mm |
| Clamp tightening torque | 1.2 to 2 Nm |
| Degree of protection | IP20 (if installed in panel) |
Tutto perfetto, prodotti,imballaggio, spedizione e pagamento
Todo correcto. Envío muy rápido. Buena relación precio-calidad.
Perfecto. Tal y como se describe. Muy buena calidad.
Veloci e precisi. Prodotti subito disponibi ed evasione in tempi record dell'ordine.
Compact safety switch, very handy for small cabinet's.
Tutto come da descrizione. Prodotto di ottima fattura!
OTTIMO PRODOTTI Magnetotermici differenziali Siemens
Prodotti buoni ma ritardo sulle consegne
Ottimo prodotto, qualità dei materiali elevata
Data sheet
- KIT: Kit RCBO
- Modules: 1
- Poles: 1P+N
- Breaking capacity: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 16A
- Circuit Protections: RCBO
