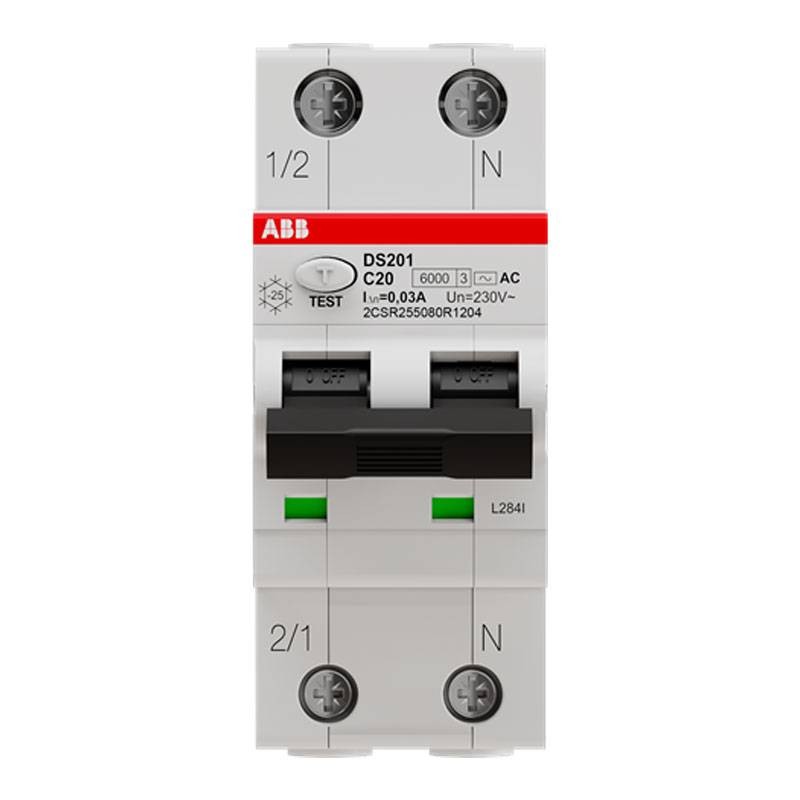

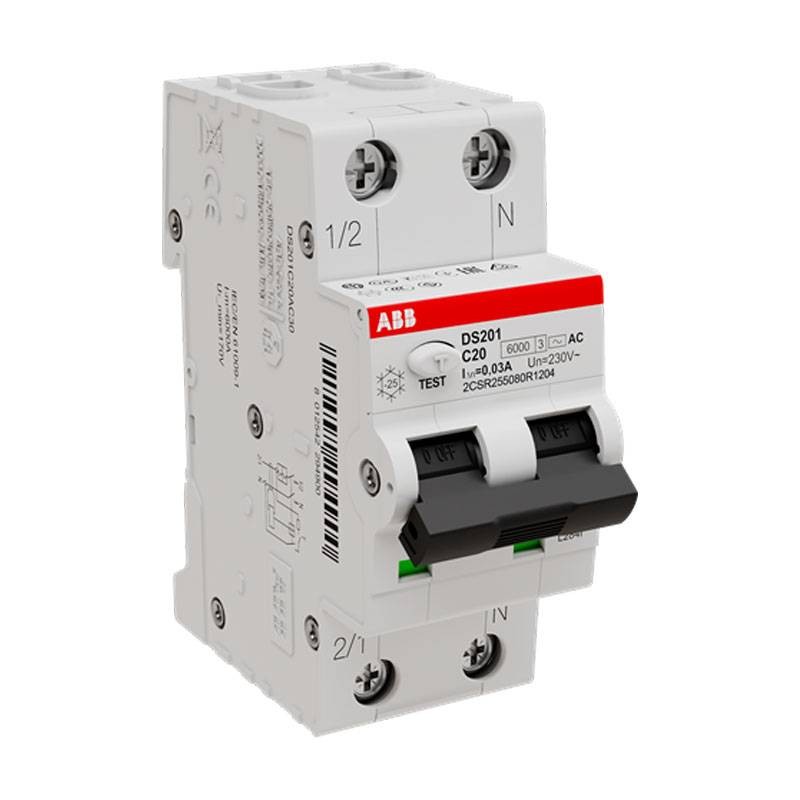

ABB residual current circuit breaker 1P+N 20A 30mA 6KA AC Type 2 Modules DS201C20AC30

Abb
Abb
ABB DS201C20AC30 8012542049111

ABB residual current circuit breaker with the following features:



  • 2 modules
  • DIN connection (universal for any switchboard on the market)
  • Number of poles: 1P+N
  • Rated current: 20 amps
  • Rated residual current 30mA
  • Rated voltage 230 Vac
  • Rated short-circuit capacity: 6kA
  • Type AC
Do you have questions about this product or did you not find what you were looking for? Ask us!
ABB residual current circuit breaker 1P+N 20A 30mA 6KA AC Type 2 Modules DS201C20AC30
€64.14
€64.14

€64.14
Tax included
Calculate shipping cost
Items Available: 20
Further availability of the manufacturer
€64.14

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The residual current circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.




The residual current circuit breaker in the electrical system integrates three different protections:

  • the magnetic one for short circuits that can endanger an entire building with the danger of fire
  • the thermal one for overloads in the supply of electricity (for example, more than one appliance in operation)
  • the differential one proper to the earth leakage circuit breaker, which protects the subject from a current leakage




The AC type residual current circuit breaker the tripping is ensured for suddenly or slowly increasing applied sine differential alternating currents.




Characteristics:

  • Rated insulation voltage (Ui): 500 V
  • Dielectric proof voltage: 2 kV
  • Rated primary impulse withstand voltage: 4 kV
  • Type of input voltage: alternating current
  • Rated extreme short-circuit capacity (Icu): 10kA
  • Rated service short-circuit capacity (Ics): 7.5 kA
  • Frequency (f): 50/60 hz
  • Rated frequency (f): 50/60 hz
  • Power loss: 3.6 W
  • Power supply voltage connection: Arbitrary
  • Contact position indication: Red ON / Green OFF
  • Energy limitation class: 3
  • Overvoltage category: III
  • Tightening torque: 2.8 Nm
  • Type of screw terminal: bidirectional failsafe cylinder lifting terminal
  • Cable stripping length: 12mm
  • Ambient temperature: -25...55 °C
  • Ambient temperature: Operating -25...55 °C
  • Ambient air reference temperature:30 °C
  • Degree of protection: IP20
  • Pollution degree: 2
  • Product width: 35 mm
  • Product height: 85 mm
  • Product depth: 69 mm
  • Built-in depth: 69 mm
  • Weight: 200 grams

There are no reviews

Data sheet

Voltage:
230VAC
Modules:
2
Poles:
1P+N
Breaking capacity:
6KA
RCD Type:
AC
Differential current :
0.03A
Amps:
20A
Circuit Protections:
RCBO
