Abb Residual current circuit breaker 20A 2P 30mA AC 6KA DS202CRC20AC30
ABB DS202CRC20AC30
4022903033530

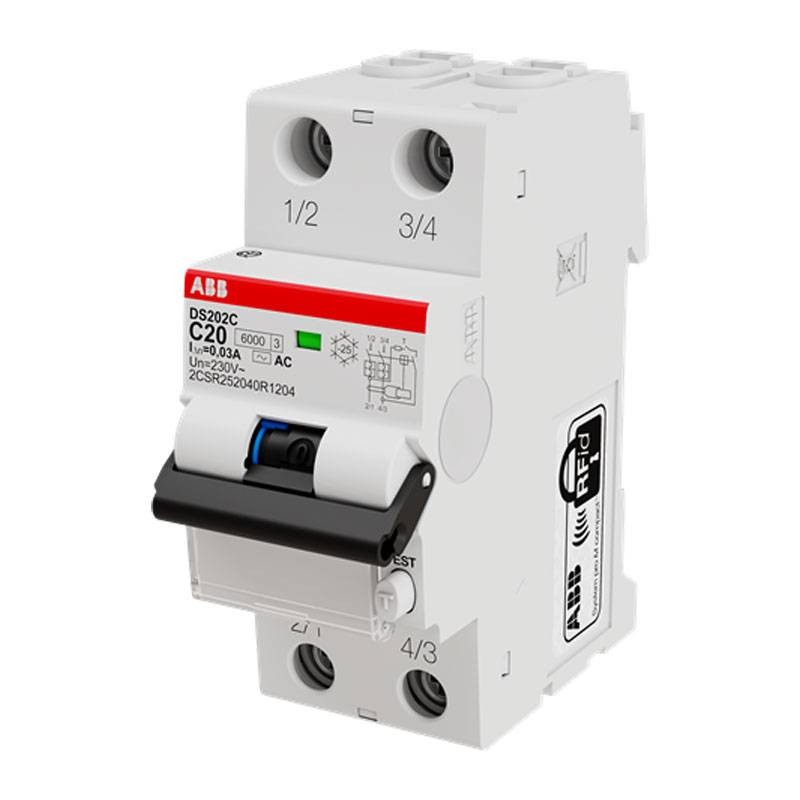

Abb DS202CR C20 AC30 Residual current circuit breaker:
- Rated current 20A
- 2 Poles
- Rated residual current 30mA (0.03)
- Type AC
- C curve
- 2 Modules
- Rated short-circuit power 6KA
- AC Input Voltage Type
€70.66
Items Available: 58
: 3
The residual current circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one, and in case of need it interrupts the electric current.
The residual current circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.
The residual current circuit breaker in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire;
- the thermal one for overloads in the power supply (e.g., more than one appliance in operation);
- the differential one proper to the circuit breaker, which protects the subject from a current leakage
Curve C, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.
The AC type differential circuit breaker the tripping is ensured for suddenly or slowly increasing applied sine differential alternating currents (IEC EN 61008-1).
The RCBO DS202CR series is a 2P device in two modules for protection of single-phase end-user circuits against overload and short-circuit currents. Protection against the effects of alternating and direct pulsating sinusoidal earth fault currents. Protection against indirect and additional contacts. Final protection against direct contacts.
Characteristics:
- Reference standards: IEC/EN 61009-1 IEC/EN 61009-2-1
- Rated operating voltage: according to IEC 60898-1 230 V
- Rated insulation voltage (Ui): according to IEC/EN 60664-1 440 V
- Impulse withstand voltage (Uimp): 4 kV
- Rated extreme short-circuit capacity (Icu): 10 kA
- Rated service short-circuit capacity (Ics): 6 kA
- Maximum Surge Current: 0.25 kA
- Rated frequency (f): 50 Hz
- Power Loss: 5.04 W
- Energy limitation class: 3
- Electrical Resistance: 10000 operations
- Mechanical Resistance: 20000 operations
- Fault indication: Blue flag on the window
- Operating characteristic: Instantaneous
- Overvoltage Category: III
- Position of neutral terminals: Right Left
- Tightening torque: 4 Nm
- Connection capacity: Busbar 1010 mm² - Flexible 1...25 mm² - Rigid Solid 135 mm²
- Nominal cross-section: 1 - Solid core 1 35 mm² - 4 - Multi-Wired 1 25 mm²
- Wire stripping length: 11 millimeters
- Ambient temperature: Operating -5 55 °C
- Degree of protection: IP20
- Pollution degree: 3
- Dimensions: Product width: 36 millimeters - Product height: 86 millimeters - Product depth: 72 millimeters
- Product net weight: 0.220 kg
- Built-in depth (t2): 72 millimeters.
There are no reviews
Data sheet
- Modules: 2
- Poles: 2P
- Curve: C
- Breaking capacity: 6KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
