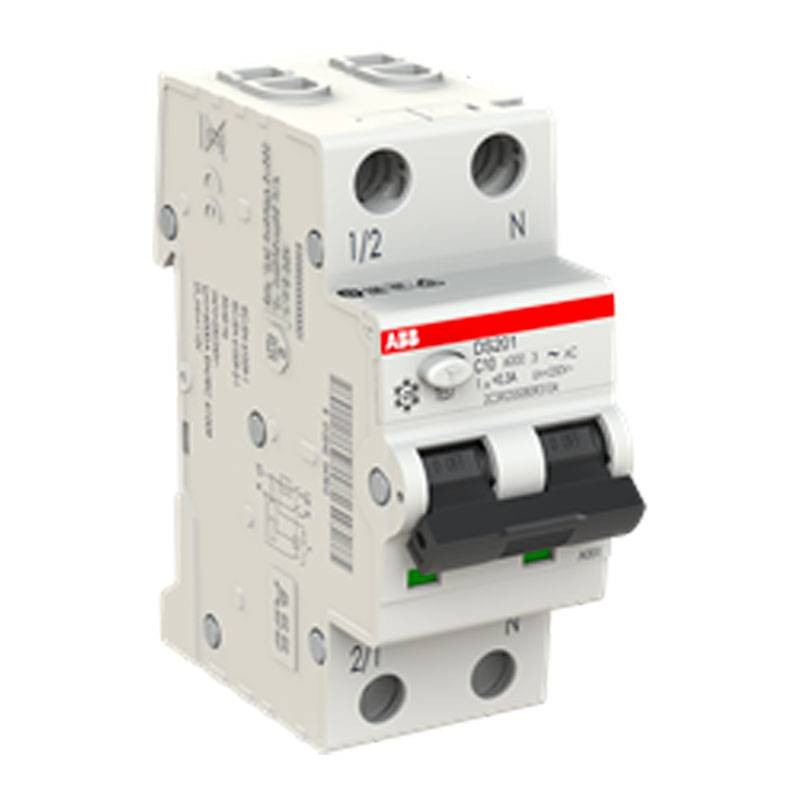

Abb Residual Current Circuit Breaker 1P+N 20A 6kA Type A Curve C 30mA DS201C20A30

Abb
Abb
ABB DS201C20A30 8012542738510

Abb DS201 C20 A30 Residual Current Circuit Breaker combines protection against overloads, short circuits and current leakage, ensuring safety and efficiency in electrical systems. Ideal for residential, commercial and industrial applications, with the following features:

  • Rated current: 20 amps

  • Number of poles: 1P+N (phase + neutral)

  • Tripping curve: C

  • Type of differential current: A (protects against unidirectional and pulsating leakage currents)

  • Rated residual current: 30 mA

  • Rated breaking capacity: 6 kA

  • Mounting: DIN rail for quick installation

  • Degree of protection: IP20/IP40

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb Residual Current Circuit Breaker 1P+N 20A 6kA Type A Curve C 30mA DS201C20A30
€80.52
€80.52

€80.52
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€80.52

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Abb residual current circuit breaker 1P+N 20A 6kA Type A curve C 30mA

The residual current circuit breaker offers double protection:

  • Magnetothermal, which trips in case of overloads and short circuits up to 6kA

  • Differential, which protects against current leakage above 30mA, preventing electrocution hazards

Curve C ensures optimal tripping for circuits with moderate loads such as lighting, electrical outlets and small motors.

Versatility and Applications

Due to compliance with safety standards and its ability to operate with a voltage rating of 170-264V AC, the circuit breaker is ideal for:

  • Residential installations (homes, apartments)

  • Commercial buildings (stores, offices, public places)

  • Industrial sector (electrical panels, automation, machinery)

The 30 mA differential protection makes it indispensable for the safety of people, while the 6 kA breaking capacity ensures reliable performance even in case of short circuits.

Compact Design and Simple Installation

The circuit breaker features a compact design with a width of 2 DIN modules (35 mm), facilitating installation in electrical panels.

The IP20/IP40 degree of protection makes it resistant to dust and external agents, suitable even for demanding environmental conditions (-25/+55 degrees).

Main Features

FeatureValue
Rated current 20 A
Number of poles 1P+N
Rated residual current 30 mA
Rated short-circuit capacity 6 kA
Input voltage type A
Curve C
Rated insulation voltage 170/264 V
Rated frequency 50/60 Hz
Degree of protection IP20/IP40
Width in number of modular intervals 2


Performance and Safety

FeatureValue
Rated extreme short-circuit capacity 10 kA
Rated conditional short-circuit current 10 kA
Rated service short-circuit capacity 7.5 kA
Impulse withstand voltage 4 kV
Dielectric proof voltage 2 kV
Power loss 5,7 W
Energy limitation class 3
Electrical resistance 10000 cycles
Mechanical resistance 20000 cycles
Overvoltage category III


Installation

FeatureValue
Tightening torque 2.8 N-m
Mounting type DIN-Rail
Ambient temperature -25/+55 degrees
Contact position indication Red ON / Green OFF
Cable stripping length 12 mm
Pollution degree 2

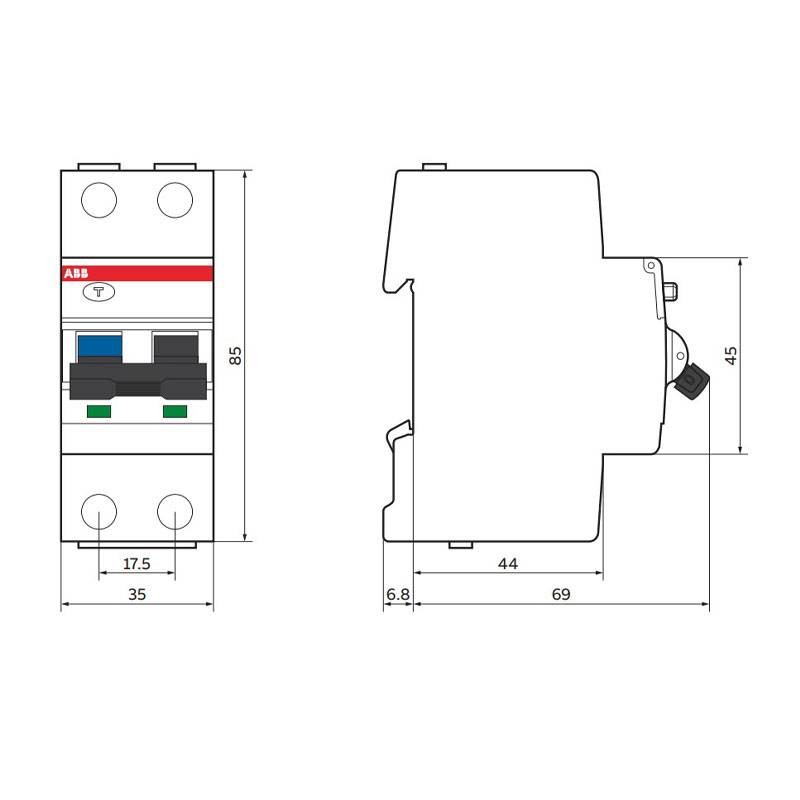

Dimensions

FeatureValue
Width 35 mm
Height 85 mm
Depth 69 mm

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
6KA
RCD Type:
A
Differential current :
0.03A
Amps:
20A
Circuit Protections:
RCBO
