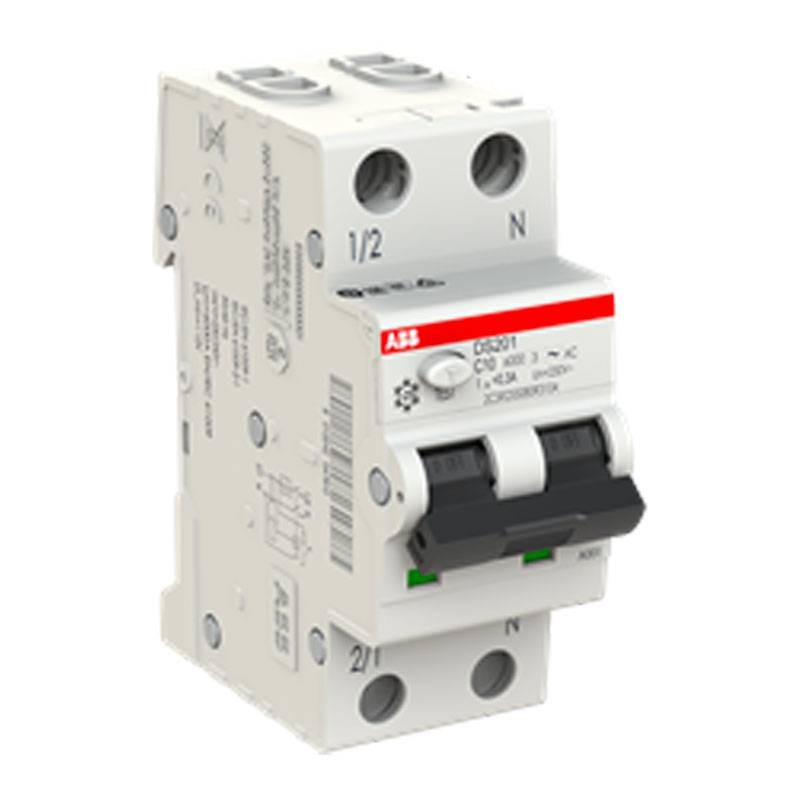

Abb residual current circuit breaker 1P+N 10A 6kA type AC curve C 300mA DS201C10AC300

Abb
Abb
ABB DS201C10AC300 8012542047810

Abb DS201 C10 A300 Residual Current Circuit Breaker combines protection against overloads, short circuits and current leakage, ensuring safety and efficiency in electrical systems. Ideal for residential, commercial and industrial applications, with the following features:

  • Rated current: 10 amps

  • Number of poles: 1P+N (phase + neutral)

  • Tripping curve: C

  • Type of differential current: AC (sinusoidal fault currents)

  • Rated residual current: 300 mA

  • Rated breaking capacity: 6 kA

  • Mounting: DIN rail for quick installation

  • Degree of protection: IP20/IP40

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb residual current circuit breaker 1P+N 10A 6kA type AC curve C 300mA DS201C10AC300
€77.59
€77.59

€77.59
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€77.59

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Abb residual current circuit breaker 1P+N 10A 6kA type AC curve C 300mA

The residual current circuit breaker offers double protection:

  • Magnetothermal, which trips in case of overloads and short circuits up to 6kA

  • Differential, which protects against current leakage above 300mA, preventing the risk of fire due to high leakage

Curve C provides optimal protection for circuits with moderate loads, such as lighting, electrical outlets, and small motors.

Versatility and Applications

Due to its compliance with safety standards and its ability to operate with a voltage rating of 110-264V AC, it is ideal for:

  • Residential installations (general system protection)

  • Commercial buildings (stores, offices, public places)

  • Industrial sector (switchboards, protection of circuits with high loads)

The 300mA differential protection makes it particularly suitable for preventing electrical fires in environments with older systems or where current leakage could pose a danger.

Compact Design and Simple Installation

The switch features a compact design with a width of 2 DIN modules (35mm), facilitating installation in electrical panels.

The IP20/IP40 degree of protection ensures resistance to dust and external agents, while the wide operating temperature range (-25/+55 degrees ) ensures reliable performance even under harsh conditions.

Key Features

Feature Value
Rated current 10 A
Number of poles 1P+N
Rated residual current 300 mA
Rated short-circuit capacity 6 kA
Input voltage type AC
Curve C
Rated insulation voltage 110/264 V
Rated frequency 50/60 Hz
Degree of protection IP20/IP40
Width in number of modular ranges 2


Performance and Safety

Feature Value
Rated extreme short-circuit capacity 10 kA
Rated conditional short-circuit current 10 kA
Rated service short-circuit capacity 7.5 kA
Impulse withstand voltage 4 kV
Dielectric proof voltage 2 kV
Power loss 2,3 W
Energy limitation class 3
Electrical resistance 10000 cycles
Mechanical resistance 20000 cycles
Overvoltage category III


Installation

Feature Value
Tightening torque 2.8 N-m
Mounting type DIN-Rail
Ambient temperature -25/+55 degrees
Contact position indication Red ON / Green OFF
Cable stripping length 12 mm
Pollution degree 2

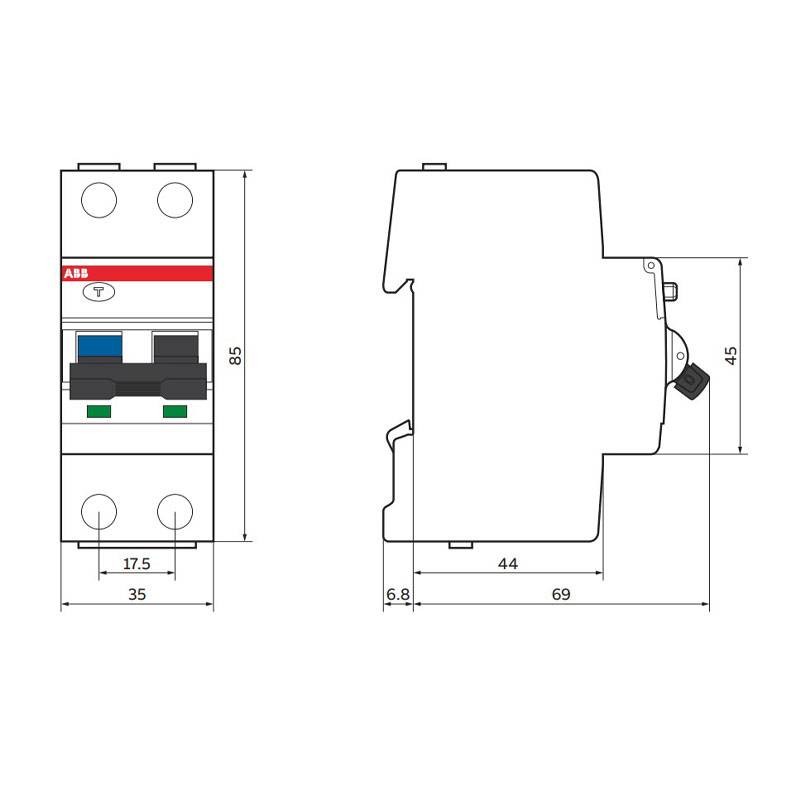

Dimensions

Feature Value
Width 35 mm
Height 85 mm
Depth 69 mm

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
6KA
RCD Type:
AC
Differential current :
0.3A
Amps:
10A
Circuit Protections:
RCBO
