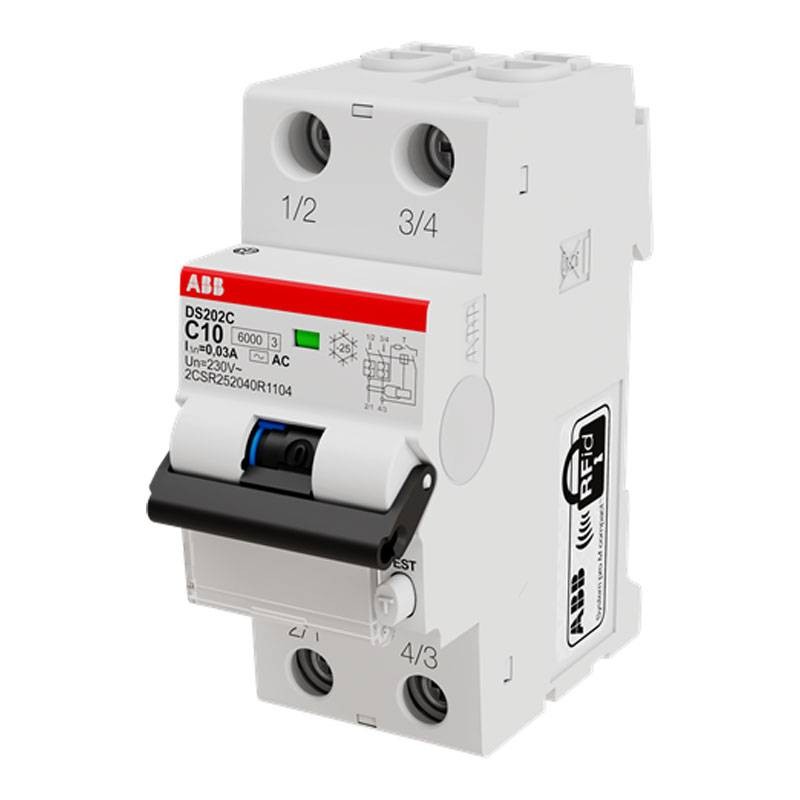

Abb Residual current circuit breaker 10A 2P 30mA AC 6KA DS202CRC10AC30

Abb
Abb
ABB DS202CRC10AC30 4022903033509

Abb DS202CR L C10 AC30 residual current circuit breaker:



  • 10A rated current
  • 2 Poles
  • Rated residual current 30mA (0.03)
  • Type AC
  • C curve
  • 2 Modules
  • Rated short-circuit power 6KA
  • AC Input Voltage Type
Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb Residual current circuit breaker 10A 2P 30mA AC 6KA DS202CRC10AC30
€70.66
€70.66

€70.66
Tax included
Calculate shipping cost
Items Available: 347
Further availability of the manufacturer
€70.66

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The residual current circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one, and in case of need it interrupts the electric current.



The residual current circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.



The residual current circuit breaker in the electrical system integrates three different protections:

  • the magnetic one for short circuits that can endanger an entire building with the danger of fire;
  • the thermal one for overloads in the power supply (e.g., more than one appliance in operation);
  • the differential one proper to the circuit breaker, which protects the subject from a power leakage



Curve C, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.



AC-type differential circuit breaker tripping is assured for suddenly or slowly increasing applied sine-wave alternating currents (IEC EN 61008-1).



The RCBO DS202CR series is a 2P device in two modules for protection of single-phase end-user circuits against overload and short-circuit currents. Protection against the effects of alternating and direct pulsating sinusoidal earth fault currents. Protection against indirect and additional contacts. Final protection against direct contacts.



Characteristics:

  • Reference standards: IEC/EN 61009-1 IEC/EN 61009-2-1
  • Rated operating voltage: according to IEC 60898-1 230 V
  • Rated insulation voltage (Ui): according to IEC/EN 60664-1 440 V
  • Rated extreme short-circuit capacity (Icu): 6kA
  • Rated service short-circuit capacity (Ics): 4.5 kA
  • Maximum peak current: 0.25kA
  • Rated frequency (f): 50 Hz frequency
  • Power loss: 3.28 W
  • Energy limitation class: 3
  • Electrical resistance: 10000 operations
  • Mechanical resistance: 20000 operations
  • Fault indication: Blue flag on window
  • Operating characteristic: Instantaneous Overvoltage category: III
  • Position of neutral terminals: Right Left
  • Tightening Torque: 4 Nm
  • Connection capacity: Busbar 1010 mm² - Flexible 1...25 mm² - Rigid Solid 135 mm²
  • Nominal cross-section: 1 - Solid core 1 35 mm² - 4 - Multi-Wired 1 25 mm²
  • Wire stripping length: 11 millimeters
  • Ambient temperature: Operating -5 55 °C
  • Degree of protection: IP20
  • Pollution degree: 3
  • Dimensions: Product width: 36 millimeters - Product height: 86 millimeters - Product depth: 72 millimeters
  • Product net weight: 0.220 kg
  • Built-in depth (t2): 72 millimeters.

There are no reviews

Data sheet

Modules:
2
Poles:
2P
Curve:
C
Breaking capacity:
6KA
RCD Type:
AC
Differential current :
0.03A
Amps:
10A
Circuit Protections:
RCBO
