Intercable 24200 Grounding and Shorting Device

Intercable
INR 24200 8014212228598

Intercable earthing and short-circuiting device, suitable for earthing and short-circuiting LV cables at fixed points.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Intercable 24200 Grounding and Shorting Device
€337.44
€337.44

€337.44
Tax included
Calculate shipping cost

€337.44

Buy it within and receive it from Thursday, 25 December
Two-year warranty
Easy return within 14 days

Features:

  • Short circuit realized with two connected cables (600 and 750 mm length) with 4 8 mm expansion plugs
  • Grounding cable (2000 mm length) with screw terminal adjustable up to 20 mm and 8 mm expansion plug
  • Earthing cable connectable to the central terminal of the short-circuit device

Standards:

  • EN/CEI 60900
  • EN/IEC 61230
  • EN/CEI 10020
  • IEC 228 - class 6
  • IEC 1138

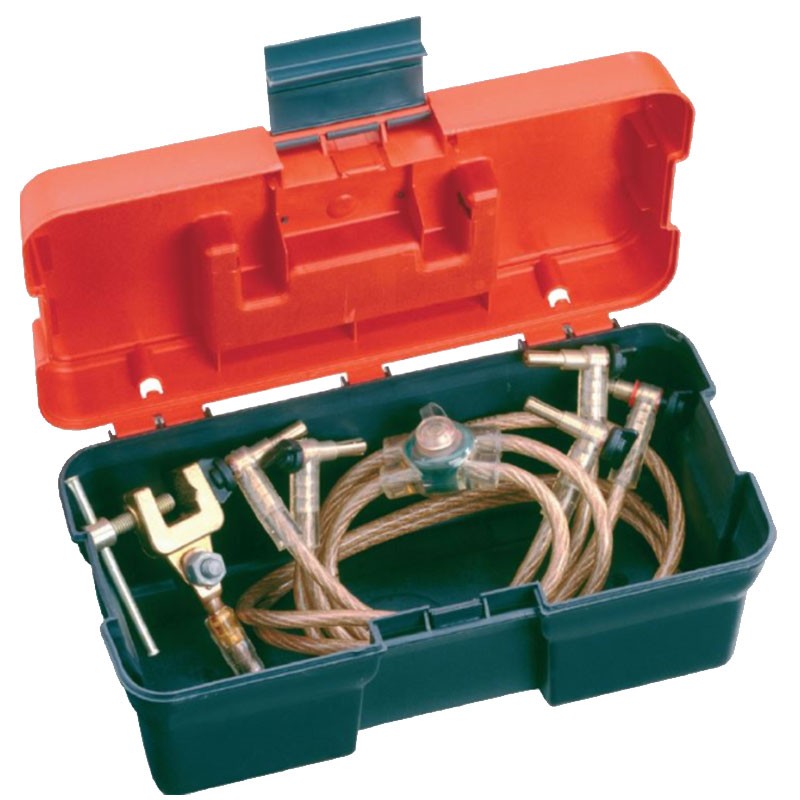

Package Contents

  • Short-circuit device 2420 1
  • Grounding cable 2420 2
  • Rigid carrying case also suitable for holding adapter set 2220 4 / 2221 4

Data sheet

Type:
Grounded Cables
