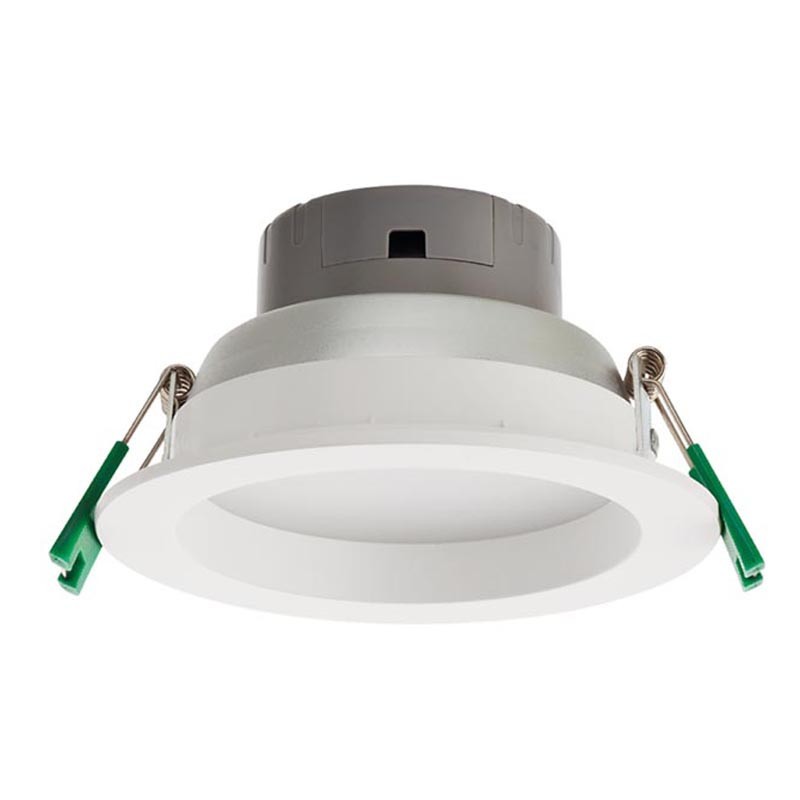

Redo Recessed LED spotlight 8W 3000K 90° IP44 round EV01WW
UOR EV01WW
6422103013666
Redo LED recessed spotlight EV01 series, with the following features:
- Power/consumption: 8 watts
- Input voltage: 200-240V AC
- Input frequency: 50/60Hz
- Output voltage: 23V DC
- Led type: SMD 2835 EPISTAR
- Number of Led: 39
- Color temperature: warm light 3000 Kelvin
- Beam angle 90 degrees
- IP44 degree of protection
- CRI: 82

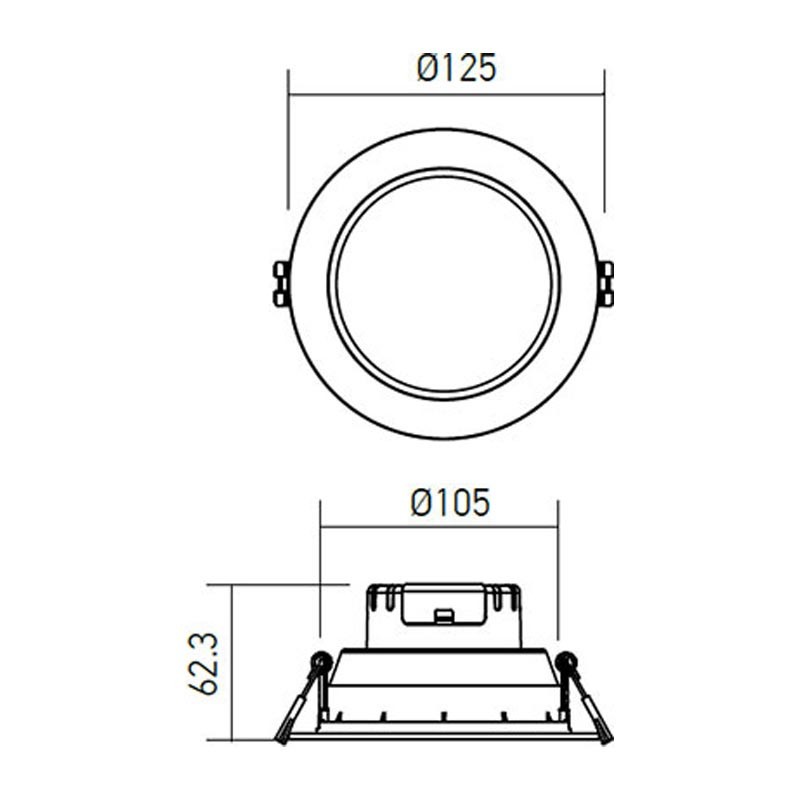

- Hole diameter: 105 mm
- Spotlight thickness: 62.3 mm
Luminaire suitable for installation in plasterboard or false ceiling.
€40.44
Items Available: 2
: 1
Other technical features:
- Round shape
- System luminous flux: 617 lumens
- LED luminous flux: 885 lumens
- Luminous efficiency: 77 lm/W
- Matte white finish
- Working environment temperature: -20 to +50 °C
- Standards Standards: EN 60598-1:2015, EN 60598-2-2:2012, EN 62493:2015, EN 62471:2008, EN 62031:2008 + A2:2015, EN 60529:1992 + A2:2013, EN 55015:2013 + A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009
- White polycarbonate frame with high thermal resistance. Anodized aluminum body with LED module cooler function.
- Reflector composed of reflective plastic sheet material
- Opal PMMA diffuser
- Constant current power supply supplied with the luminaire. 2P+N terminal block (10A/250V/2.5 mm²)
There are no reviews
Data sheet
- Colour: White
- Type: Spotlights
- Staining: Warm
- Shape: Round
- Degree of protection: IP44
- Model: Fixed
- Watts: From 1 to 20W
- Integrated Led: YES
- Colour temperatures: 3000 Kelvin
- Spotlight thickness: 61-80mm
