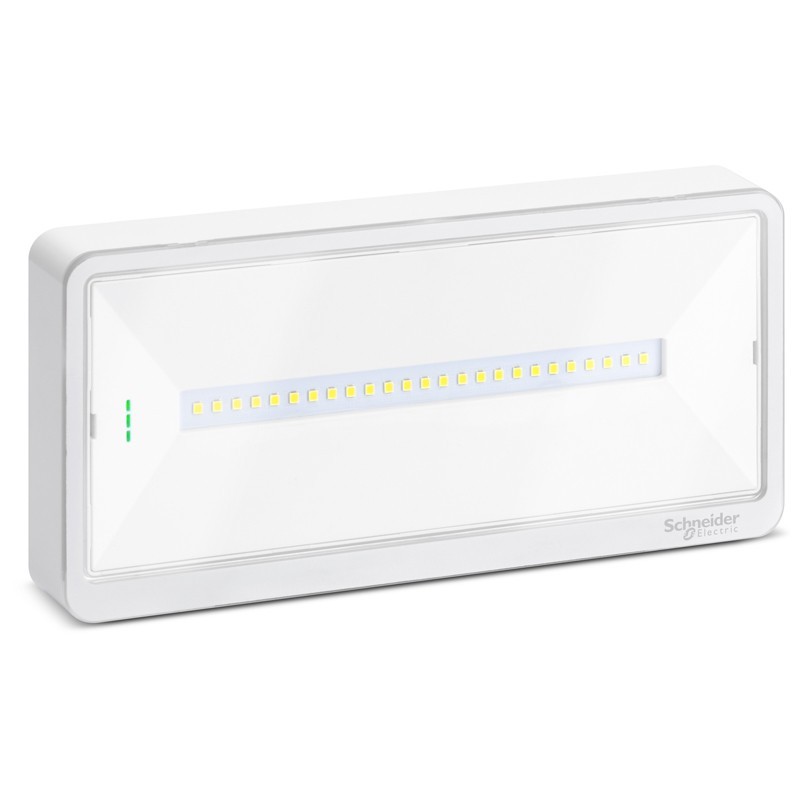

Schneider Exiway Light SE/SA IP42 500 lm Emergency Wall Lamp OVA44014
SNR OVA44014
3606481918093
Schneider Exiway Light SE/SA emergency lamp, autonomy up to 3 hours, wall/ceiling mount, neutral Led, recharge in 12h, with the following features:
-
Supply voltage: 230V AC
-
Luminous flux: 500/400/300/250 lm (SE), 230 lm (SA)
-
Light source: 25 0.3W LEDs, neutral light
-
Mounting: Wall or ceiling
-
Visibility: 20 meters
-
Battery: LiFePO₄ 6.4V 1.5Ah
-
Degree of protection: IP42
€63.14
Items Available: 4
Frequently bought together
Exiway Light Schneider: efficient and flexible emergency lighting
Schneider Electric's Exiway Light emergency luminaire is the ideal choice for ensuring safety and visibility in public, commercial or residential environments in the event of a power outage. With SE/SA (Emergency Only/ Always On) function, it is perfectly adapted to any safety requirement.
High autonomy and visibility
This lamp offers adjustable autonomies of 1, 1.5, 2 or 3 hours, maintaining luminous fluxes between 500 and 250 lumens in emergency mode and 230 lumens in permanent mode. Visibility up to 20 meters ensures effective coverage in evacuation areas and large environments.
Long-lasting LED technology
Equipped with 25 0.3W neutral light LEDs, the Exiway Light provides a service life of up to 100,000 hours, dramatically reducing maintenance costs. The integrated LED source is protected by a self-extinguishing polycarbonate shell with fire resistance up to 850°C.
Easy and versatile mounting

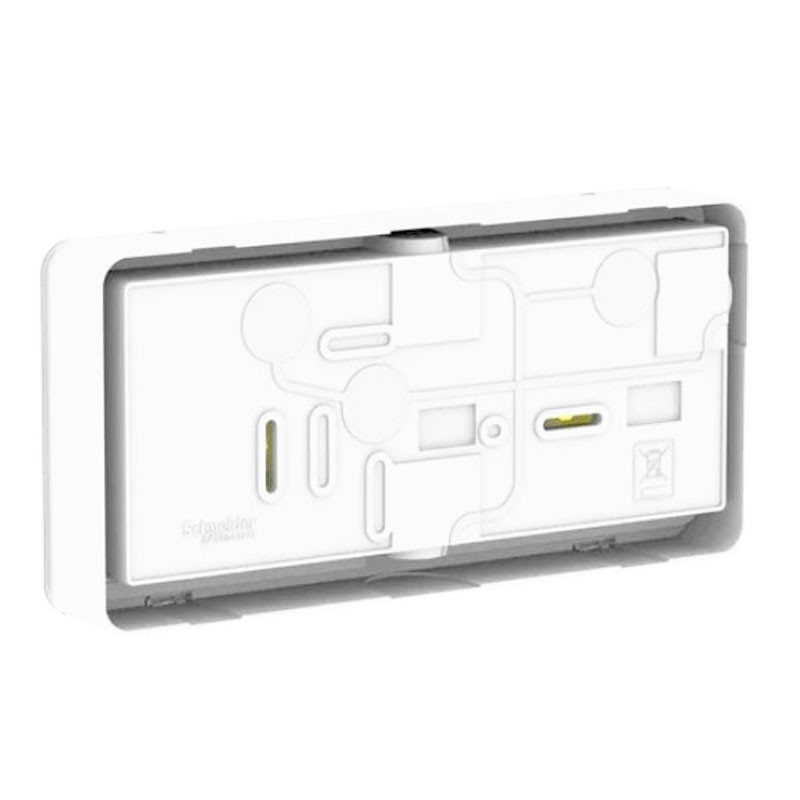

With its compact design (229 x 112 x 32 mm) and low weight of 0.41 kg, the device is easily installed on the wall or ceiling using dual-input terminal blocks. DIN rail mounting is not provided, but it is perfect for fixed safety systems.
Reliability and regulatory compliance
230V AC 50/60 Hz power supply, insulation class II, IP42 and IK09 ensure optimum performance in indoor environments, with temperatures ranging from 0 to +40 °C. The lamp complies with EN 60598-1, EN 60598-2-22, EN 62471 and UL 94 V2, with CE and ENEC certification.
Schneider Emergency Lamp Technical Specifications
| Parameter | Value |
|---|---|
| Series | Exiway |
| Model | Exiway Light |
| Product Type | SE/SA |
| Supply voltage | 230 V AC - 50/60 Hz |
| Luminous flux | 500/400/300/250 lm (SE) - 230 lm (SA) |
| Selectable autonomy | 1h / 1.5h / 2h / 3h |
| Charging time | 12h |
| Light source | 25 LEDs of 0.3W |
| Mounting | Wall or ceiling |
| Visibility | 20 m |
| Battery | LiFePO₄ 6.4V 1.5Ah |
| Degree of protection | IP42 |
| Impact resistance rating | IK09 |
| Material | Polycarbonate |
| Insulation class | II |
| Functional test | Manual |
| Operating temperature | 0 ÷ 40 °C |
| Dimensions | 229 × 112 × 32 mm |
| Standards | EN 60598-1, EN 60598-2-22, EN 62471, UL 94 V2 |
| Certifications | CE, ENEC |
There are no reviews
Data sheet
- Type: Emergency lights
- Installation: Wall-mounted
- Integrated Led: YES
- Endurance: 3 hours
