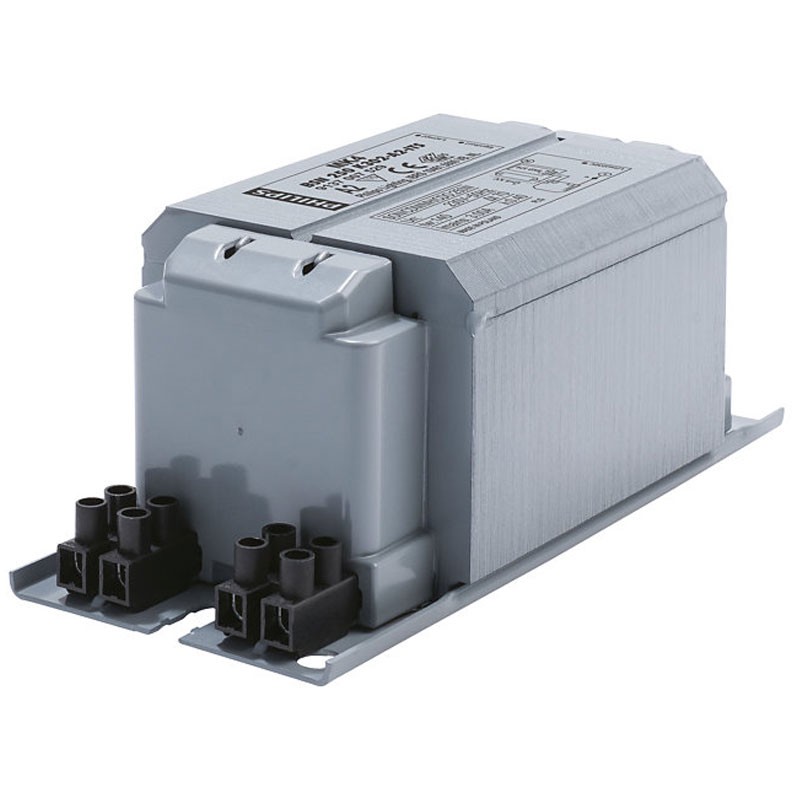

Philips Ballast for SAP/JM Lamps 150W 240V 50HZ BSN150K302ITS
PHL BSN150K302ITS
Philps electromagnetic ballast impregnated copper for use with an external semi-parallel igniter for CDM, CDO, MH, HPI (Plus) and SON lamps, with the following characteristics:
- 230V input voltage
- Input frequency 50 Hz
- 100% load power factor (Nom) 0.85
- Line voltage performance (AC) -8%-+6%
- Line voltage safety (AC) -10%-+10%
- Input current with power factor correction 0.85A
- Input current without power factor correction 1.8A
- Power factor without power factor correction (Nom) 0.4
- Power losses (Nom) 16.4W

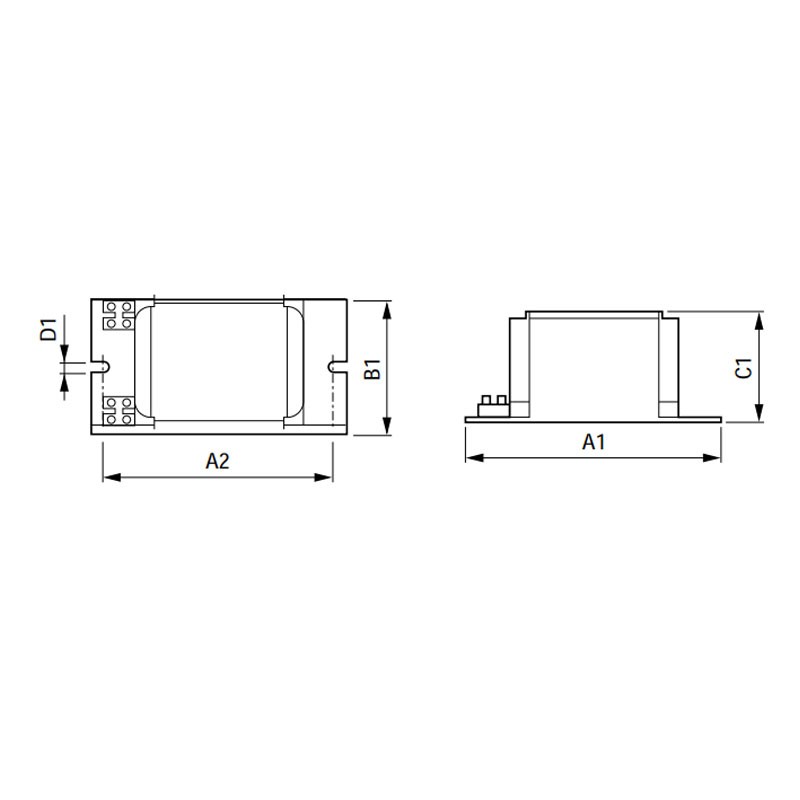

- Dimensions: A1 134mm - A2 113mm - B1 76mm - CI 65mm - D1 6.2mm
€76.33
Items Available: 10
: 9
Other technical features:
- Sheathing length 6.0 mm
- Reactor contact cable cross section 2.5 mm²
- Connector type Screw
- Capacitor 32µF/250V
- Specified ballast-lamp power 150W
- Recommended ignitor for SON/CDO/CDM lamps ignitor SKD 578 (913700655366)
- Storage temperature (Max) 130°C
- Storage temperature (Min) -30 °C
- Winding temperature (Max) 140 °C
- Delta-T Normal conditions to 55 °C
- Active temperature protection SI
- Approval Marks CE Mark ENEC Certificate
- Net weight 2,240 kg
There are no reviews
Data sheet
- Type: Ballasts for SAP/JM
