Lg Standard Ceiling Air Conditioner 36000BTU 10kW Single Phase
KIT LGISOFF36M
Lg single-split ceiling-mounted 36000btu single-phase Inverter powered air conditioner, ideal for large commercial and residential environments, with dual thermistor, BLDC motor and Wi-Fi compatibility for smart management with accessories not included, energy class A++/A+.

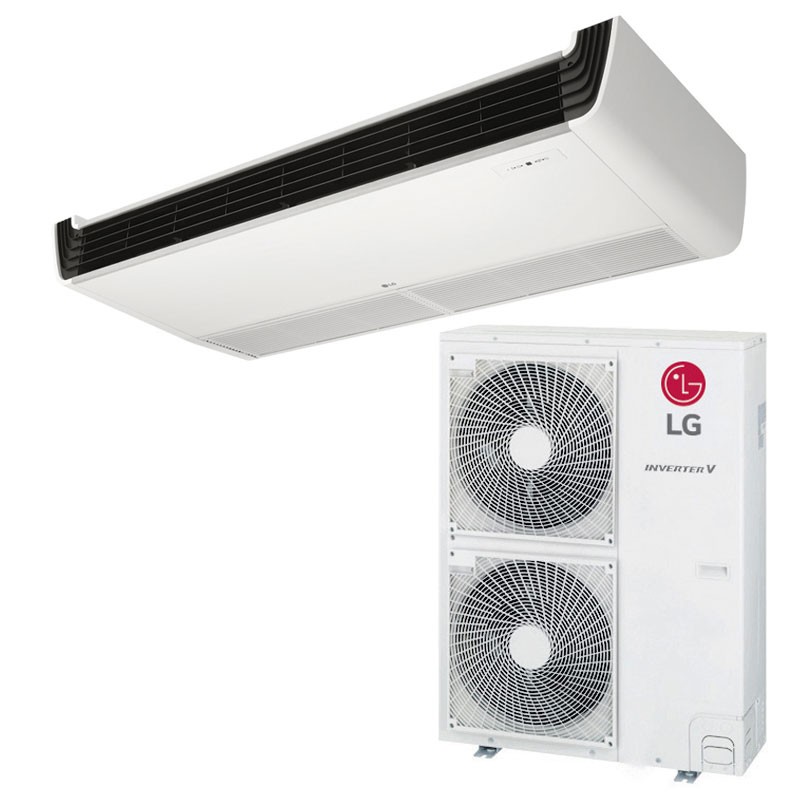

The kit consists of:
-

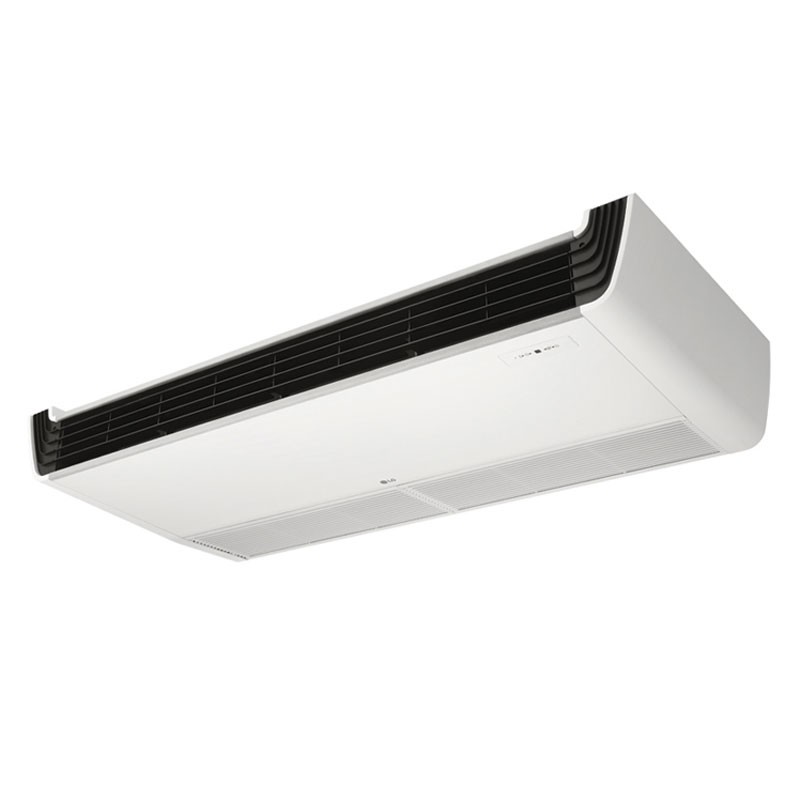

1 Indoor Unit 36000BTU UV36F.N20
-

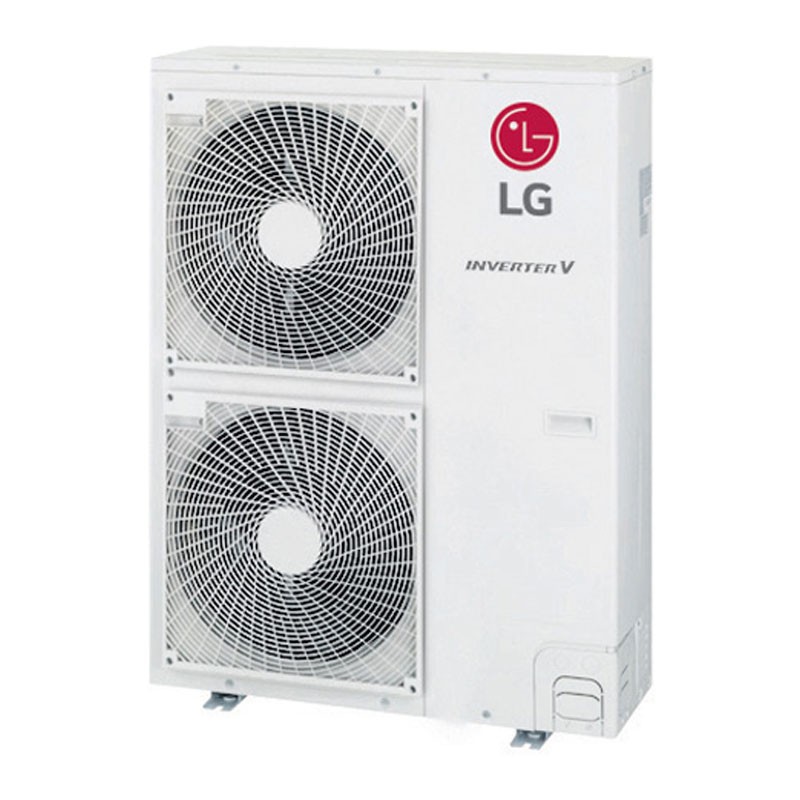

1 Outdoor Unit 36000BTU UUD1.U30
Optional controls to be purchased separately:
- Wi-Fi compatible with accessory code PWFMDD200
- Standard white flush control (PREMTB001)
For a room of approximately 150m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€3,248.15
Items Available: 2
: 1
Frequently bought together
- On sale!
LG Standard Ceiling Air Conditioner: Ceiling installation, powerful and compact
The proposed System consists of an Inverter Outdoor Unit, which is of very advanced design and can provide the highest performance in terms of environmental comfort, energy saving and reliability.
The system of LG Electronics with R32 refrigerant, consists of an outdoor unit with air refrigerant heat exchange to be installed outside the 'rooms and connected by refrigerant piping to an indoor unit for air conditioning, which can operate in both cooling and heating alternately.
Power and compactness for ceiling installation
Designed for LG systems with R32 refrigerant gas, the LG Compact ceiling-mounted air conditioner offers high performance in a compact size, perfect for commercial and large home environments. Sturdy galvanized sheet metal construction and expanded polystyrene insulation cover ensure long life and stable performance.
Powerful ventilation with BLDC motor
The Sirocco fan is powered by a direct-coupled BLDC motor, ensuring steady and quiet airflow.
Thanks to BLDC technology, smooth ventilation adjustment is achieved according to environmental needs.
Dual thermistor control for customized comfort
The system enables temperature sensing from two sensors:
- One on the indoor unit
- One on the flush control (optional)
Combined control provides precise thermal regulation, enhancing comfort in all conditions.
Smart control via Wi-Fi and voice commands
With the optional PWFMDD200 module, the unit becomes compatible with the LG ThinQ™ app, offering:
- Remote control via smartphone
- Google Home compatibility for voice commands
Remotely manageable functions:
- Power on/off
- Temperature adjustment
- Choice of operating modes
- Fan speed adjustment
- Performance monitoring
Integrated Dry Contact
The LG Compact unit has built-in dry contact for direct external control of on/off, ideal for integration into home automation systems or centralized systems.
Specifications of the LG Ceiling Mounted Air Conditioner Unit
Performance Air Conditioner Unit
| Cooling Capacity (Min.~Nom.~Max.) | 3.80 ~ 9.50 ~ 12.54 kW |
|---|---|
| Hot Capacity (Min.~Nom.~Max.) | 4.30 ~ 10.80 ~ 13.39 kW |
| Power consumption Cold (Min.~Nom.~Max.) | 0.50 ~ 2.65 ~ 4.03 kW |
| Power input Hot (Min.~Nom.~Max.) | 0.50 ~ 2.60 ~ 3.54 kW |
| Absorbed current Cold (Nominal) | 11.70 A |
| Absorbed current Hot (Nominal) | 11.40 A |
| EER / COP | 3.59 / 4.15 kWh/kWh |
| SEER / SCOP | 6.30 / 4.10 kWh/kWh |
| Seasonal Energy Class (Cold / Hot) | A++ / A+ |
| Annual Energy Consumption (Cold / Hot) | 528 / 3244 kWh |
| Dehumidification | 3.60 l/h |
| Indoor Unit Dimensions (WxHxD) | 1600x235x690mm |
| ODU Sound Pressure Cold (Nominal) | 50 dB(A) |
| Sound pressure ODU Hot (Nominal) | 50 dB(A) |
| Sound Power ODU Cold (Nominal) | 66 dB(A) |
| ODU Sound Power Warm (Nominal) | - |
| Pipe Connection - Liquid | Ø 9.52 mm (3/8") |
| Pipe Connection - Gas | Ø 15.88 mm (5/8") |
| Nominal Pipe Length | 7.5 m |
| Pipe Length Min. / Max. | 5.0 / 85.0 m |
Outdoor Unit
| Power Supply (V, Ø, Hz) | 220-240 , 1 , 50 |
|---|---|
| Electrical connections | 3C x 6 mm² |
| Color | Warm Gray RAL 7044 |
| Dimensions (W x H x D) | 950 × 1380 × 330 mm |
| Weight | 85.00 kg |
| Motor | Twin Rotary BLDC |
| Refrigerant gas | R32 |
| GWP | 675 |
| Precharged | 3.000 g |
| t-CO₂eq. | 2,025 |
| Liquid connection | Ø 9.52 mm (3/8 in.) |
| Gas connection | Ø 15.88 mm (5/8") |
| Maximum distance indoor-outdoor units | 30 meters |
There are no reviews
Data sheet
- Air conditioners: Floor/Ceiling
- Gas: R32
- Power: 36000 BTU (10 Kw)
- System: Monosplit
- Room Size: 150m²
- Energy class: A++
