Lg Compact Ceiling Air Conditioner 24000BTU 6.8kW

Lg
Lg
KIT LGISOFF24 8806098557950

Lg single-phase Inverter 24000btu ceiling-mounted single-split air conditioner, ideal for commercial and residential environments, with dual thermistor, BLDC motor and Wi-Fi compatibility for smart management with accessories not included, energy class A++/A+.

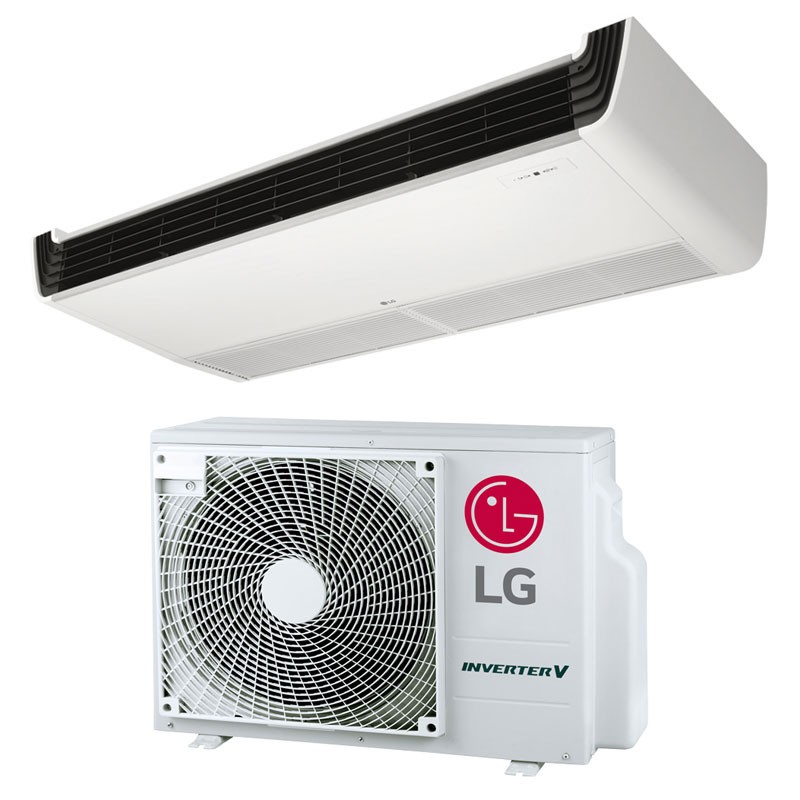

The kit consists of:

  • 1 Indoor Unit 24000BTU UV24F.N10

  • 1 Outdoor Unit 24000BTU UUB1.U20

Optional controls to be purchased separately:

  • Wi-Fi compatible with accessory code PWFMDD200
  • Standard white flush control (PREMTB001)
  • r32
    • For a room of approximately 78m²
    The air conditioner will be delivered pre-charged with gas R32
    The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.

    Do you have questions about this product or did you not find what you were looking for? Ask us!
    Lg Compact Ceiling Air Conditioner 24000BTU 6.8kW
    €1,657.98
    €1,657.98

    €1,657.98
    Tax included
    Free Shipping
    Calculate shipping cost
    Items Available: 2
    Further availability of the manufacturer
    €1,657.98

    Buy it within and receive it from Friday, 26 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

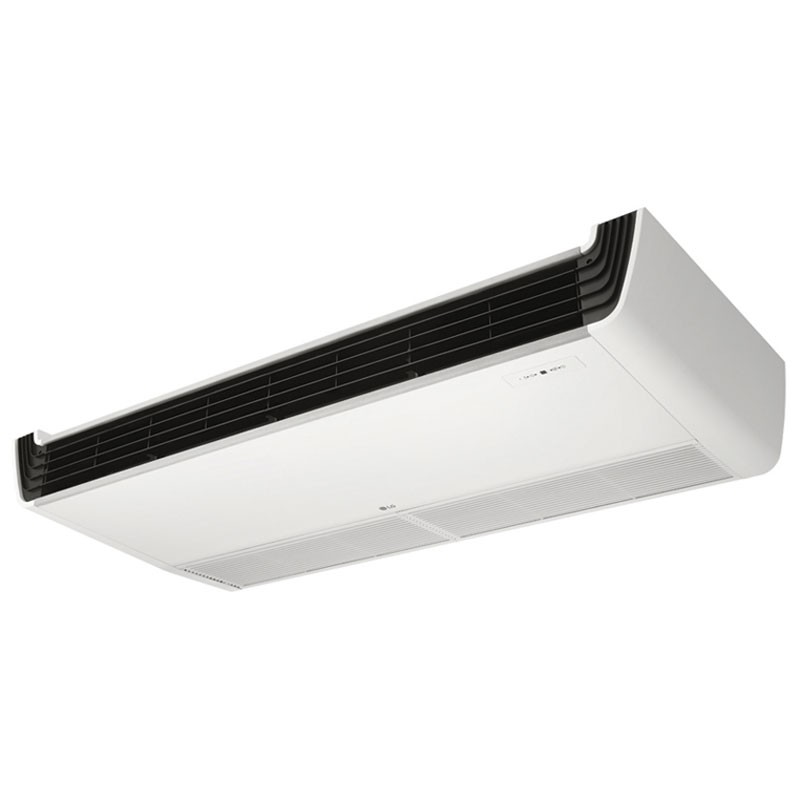

    LG Compact Ceiling Air Conditioner: Ceiling installation, powerful and compact

    The proposed System consists of an outdoor Inverter Unit,of very advanced design and capable of providing maximum performance in terms of environmental comfort, energy saving and reliability.

    The system of LG Electronics with R32 refrigerant, consists of an outdoor unit with air refrigerant heat exchange to be installed outside the 'rooms and connected by refrigerant piping to an indoor unit for air conditioning,which can operate in both cooling and heating alternately.


    Powerful and compact for ceiling installation

    Designed for LG systems with R32 refrigerant gas, the LG Compact ceiling-mounted air conditioner offers high performance in a compact size, perfect for commercial and domestic environments. Sturdy galvanized sheet metal construction and expanded polystyrene insulation cover ensure long life and stable performance.


    Powerful ventilation with BLDC motor

    The Sirocco fan is powered by a direct-coupled BLDC motor, ensuring steady and quiet airflow.

    Thanks to BLDC technology, smooth ventilation adjustment is achieved according to environmental needs.


    Dual thermistor control for customized comfort

    The system enables temperature sensing from two sensors:

    • One on the indoor unit
    • One on the flush control (optional)

    Combined control provides precise thermal regulation, improving comfort in all conditions.


    Smart control via Wi-Fi and voice commands

    With the optional PWFMDD200 module, the unit becomes compatible with the LG ThinQ™ app, offering:

    • Remote control via smartphone
    • Google Home compatibility for voice commands


    Remotely manageable functions:

    • Power on/off
    • Temperature adjustment
    • Choice of operating modes
    • Fan speed adjustment
    • Performance monitoring


    Integrated Dry Contact

    The LG Compact unit has built-in dry contact for direct external control of on/off, ideal for integration into home automation systems or centralized systems.


    Specifications of the LG Ceiling Mounted Air Conditioner Unit

    Performance Air Conditioner Unit

    Cooling Capacity (Min.~Nom.~Max.) 2.70 ~ 6.80 ~ 7.50 kW
    Hot Capacity (Min.~Nom.~Max.) 2.90 ~ 7.30 ~ 8.40 kW
    Power consumption capacity Cold (Min.~Nom.~Max.) 0.40 ~ 2.06 ~ 2.47 kW
    Power input Hot (Min.~Nom.~Max.) 0.40 ~ 2.23 ~ 2.90 kW
    Absorbed current Cold (Nominal) 9.00 A
    Absorbed current Hot (Nominal) 9.70 A
    EER / COP 3.30 / 3.28 kWh/kWh
    SEER / SCOP 6.60 / 4.20 kWh/kWh
    Seasonal Energy Class (Cold / Hot) A++ / A+
    Annual Energy Consumption (Cold / Hot) 361 / 1433 kWh
    Dehumidification 2.42 l/h
    ODU Sound Pressure Cold (Nominal) 48 dB(A)
    ODU Sound Pressure Hot (Nominal) 53 dB(A)
    Sound power ODU Cold (Nominal) 65 dB(A)
    ODU Sound Power Warm (Nominal) -
    Pipe Connection - Liquid Ø 9.52 mm (3/8")
    Pipe Connection - Gas Ø 15.88 mm (5/8")
    Nominal Pipe Length 7.5 m
    Pipe Length Min. / Max. 5.0 / 35.0 m

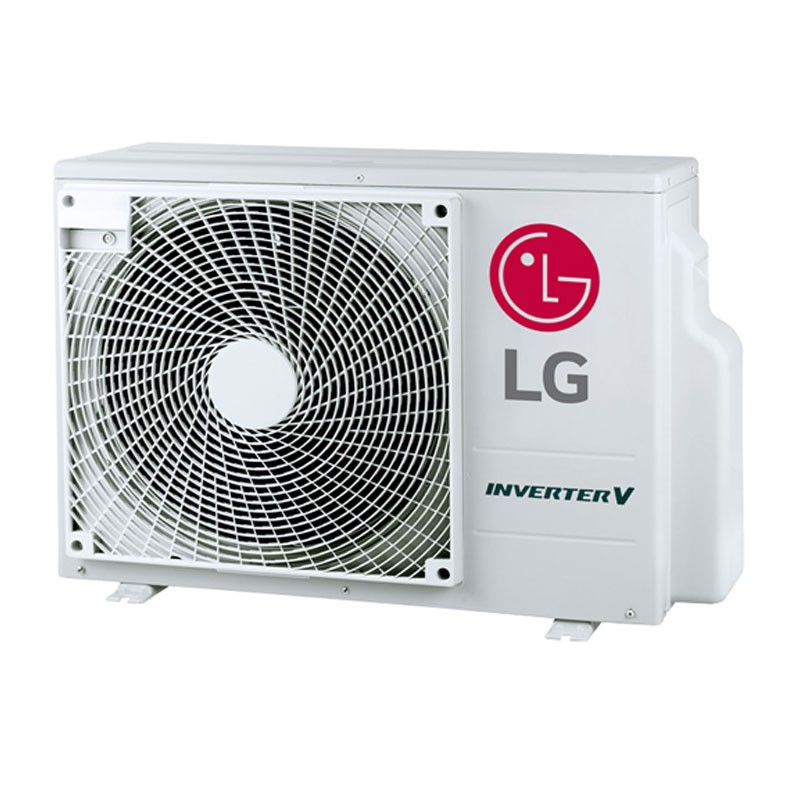

    Outdoor Unit

    Power Supply (V, Ø, Hz) 220-240 V, 1 Ø, 50 Hz
    Electrical connections 3C x 2.5 mm²
    Color Warm Gray RAL 7044
    Dimensions (W x H x D) 870 × 650 × 330 mm
    Weight 44.50 kg
    Motor Twin Rotary BLDC
    Refrigerant gas R32
    GWP 675
    Precharged 1.200 g
    t-CO₂eq. 0,810
    Liquid connection Ø 6.35 mm (1/4")
    Gas connection Ø 12.70 mm (1/2")
    Maximum distance indoor-outdoor units 30 meters

    There are no reviews

    Data sheet

    Air conditioners:
    Floor/Ceiling
    Gas:
    R32
    Power:
    24000 BTU (7,1 Kw)
    System:
    Monosplit
    Room Size:
    78m²
    Energy class:
    A++
