Lg Compact high-pressure ducted air conditioner 24000BTU 6.8kW
KIT LGICAN24
8851434641145
Single-split Lg Compact inverter single-phase ductable high-prevalence air conditioner with compact indoor unit for ceiling installation, with adjustable head up to 150 Pa and condensate drain pump as standard, with energy class A+/A+.

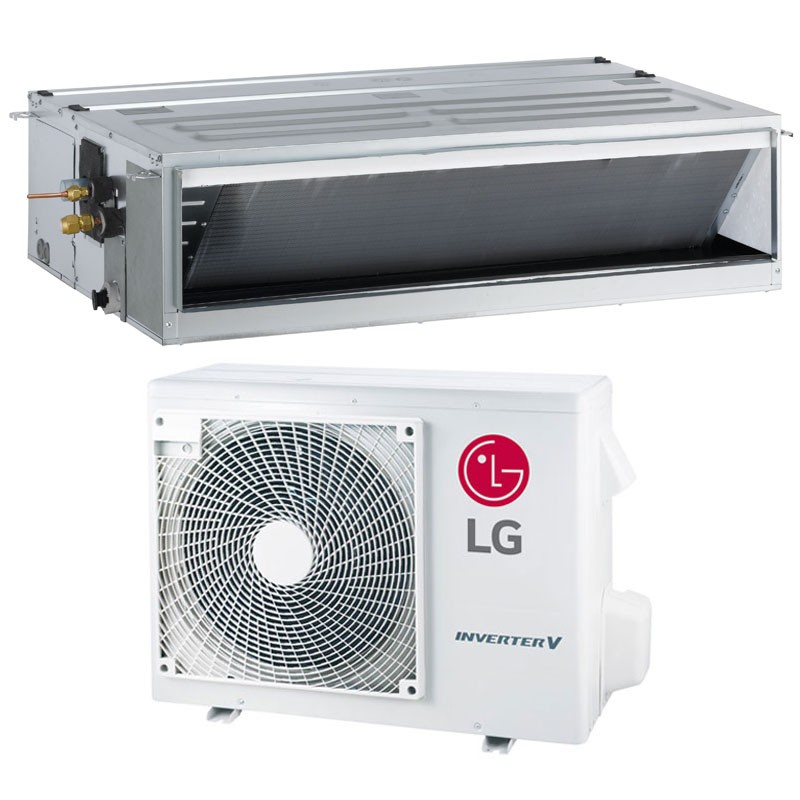

The kit consists of:
-

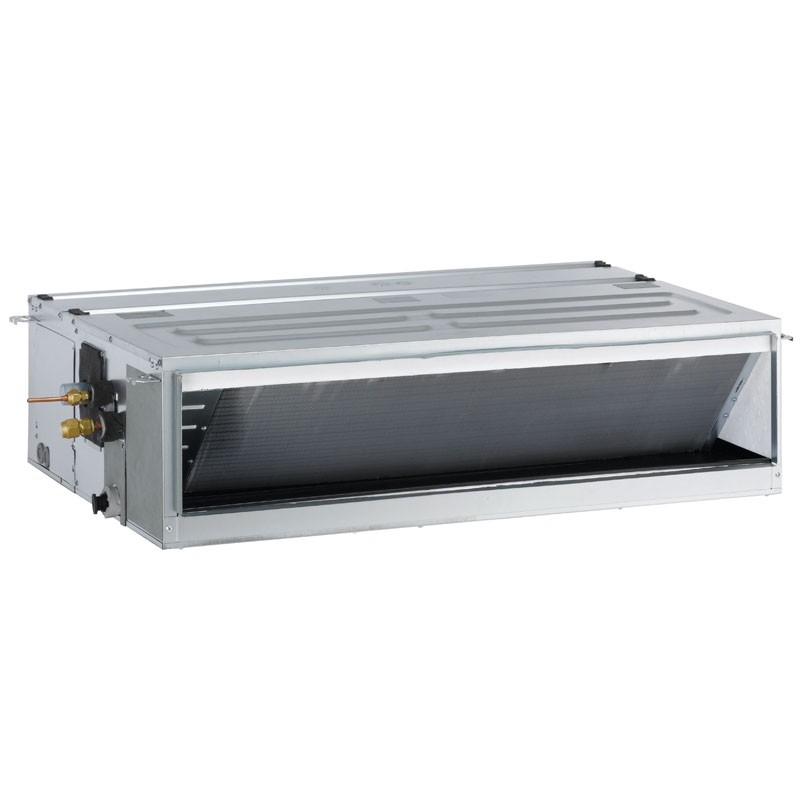

1 Indoor Unit 24000BTU CM24F.NA0
-

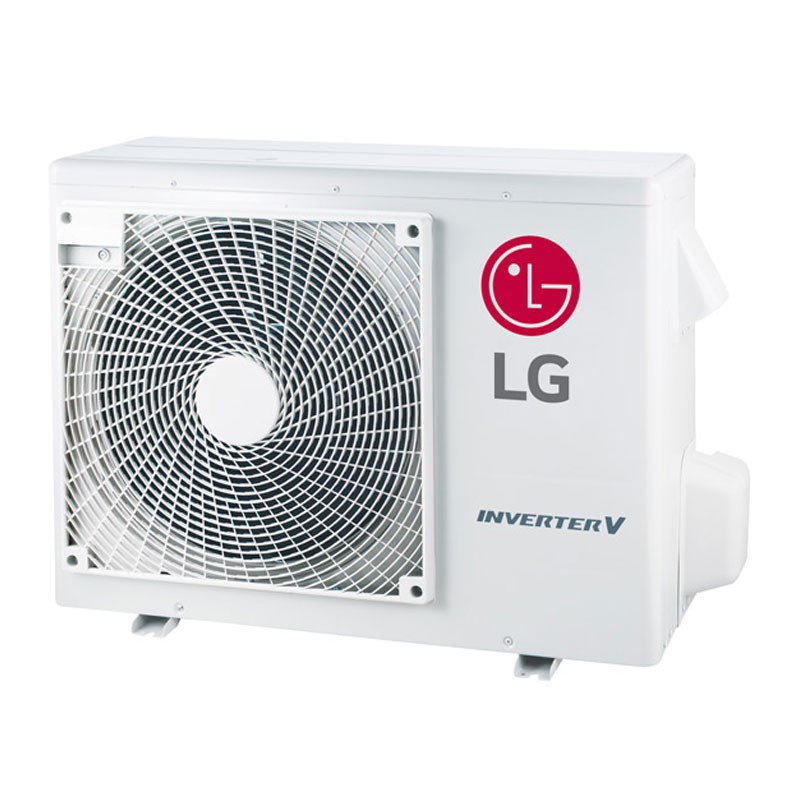

1 Outdoor Unit 24000BTU UUB1.U20
Optional controls to be purchased separately:
- Wi-Fi compatible with accessory code PWFMDD200
- Standard white flush control (PREMTB001)
For a room of approximately 78m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,641.97
Items Available: 3
: 2
Frequently bought together
LG Ducted High-Prevalence - Compactness and Power for Professional Installations
LG Electronics' system with R32 refrigerant, consists of an outdoor unit with air refrigerant heat exchange to be installed outside of rooms and connected by refrigerant piping to an indoor unit for air conditioning,which can operate in either cooling or heating mode alternately.
Robust and compact design for flexible installations

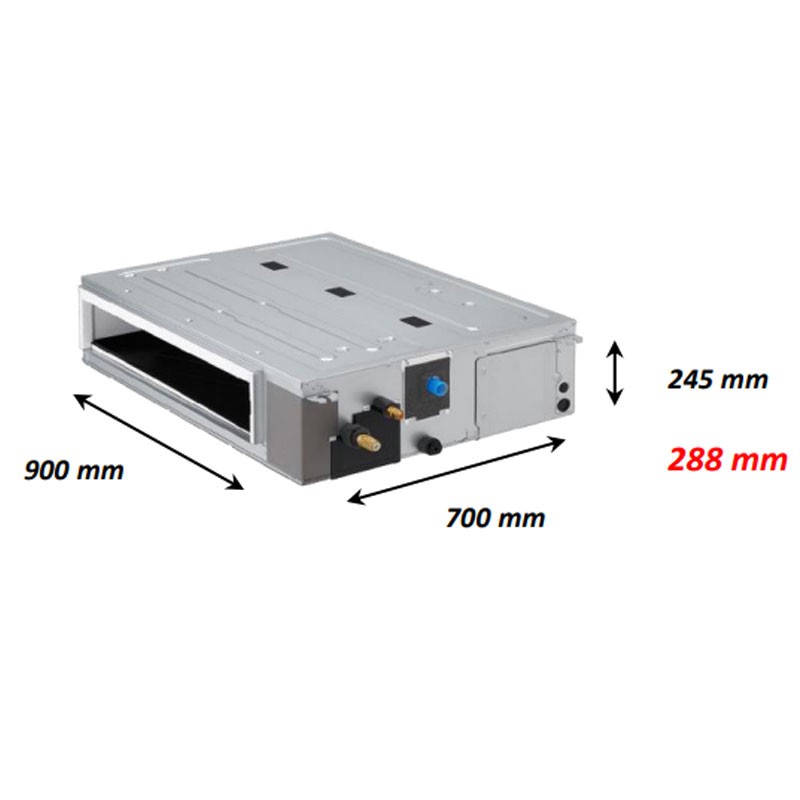

The indoor unit is housed in a galvanized steel metal shell with expanded polystyrene inner lining. The high-efficiency heat exchanger consists of copper tubes and aluminum fins, ideal for optimizing heat transfer even under heavy load conditions.
Adjustable high-pressure ventilation
The BLDC motor coupled with the Sirocco fan enables precise adjustment of airflow rate according to pressure drop. The user can set the head directly from the wired control, with values from 0 to 150 Pa, for maximum comfort and reduced noise.
Built-in condensate drain pump
Equipped with two outlets for condensate drainage:
- Lower for gravity drainage
- Upper with integrated 700 mm head pump.
This dual configuration allows installation flexibility even in complex or constrained environments.
Dual thermistor for optimized climate control
Temperature can be sensed by:
- Sensor built into the unit
- Sensor on the wired control unit
- Both sensors (with automatic selection of the lowest value)
This solution ensures precise control of indoor temperature, improving perceived well-being.
Smart connectivity and remote control
By connecting the LG PWFMDD200 Wi-Fi module (optional accessory), the unit becomes compatible with LG ThinQ and Google Home apps, enabling complete remote control:
Available functions:
- Power On/Off
- Temperature adjustment
- Operating mode selection
- Ventilation adjustment
- Monitoring and system status
Dry Contact and Automation
The unit has a built-in Dry Contact input, which allows on/off via external contact. This is ideal for integration into home automation systems, hotels or automated environments.
Technical specifications of the LG Ducted Air Conditioner Unit
Air Conditioner Unit Performance
| Cooling Capacity (Min.~Nom.~Max.) | 2.70 ~ 6.80 ~ 7.50 kW |
|---|---|
| Hot Capacity (Min.~Nom.~Max.) | 3.00 ~ 7.40 ~ 8.50 kW |
| Power consumption capacity Cold (Min.~Nom.~Max.) | 0.50 ~ 2.34 ~ 2.81 kW |
| Power input Hot (Min.~Nom.~Max.) | 0.40 ~ 2.17 ~ 2.82 kW |
| Absorbed current Cold (Nominal) | 10.30 A |
| Absorbed current Hot (Nominal) | 9.70 A |
| EER / COP | 2.91 / 3.41 kWh/kWh |
| SEER / SCOP | 5.80 / 4.10 kWh/kWh |
| Seasonal Energy Class (Cold / Hot) | A+ / A+ |
| Annual Energy Consumption (Cold / Hot) | 410 / 1400 kWh |
| Dehumidification | 2.48 l/h |
| ODU Sound Pressure Cold (Nominal) | 48 dB(A) |
| ODU Sound Pressure Hot (Nominal) | 53 dB(A) |
| Sound power ODU Cold (Nominal) | 65 dB(A) |
| ODU Sound Power Warm (Nominal) | - |
| Pipe Connection - Liquid | Ø 9.52 mm (3/8") |
| Pipe Connection - Gas | Ø 15.88 mm (5/8") |
| Nominal Pipe Length | 7.5 m |
| Pipe Length Min. / Max. | 5.0 / 35.0 m |
Outdoor Unit
| Power Supply (V, Ø, Hz) | 220-240 V, 1 Ø, 50 Hz |
|---|---|
| Electrical connections | 3C x 2.5 mm² |
| Color | Warm Gray RAL 7044 |
| Dimensions (W x H x D) | 870 × 650 × 330 mm |
| Weight | 45.00 kg |
| Motor | Twin Rotary BLDC |
| Refrigerant gas | R32 |
| GWP | 675 |
| Precharged | 1.200 g |
| t-CO₂eq. | 1 |
| Liquid connection | Ø 6.35 mm (1/4") |
| Gas connection | Ø 12.70 mm (1/2") |
| Maximum distance indoor-outdoor units | 30 meters |
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 24000 BTU (7,1 Kw)
- System: Monosplit
- Room Size: 78m²
- Energy class: A+
