Lg Compact high-pressure ducted air conditioner 18000BTU 5.0kW

Lg
Lg
KIT LGICAN18 8851434641138

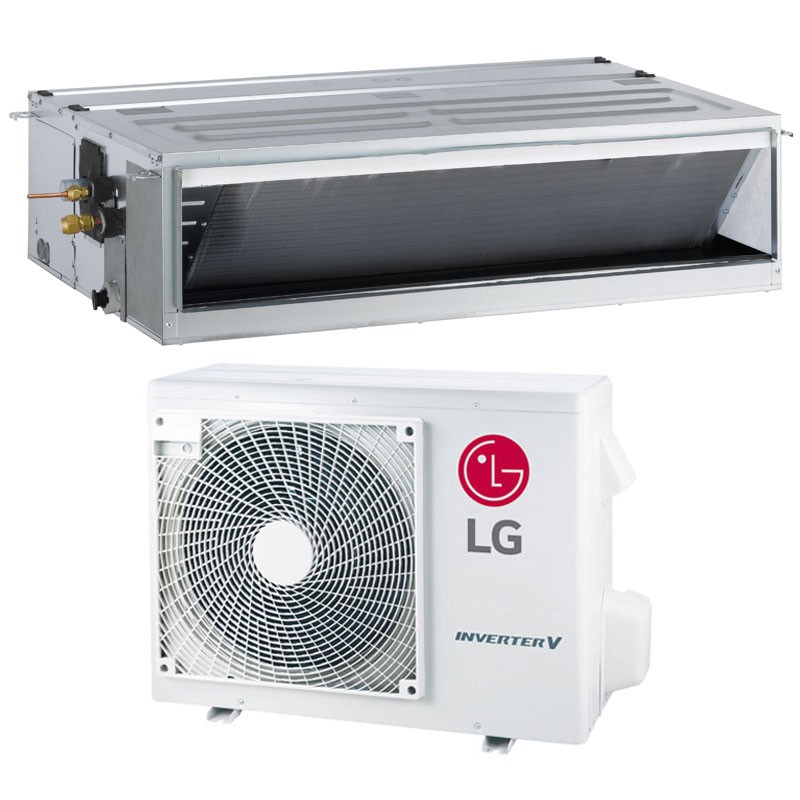

Single-split Lg Compact inverter single-phase ductable high-prevalence air conditioner with compact indoor unit for ceiling installation, with adjustable head up to 150 Pa and condensate drain pump as standard, with energy class A+/A.


The kit consists of:

  • 1 Indoor Unit 18000BTU CM18F.NA0

  • 1 Outdoor Unit UUA1.UL0

Optional controls to be purchased separately:

  • Wi-Fi compatible with accessory code PWFMDD200
  • Standard white flush control (PREMTB001)
  • r32
    • For a room of approximately 55m²
    The air conditioner will be delivered pre-charged with gas R32
    The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.

    Do you have questions about this product or did you not find what you were looking for? Ask us!
    Lg Compact high-pressure ducted air conditioner 18000BTU 5.0kW
    €1,097.97
    €1,097.97

    €1,097.97
    Tax included
    Free Shipping
    Calculate shipping cost
    Items Available: 4
    Further availability of the manufacturer
    €1,097.97

    Buy it within and receive it from Tuesday, 23 December
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    LG Ducted High-Prevalence - Compactness and Power for Professional Installations

    LG Electronics' system with R32 refrigerant, consists of an outdoor unit with air refrigerant heat exchange to be installed outside of rooms and connected by refrigerant piping to an indoor unit for air conditioning,which can operate in either cooling or heating mode alternately.


    Robust and compact design for flexible installations

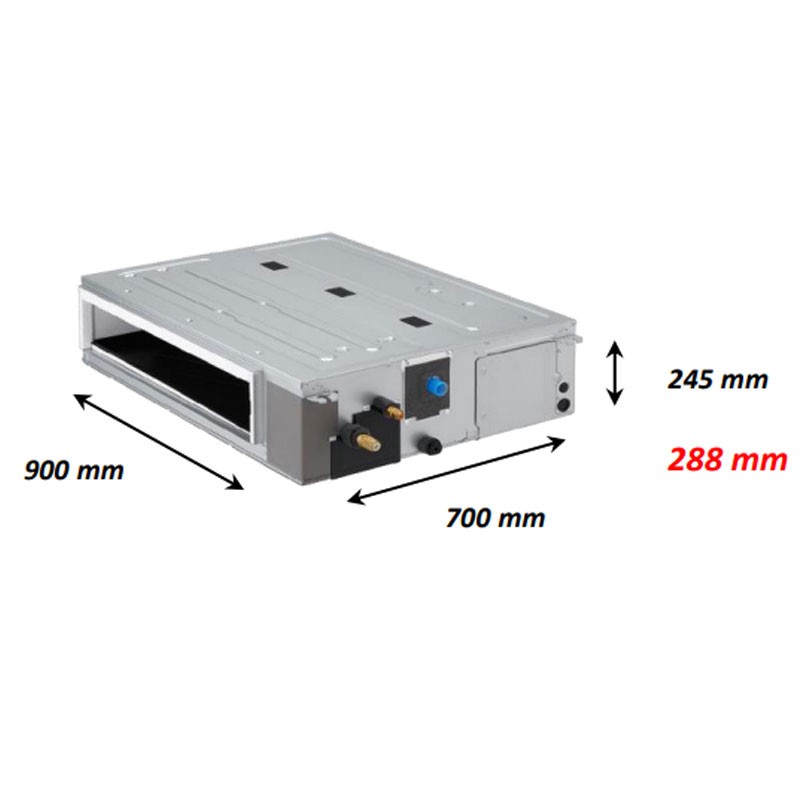

    The indoor unit is housed in a galvanized steel metal shell with expanded polystyrene inner lining. The high-efficiency heat exchanger consists of copper tubes and aluminum fins, ideal for optimizing heat transfer even under heavy load conditions.


    Adjustable high-pressure ventilation

    The BLDC motor coupled with the Sirocco fan enables precise adjustment of airflow rate according to pressure drop. The user can set the head directly from the wired control, with values from 0 to 150 Pa, for maximum comfort and reduced noise.


    Built-in condensate drain pump

    Equipped with two outlets for condensate drainage:

    • Lower for gravity drainage
    • Upper with integrated 700 mm head pump.


    This dual configuration allows installation flexibility even in complex or constrained environments.


    Dual thermistor for optimized climate control

    Temperature can be sensed by:

    • Sensor built into the unit
    • Sensor on the wired control unit
    • Both sensors (with automatic selection of the lowest value)


    This solution ensures precise control of indoor temperature, improving perceived well-being.


    Smart connectivity and remote control

    By connecting the LG PWFMDD200 Wi-Fi module (optional accessory), the unit becomes compatible with LG ThinQ and Google Home apps, enabling full remote control:

    Available functions:

    • Power On/Off
    • Temperature adjustment
    • Operating mode selection
    • Ventilation adjustment
    • Monitoring and system status


    Dry Contact and Automation

    The unit has a built-in Dry Contact input, which allows on/off via external contact. This is ideal for integration into home automation systems, hotels or automated environments.


    Technical specifications of the LG Ducted Air Conditioner Unit

    Air Conditioner Unit Performance

    Cooling Capacity (Min.~Nom.~Max.) 1.80 ~ 5.00 ~ 5.60 kW
    Hot Capacity (Min.~Nom.~Max.) 2.20 ~ 5.50 ~ 6.70 kW
    Power consumption Cold (Min.~Nom.~Max.) 0.35 ~ 1.67 ~ 1.92 kW
    Power input Hot (Min.~Nom.~Max.) 0.32 ~ 1.58 ~ 1.77 kW
    Absorbed current Cold (Nominal) 7.40 A
    Absorbed current Hot (Nominal) 7.00 A
    EER / COP 3.00 / 3.50 kWh/kWh
    SEER / SCOP 6.10 / 3.80 kWh/kWh
    Seasonal Energy Class (Cold / Hot) A+ / A
    Annual Energy Consumption (Cold / Hot) 287 / 1032 kWh
    Dehumidification 1.23 l/h
    ODU Sound Pressure Cold (Nominal) 49 dB(A)
    ODU Sound Pressure Hot (Nominal) 52 dB(A)
    Sound Power ODU Cold (Nominal) 65 dB(A)
    ODU Sound Power Warm (Nominal) -
    Pipe Connection - Liquid Ø 6.35 mm (1/4")
    Pipe Connection - Gas Ø 12.70 mm (1/2")
    Nominal Pipe Length 7.5 m
    Min. / Max. Pipe Length 5.0 / 30.0 m

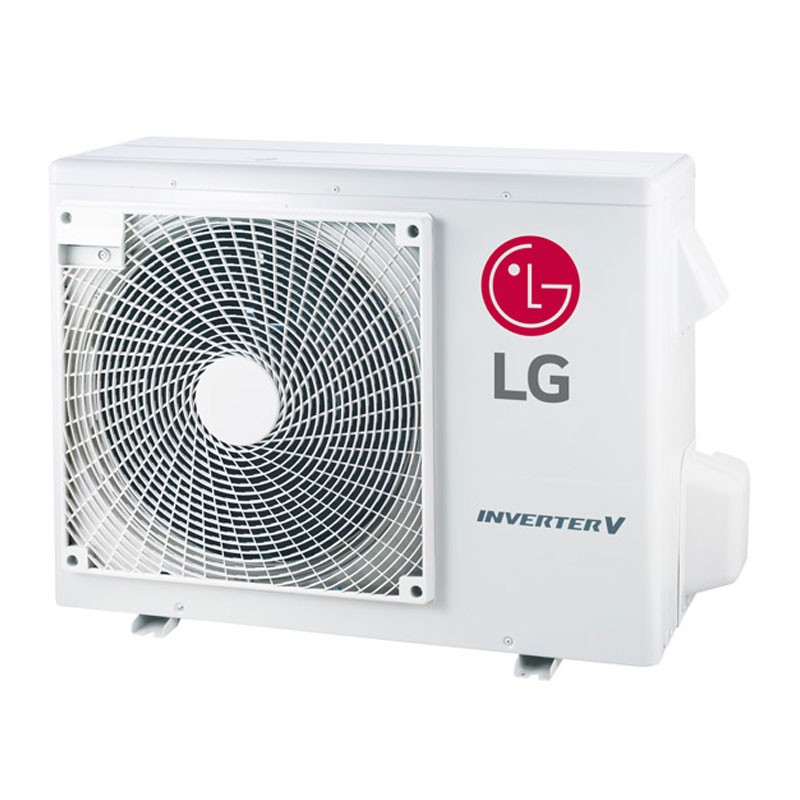

    Outdoor Unit

    Power Supply (V, Ø, Hz) 220-240 V, 1 Ø, 50 Hz
    Electrical connections 3C x 1.5 mm²
    Color Warm Gray RAL 7044
    Dimensions (W x H x D) 770 × 545 × 288 mm
    Weight 33.30 kg
    Motor Twin Rotary BLDC
    Refrigerant gas R32
    GWP 675
    Precharged 1.000 g
    t-CO₂eq. 0,675
    Liquid connection Ø 6.35 mm (1/4")
    Gas connection Ø 9.52 mm (3/8")
    Maximum distance indoor-outdoor units 30 meters

    There are no reviews

    Data sheet

    Air conditioners:
    Ducted
    Gas:
    R32
    Power:
    18000 BTU (5,0 Kw)
    System:
    Monosplit
    Room Size:
    55m²
    Energy class:
    A++
    Consulta scheda EPREL info_outline
    Contact details of the manufacturer and the responsible person
