Lg Artcool Gallery Photo Dual Split Air Conditioner 9000+12000BTU Wi-fi
KIT LGIGAPH92
The Dual Split LG ARTCOOL Gallery Photo 9000+12000 BTU (2.5+3.5kW) air conditioner is a unique system that combines art, design and advanced technology. With a customizable front panel, you can turn it into a work of art by framing photos, prints or graphic artwork. With integrated ThinQ® Wi-Fi, 3D airflow and advanced purification technologies, it provides high comfort and refined aesthetics for any room.

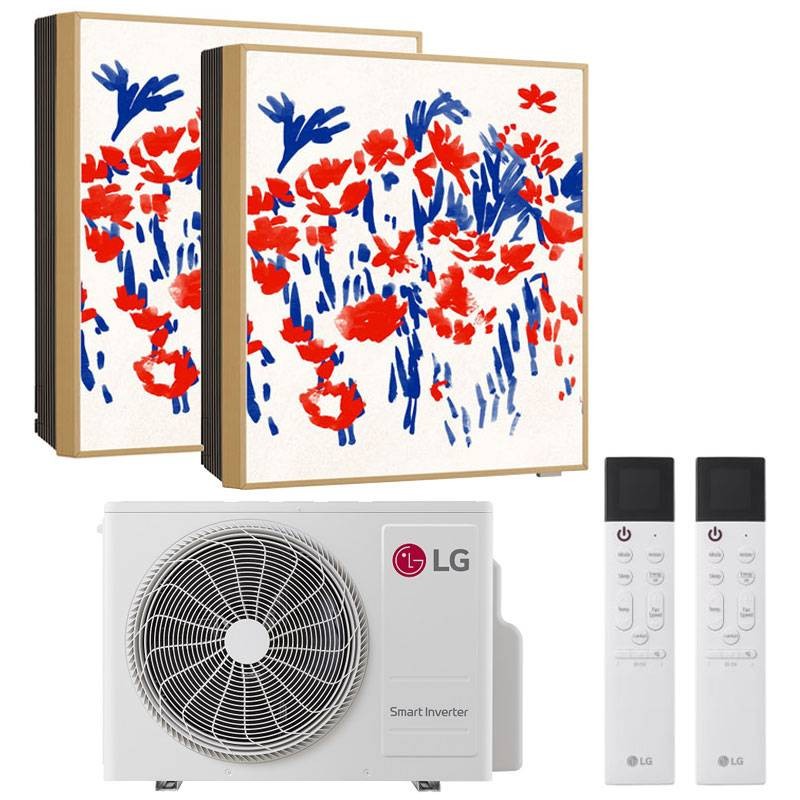

The kit consists of:
- 1 outdoor unit 4.1KW with 2 connections (MU2R15.U13)
- 1 Split indoor unit 9000BTU 2.5KW (A09GA1.NSE)
- 1 Split Indoor unit 12000BTU 3.5KW (A12GA1.NSE)

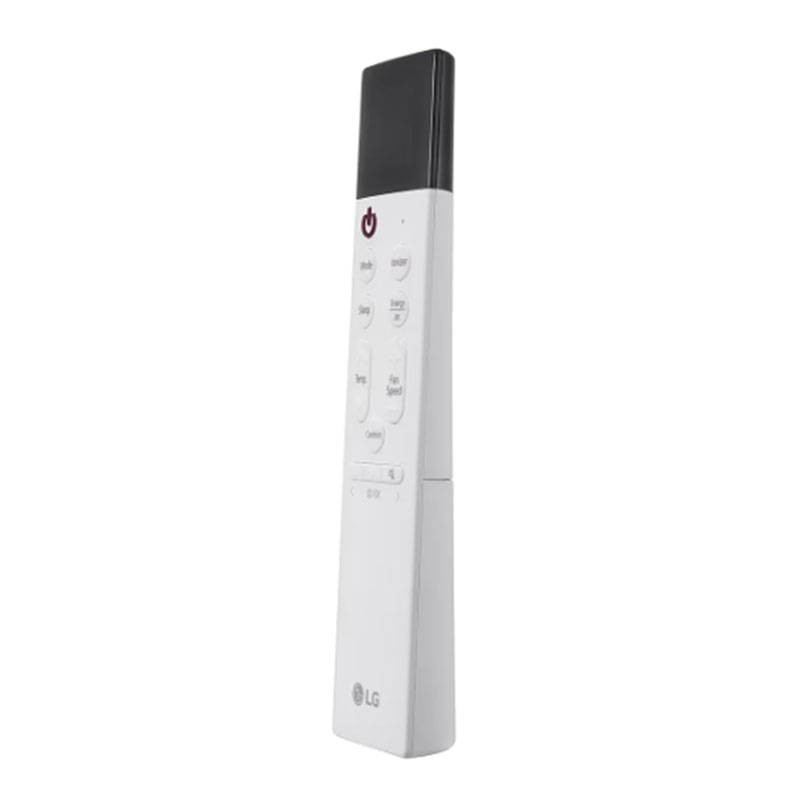

- 2 Standard infrared remote controls
For two rooms of approximately 27m² and 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€2,041.98
Items Available: 7
: 4
Air conditioners of the same series
Frequently bought together
LG Dual Artcool Gallery Photo: Exclusive Design
An air conditioner that becomes art

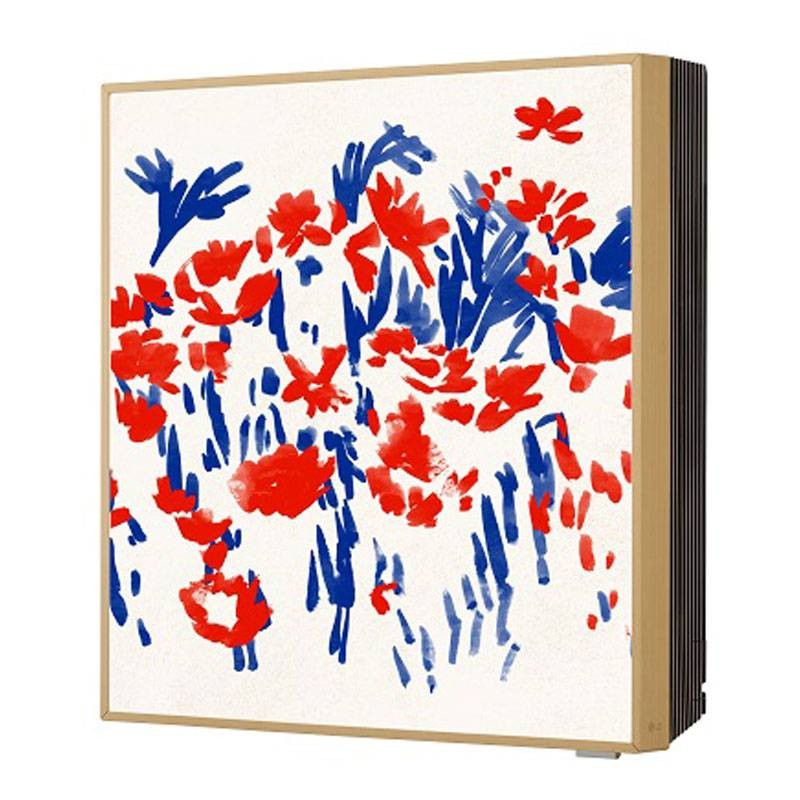

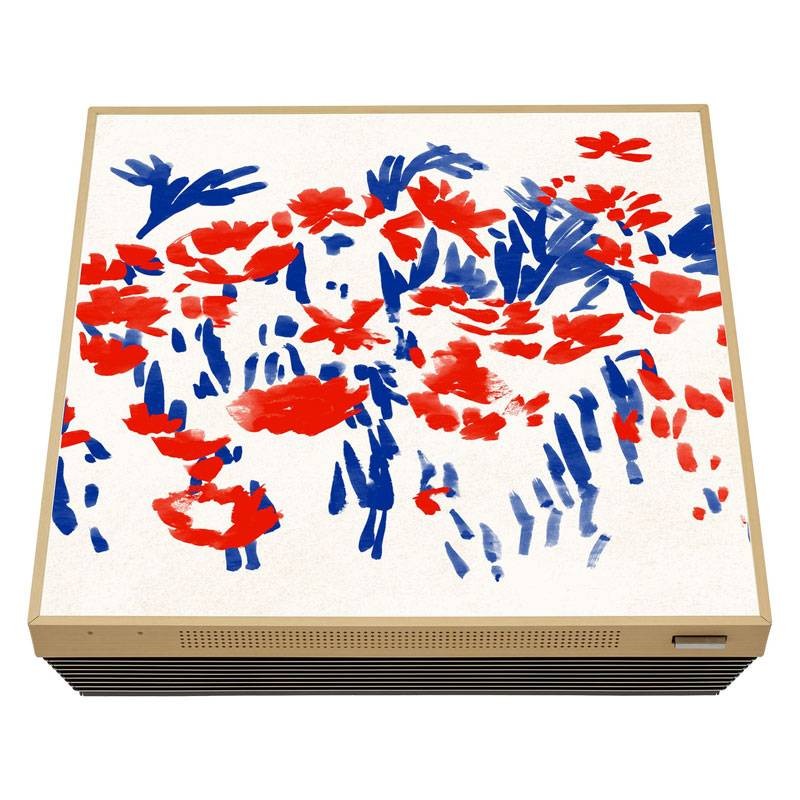

The LG ARTCOOL Gallery's customizable front panel allows you to transform the air conditioner into a true piece of furniture. You can insert photos, posters or artwork, creating a unique piece that complements any room. The elegant wooden frame enhances the aesthetics, making it ideal for living rooms, bedrooms and offices.
Structure with high-quality materials
Indoor Unit for Wall Installation ,for R32 LG type systems,consisting of galvanized steel inner support frame and shockproof plastic outer shell. Front panel with customizable Frame, with wood-colored Frame with magnetic bottom profile. Air intake located at the top of the front panel, with three-directional supply (RIGHT,LEFT,LOWER). Multi-row heat exchanger with aluminum finned copper tubes refrigerant control via electronic expansion valve located on the outdoor unit.
Choose how you want to manage airflow with Lg Artcool
3D airflow for uniform cooling
The square shape of LG ARTCOOL Gallery allows air to be distributed in three directions, ensuring uniform cooling throughout the room. This system ensures even diffusion, avoiding annoying direct air jets and improving living comfort.
Pleasant freshness with indirect airflow
Thanks to the hidden baffle, the air conditioner spreads a gentle, even breeze, avoiding strong drafts and maintaining optimal comfort. This feature is especially useful in warmer seasons, when gradual and natural cooling is desired.
Lg Gallery: Antibacterial and anti-humidity
Advanced hygiene and cleaning with Freeze Cleaning
Freeze Cleaning technology keeps the inside of the unit clean at all times, eliminating bacteria, dust and contaminants. The system freezes, thaws and dries the heat exchanger, removing agents that could cause odors and reducing the need for manual maintenance.
Auto Clean+ for consistently healthy air
After each use, the Auto Clean+ function automatically removes residual moisture, preventing the growth of mold and bacteria. The process takes up to 20 minutes, with the option to adjust the air volume for faster cleaning or quieter operation.
Smart Control with ThinQ® Integrated Wi-Fi
With ThinQ® technology, you can control your LG ARTCOOL Gallery directly from your smartphone or tablet. The LG ThinQ® app allows you to adjust temperature, monitor energy consumption, and schedule air conditioner operation wherever you are.
Built-in Wi-Fi allows you to connect your air conditioner to leading voice assistants, such as Google Assistant and Amazon Alexa, for even more intuitive control via voice commands. Smart management improves daily comfort by optimizing consumption and adapting to your needs.
Key Features Lg Artcool Gallery Photo
- Customizable panel to display images, photos or artwork.
- 3D airflow with even distribution in three directions.
- Indirect airflow for gentle and comfortable cooling.
- Freeze Cleaning for deep and effective interior cleaning.
- Auto Clean+ for automatic removal of moisture and bacteria.
- Wi-Fi control via app for smart and remote management.
Lg Dual Artcool Technical Specifications
9000BTU indoor unit
| Feature | Value |
|---|---|
| Cooling Capacity Nominal/Min. | 2.600 / 890 W |
| Annual Energy Consumption Cooling Nominal/Min | 623 / 200 W |
| Max Cooling Capacity | 3.700 W |
| Max Heating Capacity | 4.100 W |
| Nominal Heating Capacity/Min | 3.300 / 890 W |
| Annual Energy Consumption Heating Nominal/Min | 808 / 200 KWh |

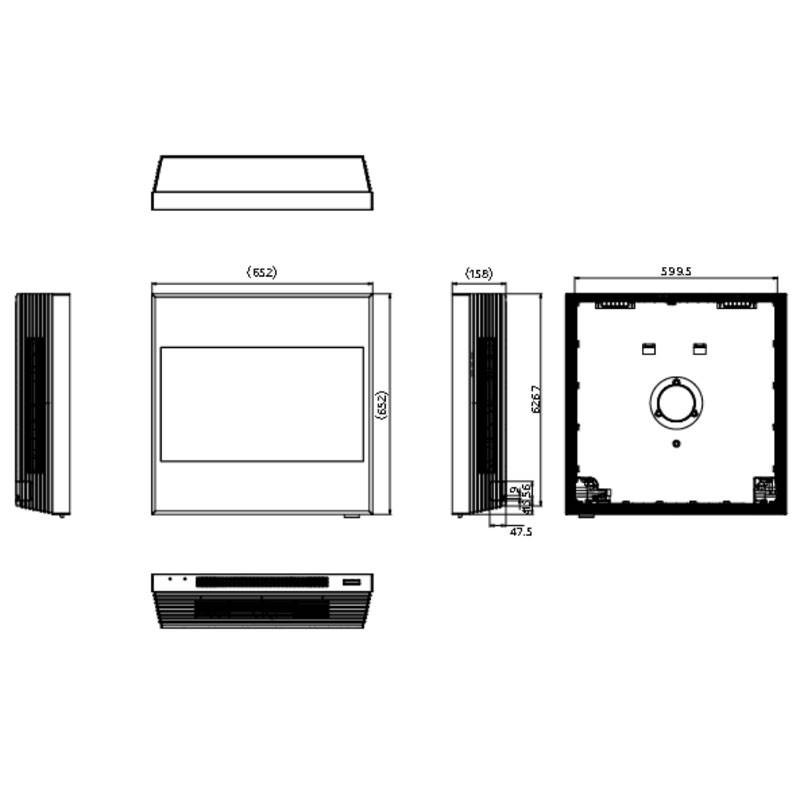

| Dimensions (W x H x D) | 652 x 158 x 652 mm |
| Weight | 16.7 kg |
| Nominal Input Voltage | 220 ~ 240 V / 50 Hz |
| Refrigerant Type | R32 |
| Sound Power Cooling |
|
| Sound Power Heating |
|
| Product Type | Wall |
| Air Conditioner Type | H/P |
12000BTU Indoor Unit
| Feature | Value |
|---|---|
| Cooling Capacity Nominal/Min | 3.700 / 890 W |
| Annual Energy Consumption Cooling Nominal/Min | 1057 / 200 W |
| Max Cooling Capacity | 4.000 W |
| Max Heating Capacity | 4.700 W |
| Nominal Heating Capacity/Min | 4000 / 890 W |
| Annual Energy Consumption Heating Nominal/Min | 1078 / 200 KWh |
| Dimensions (W x H x D) | 652 x 158 x 652 mm |
| Weight | 16.7 kg |
| Nominal Input Voltage | 220 ~ 240 V / 50 Hz |
| Refrigerant Type | R32 |
| Sound Power Cooling |
|
| Sound Power Heating |
|
| Product Type | Wall |
| Air Conditioner Type | H/P |

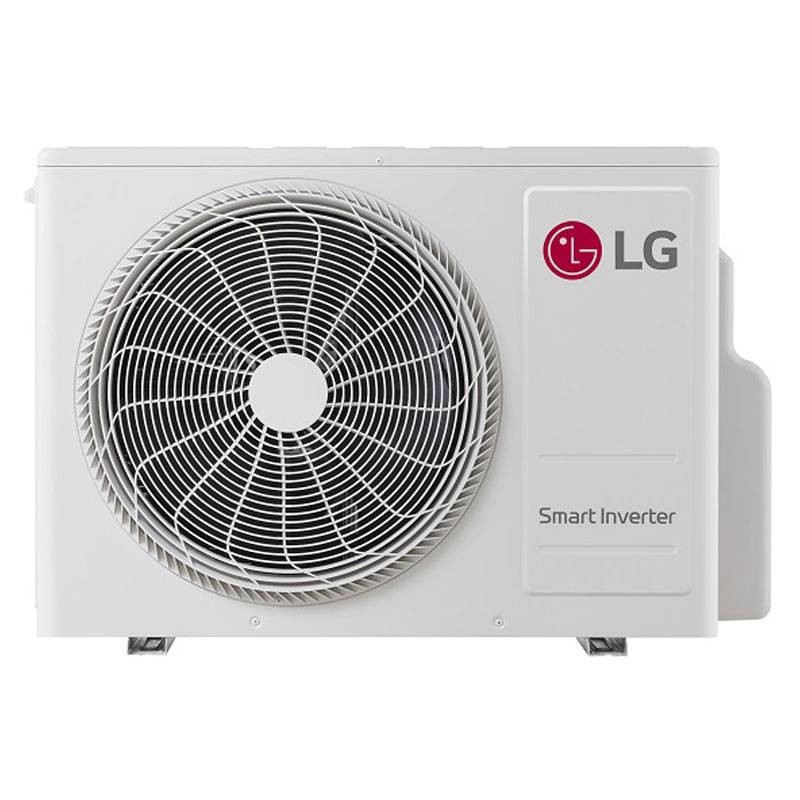

Outdoor unit 4.1kW 2 connections
| Feature | Description |
|---|---|
| Power supply | 1 Ø / 220~240V / 50Hz |
| Cooling Capacity (Min - Nom - Max) | 0.88 ~ 4.10 ~ 4.72 kW |
| Heating Capacity (Min - Nom - Max) | 0.97 ~ 4.69 ~ 5.39 kW |
| Power Consumption Cooling (Min - Nom - Max) | 0.23 ~ 0.99 ~ 1.39 kW |
| Heating Power Consumption (Min - Nom - Max) | 0.24 ~ 1.07 ~ 1.46 kW |
| Max Absorbed Current | 13 A |
| Dimensions (W x H x D) | 770x545x288 mm |
| EER / COP | 4,10/4,40 |
| SEER / SCOP | 8.60 / 4.61 |
| Energy Efficiency Class (Raff / Risc) | A++ / A++ |
| Weight | 32.5 kg |
| Color | Gray |
| Sound Pressure Level Cooling (Nom) | 45 dB(A) |
| Sound Pressure Level Heating (Nom) | 48 dB(A) |
| Sound Power Level (Max) | 60 dB(A) |
| Fan Type | Helical with BLDC motor |
| Ventilation Capacity | 35 m³/min |
| Compressor Type | Twin Rotary |
| Number of Compressors | 1 |
| Refrigerant | R32 |
| GWP | 675 |
| t-CO₂ eq | 0,702 |
| Amount of Refrigerant Precharged | 1040 g |
| Refrigerant Control | EEV (Electronic Expansion Valve) |
| Liquid Piping Connection | 6.35 mm (1/4") x2 |
| Gas Piping Connection | 9.52 mm (3/8") x2 |
| Maximum Number of Connectable Indoor Units | 2 |
| Maximum Overall Length of Piping | 30 m |
| Maximum Length Single Piping | 20 m |
| Length of Piping with Precharge | 30 m |
| Increasing Refrigerant | 20 g/m |
| Maximum Allowable Height Difference (U.Int - U.Est) | 15 m |
| Minimum Single Pipe Length | 3 m |
There are no reviews
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 9+12 BTU
- System: Dualsplit
- WIFI: Integrated
- Room Size: 35m² + 27m²
- Energy class: A++
- Series: Artcool
