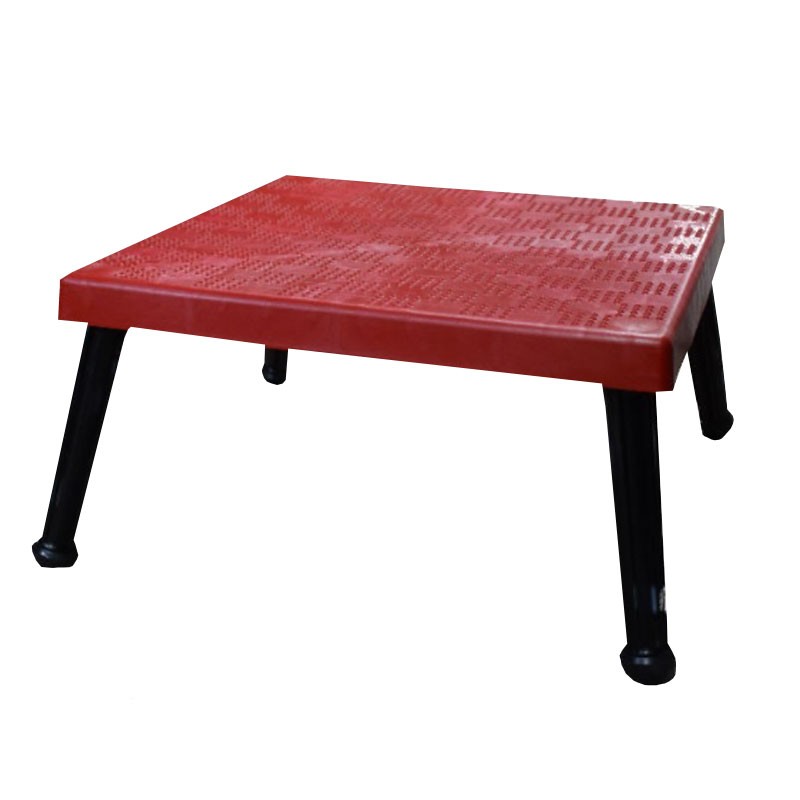

Italweber insulating platform maximum voltage of use 30kV 1910040
ITW 1910040
8024873003625
Italweber insulating footboard, with the following characteristics:
- Working voltage: 30kV
- Insulation voltage: 95kV
- Leakage current: < 0,5mA
- Type WI30
- For medium voltage applications
- Equipped with four 260 mm high feet
![](https://www.elettronew.com/45495-large_default/italweber-insulating-platform-maximum-voltage-of-use-30kv-1910040.jpg)
Italweber insulating platform maximum voltage of use 30kV 1910040
€83.72
€83.72
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 13
The feet are made of highly insulating and resistant material, and can be screwed on at an angle to make the platform non-tilting.
Features:
- Italweber series
- Material: polyester reinforced with glass fibers
- Platform dimensions: 500 x 500 x 4 mm
- Non-slip platform surface
- Maximum load: 200 kg
Data sheet
- Type:
- Stools
