BM M8 H35 polyester red insulator and spacer QHEP03508

Bm
Bm
BMM QHEP03508 8013629262232

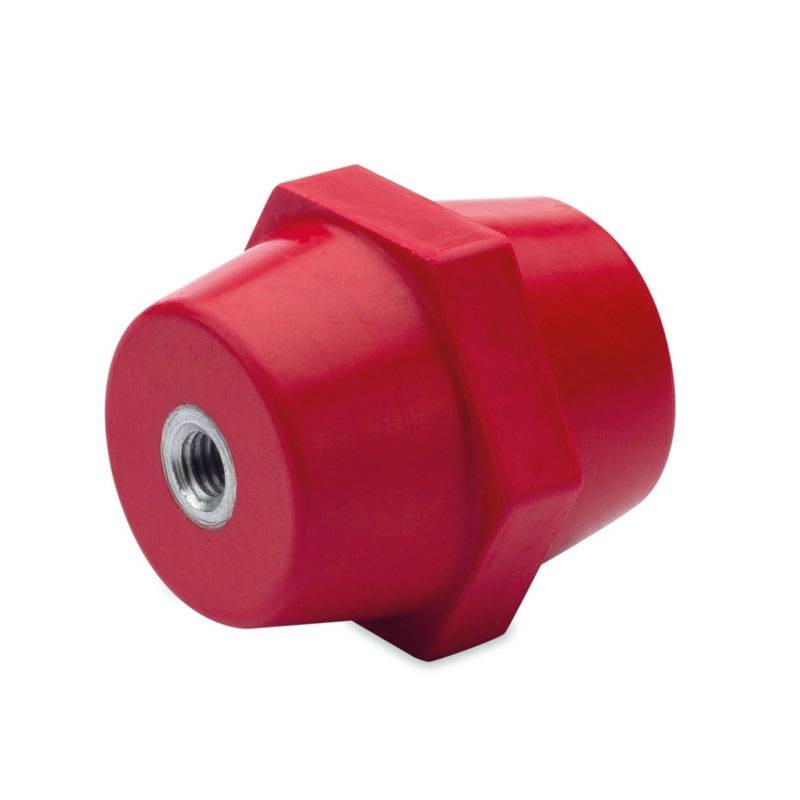

Red polyester insulator and spacer with the following features:


  • Thread: M8
  • Tightening torque: 15 Nm
  • AC voltage: 1.4 kV
  • DC voltage: 1.9 kV
  • Tensile strength: 670 daN
  • Flexural strength: 250 daN
  • Insulation material: red polyester and glass fiber
  • Insert material: galvanized steel threaded according to ISO standards
  • Self-extinguishing level: UL 94 V0
  • Operating temperature: -40 °C to +135 °C

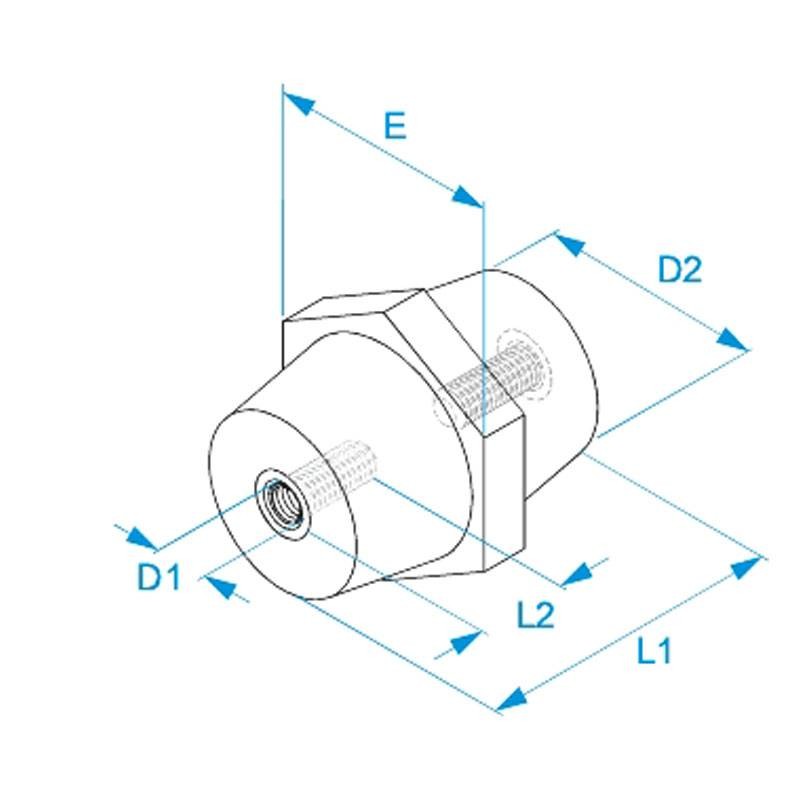

  • Dimensions: 35x12x32x26 mm (L1-L2-key E-D2)


Ideal for: support of threaded and drilled copper bars.
