Wigam 5/16 SAE hoses for R134a and R1234yf 1500mm 3pcs 06080010

Wigam
Wigam
WIG 06080010

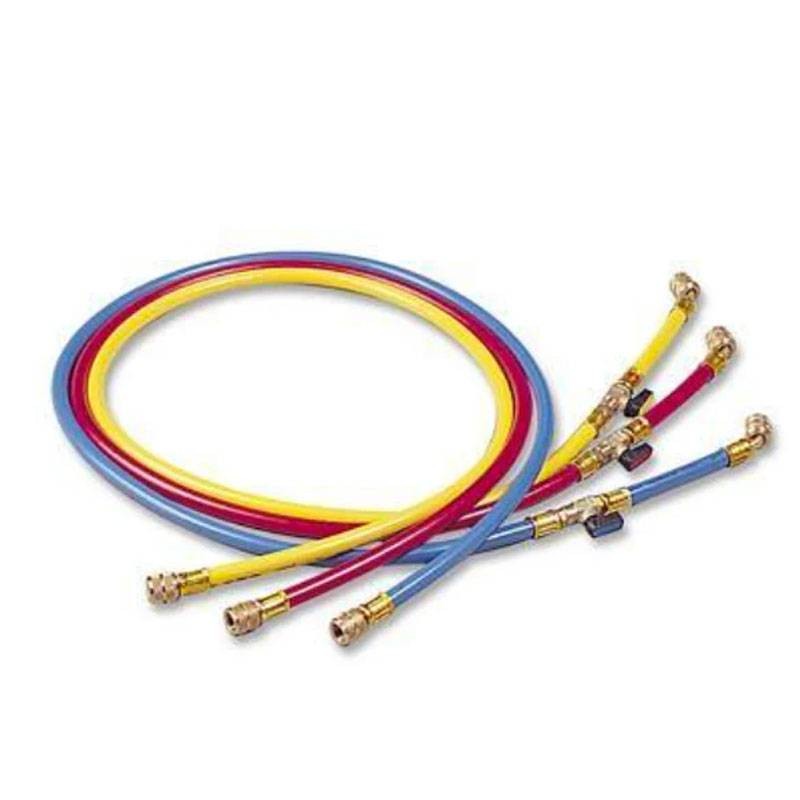

Wigam hoses, intermediate valve and depressor. Reinforced, low permeability, ideal for R134a and R1234yf systems, with the following characteristics:

  • Connections: 5/16 inch SAE straight x 5/16 inch SAE 45 degrees

  • Length: 1500 mm

  • Working pressure: 5.6 Mpa

  • Burst: 28 Mpa

  • Compliant with: SAE J2196 / R134a and SAE J2888 / R1234yf

  • Pack of 3 pieces
Do you have questions about this product or did you not find what you were looking for? Ask us!
Wigam 5/16 SAE hoses for R134a and R1234yf 1500mm 3pcs 06080010
€86.75
€86.75

€86.75
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€86.75

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Wigam GY reinforced hoses for refrigeration systems

Professional 3-hose set for technical applications

Wigam's 3GYSA/5-5/56V4/BRY set includes three GY series hoses with a length of 1500 mm each, designed for refrigeration and air conditioning systems. With 5/16 SAE connections (one straight, one 45-degree), intermediate valve and depressor, these hoses ensure maximum practicality of use in any technical context.

Maximum strength and operational safety

Constructed from reinforced materials and equipped with a low-permeability internal barrier, Wigam hoses offer an operating pressure of 5.6 MPa and a burst pressure of as much as 28 MPa. They are ideal for applications requiring high performance and safety, even under extreme conditions.

High performance in wide thermal range

These hoses are designed to operate over a wide temperature range, from -40 to +120 degrees. A key feature for systems subject to varying thermal conditions, such as those used in automotive or industrial applications.

Compatible with R134a and R1234yf refrigerants

Fully compliant with SAE J2196 standards for R134a and SAE J2888 for R1234yf, GY series hoses are compatible with the main refrigerant gases used in modern systems. This makes them a versatile and reliable choice for refrigeration technicians and HVAC maintainers.

Technical Specifications Flexible Hoses for R134a and R1234yf Wigam

Feature Value
Type Hose set with valve and depressor
Quantity 3 hoses
Length 1500 mm
Connections 5/16 SAE straight x 5/16 SAE 45 degrees
Working pressure 5.6 MPa
Burst pressure 28 MPa
Working temperature -40/+120 degrees
Refrigerant compatibility R134a / R1234yf
Standards SAE J2196 - SAE J2888
Features Reinforced tube, low permeability, colored rubber coating
