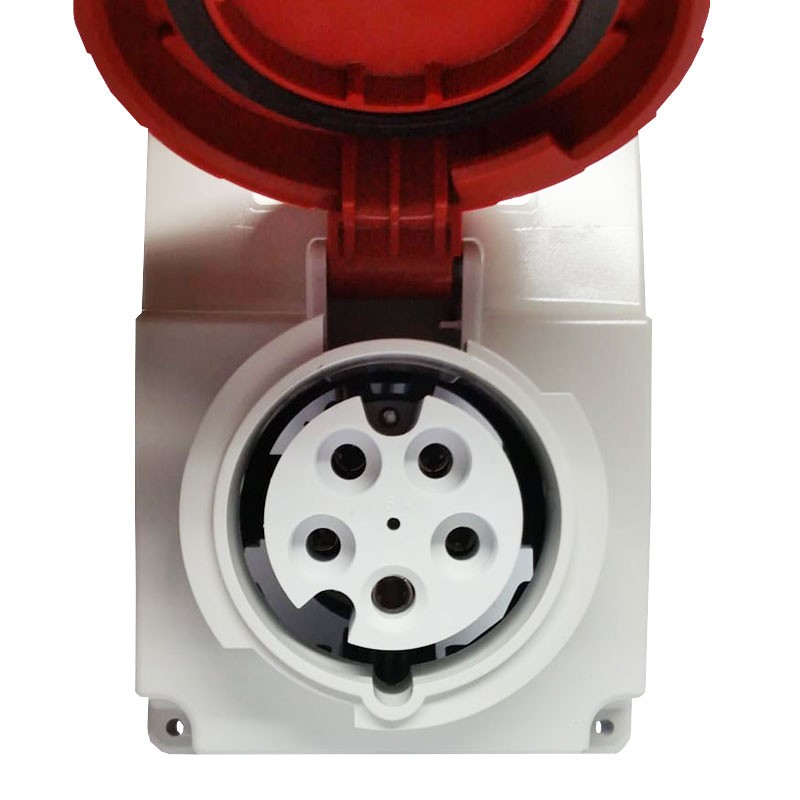

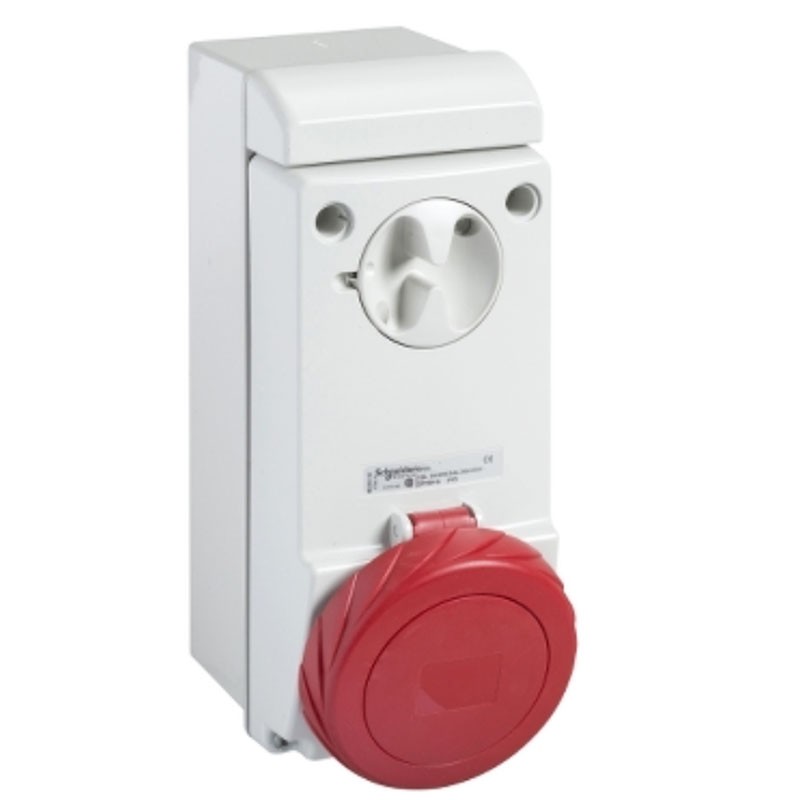

Schneider interlocked socket with IP65 box 3PNT 16A 380V 83086
SNR 83086
3303430830863
Unika Schneider interlocked box wall outlet with the following features:
- Rated operating voltage 380/415V
- Rated current 16A
- Network frequency: 50/60 Hz
- Network type: AC
- Poles: 3P+N+T
- Degree of protection IP65 according to IEC 60529
- Plug, socket category: low voltage
€57.88
Items Available: 2
: 1
Features:
- Schneider Series
- Mounting mode: wall-mounted
- Earth terminal position (clockwise): 6 h
- Type of protection: without protection
- Plug, socket material: housing: self-extinguishing technopolymer
- Contact material: pins: nickel-plated brass
- Connections - terminals: Studs
- Maximum cable cross-section: 10 mm²
- Maximum cable outer diameter: 25 mm²
- Cable entry: cable collar
- Weight: 1.037 kg
- Base dimensions: 103 x 225 mm
- Dimensions: height 225 mm - width 103 mm - depth 151 mm
- Color gray (RAL 7035)
- Color voltage code: red
- Reference standards: IEC 60309-1 - IEC 60309-2
- Degree of protection IK09 in accordance with EN 62262
- Fire resistance: 750 °C in accordance with IEC 60695-2-11
- Relative humidity: 50 % at 40 °C - 70 % at 30 °C - 90 % at 20 °C
- Ambient air temperature for operation: 35 °C ( 86400 s ) / -25 +40 °C
