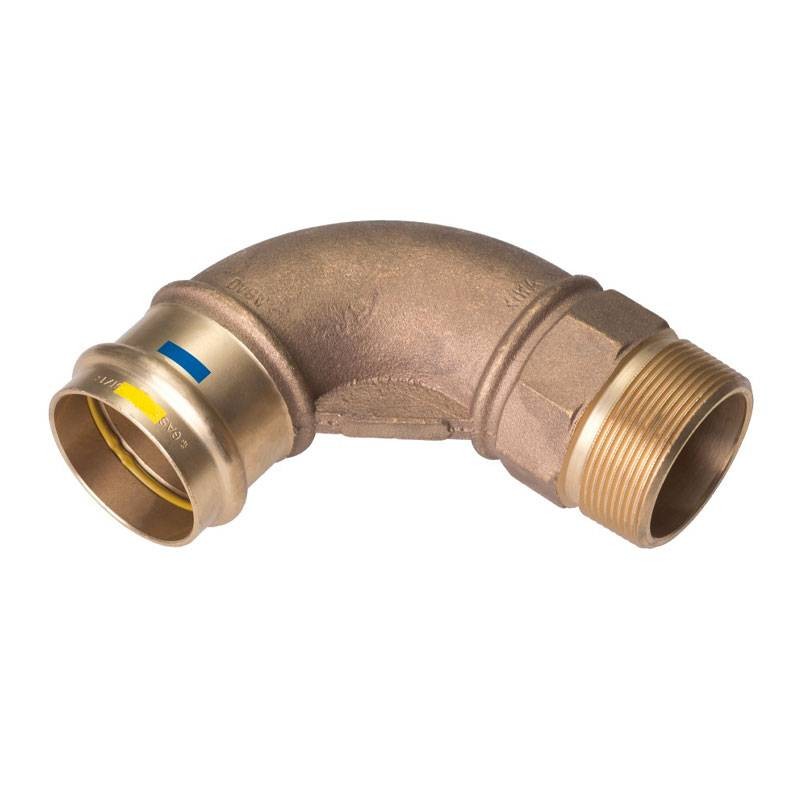

IBP 90 degree threaded bend for water and gas F/M D 18 mm x 3/4 P14001G01806000
IBP P14001G01806000
5059735121714
IBP Banninger B One 90-degree bend for water and gas with the following features:
- Connection: Female/Male threaded
- Diameter: 18 mm x 3/4
- Opening: 90 degrees
- Material: Bronze
B One fittings are quick and easy to install and optimize installation time. A single pressing cycle allows for a permanent, secure and guaranteed joint over time. Installation requires no special permits and equipment and is suitable for Water and Gas.
€18.46
Items Available: 10
: 9
Main advantages:
- One fitting for Water and Gas
- Easy to install, reduces time and cost
- Goodbye to open flame, hot work permit, and nitrogen insufflation
- System to identify unpressurized terminals (0.1 to 6.0 bar)
- Made in accordance with EN 1254-7
- No consumables required for soldering or brazing
Fitting marking: B One fittings have two yellow and blue markings on the fitting body: yellow indicates that the fitting is safe for gas applications, this is also supported by DVGW and KIWA markings; blue indicates suitability for hot and cold water applications.
Applications:
- Natural gas, LPG, fuel oil systems
- Hot and cold water systems
- Heating systems
- District heating
- Rainwater harvesting systems
- Compressed air (Classes 1-3)
- Industrial and process water
- Vacuum piping
- Shipbuilding piping
