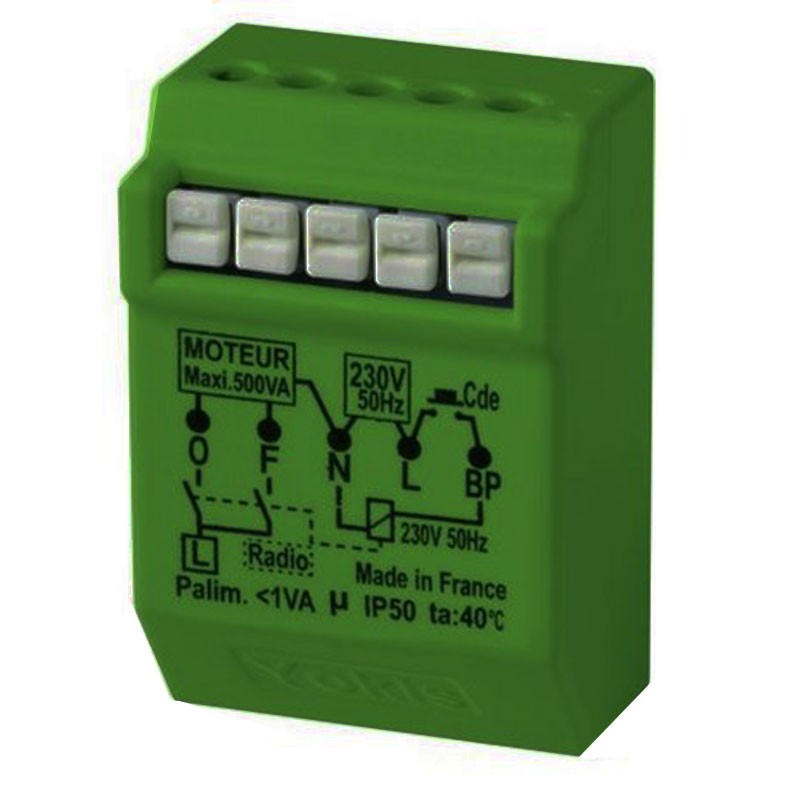

Yokis Urmet MVR500ERP 5454467 roller shutter radio control module
UTD 5454467
3760054544673
Yokis Urmet roller shutter module for radio recessed installation, with the following features:
- Mains voltage: 230V ~ (+10% - 15%) - 50Hz
- Power: 3 wires motor, 230V~, 2A max.500VA
- Environment temperature: -20°C + 50°C
- Consumption: < 1VA - < 0.3W
- Relative humidity: 0 to 70%
- Frequency: 2.4 GHz
- Transmission: Bidirectional, with LED notification on the transmitter
- Memory of radio links preserves data in case of lack of Network voltage
- Dimensions (WxHxD): 33,5 x 48 x 22,5 mm
€82.59
Items Available: 16
: 2
Range: 250 meters in free field of view without obstacles. Range reduction in the presence of metal elements, crossing walls or bulkheads.
Radio module for controlling rolling shutters. Can be controlled by an unlimited number of transmitters. Receivers can be connected together to realize group and centralized commands. The receivers can be mixed, radio and wire, to meet the needs of any type of system. Its integrated torque control prevents damage to the shutter or motor in the event of an obstacle. The module is compatible with all types and brands of roller shutters with 3-wire motors (Somfy, Aprimatic, Bubendorff, etc.). Built-in daily programming: allows you to configure multiple areas, create scenarios, add a remote control.
Additional information: The use of the Yokis Radio Bus allows the centralization of shutters via radio. Mixed wired and radio system: the modules have the possibility of a double operation: they can be piloted via radio and, at the same time, via wire from local buttons.
There are no reviews
Data sheet
- Type: Roller shutter modules
