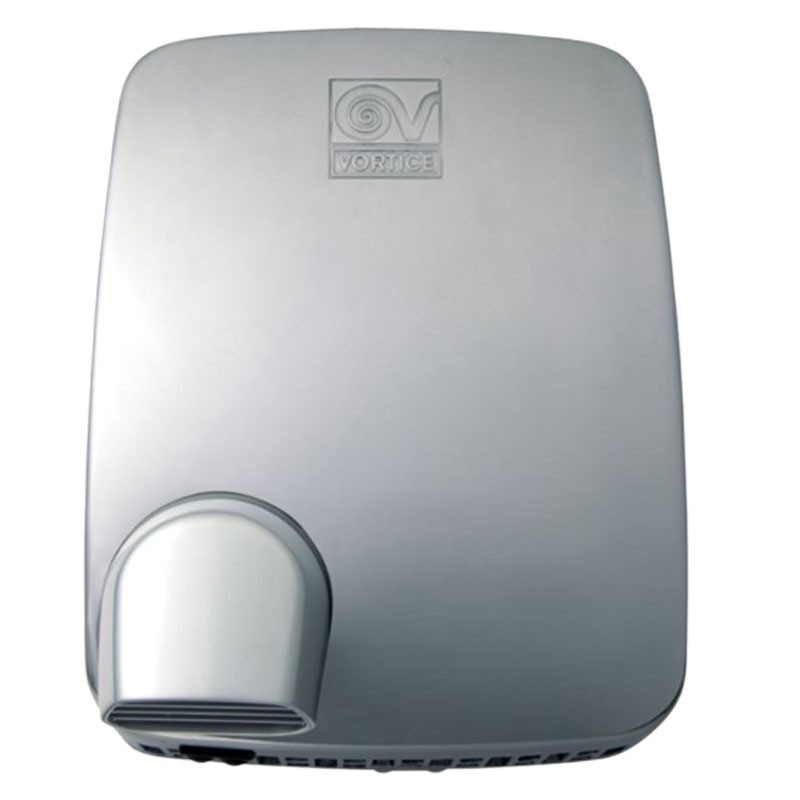

Vortice Automatic Hand Dryer METAL DRY ULTRA 19230
VOR 0000019230
8010300192307
The Vortice METAL DRY ULTRA is a powerful and durable automatic hand dryer designed for intensive use in public and commercial environments. Equipped with a die-cast aluminum lid and advanced technology, it provides excellent performance, durability and maximum safety:
- Front cover: Brushed die-cast aluminum with vandal-proof screws
- Air flow rate: 190 m³/h
- Maximum power: 1950 Watt
- Activation: Adjustable infrared sensor (0-35 cm)
- Safety: IPX4 and IK10 degree of protection, class II insulation
- Anti-vandal feature: Automatic shutdown in case of voluntary or accidental blockage
€529.58
Items Available: 1
Vortice METAL DRY ULTRA Automatic Hand Dryer 19230
The Vortice METAL DRY ULTRA is a powerful and durable automatic hand dryer designed for intensive use in public and commercial environments. Featuring a die-cast aluminum lid and advanced technology, it provides excellent performance, durability and maximum safety.
- Front cover: Brushed die-cast aluminum with vandal-proof screws.
- Air flow rate: 190 m³/h.
- Maximum power: 1950 watts.
- Activation: Adjustable infrared sensor (0-35 cm).
- Safety: IPX4 and IK10 degree of protection, class II insulation.
- Vandal-resistant feature: Automatic shutdown in case of intentional or accidental blockage.
Rugged, anti-vandal design.

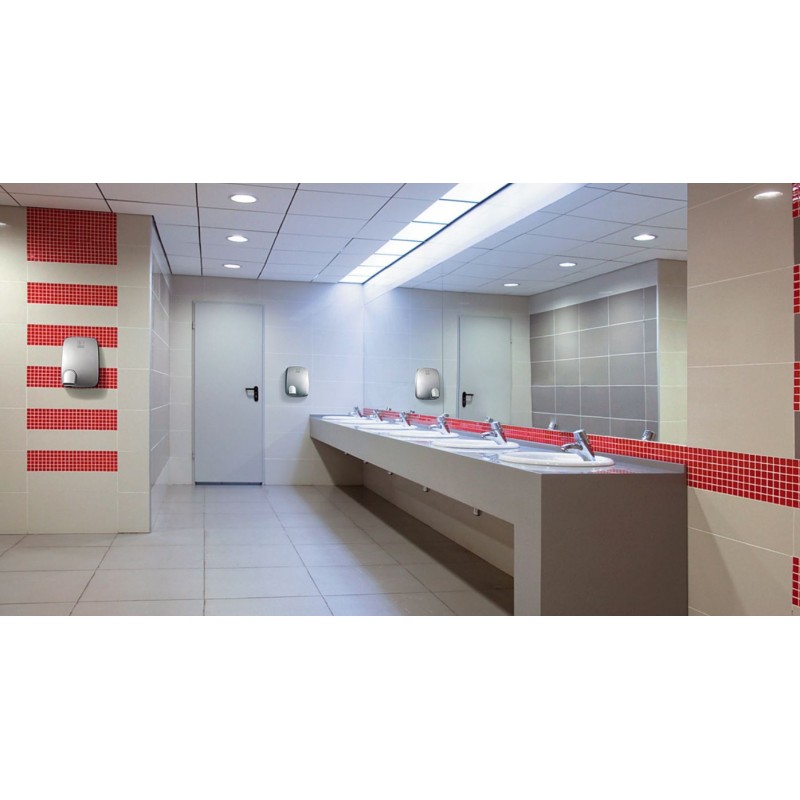

The brushed die-cast aluminum front cover provides sturdiness and vandal resistance, thanks in part to the anti-vandal screw lock. The wall flange made of plastic material (talc-filled PP) ensures stable and secure installation. This model is ideal for public environments, such as bathrooms in airports, stations and shopping malls.
High performance and optimized airflow
With a maximum flow rate of 190 m³/h and a power output of 1950 watts, the METAL DRY ULTRA ensures fast and effective drying. The 360° swiveling diffuser enables precise airflow direction, while the thermally protected AC motor ensures continuous and reliable operation.
Advanced safety and energy saving
This hand dryer is equipped with:
- Adjustable infrared sensor: Automatic activation with adjustable distance from 0 to 35 cm.
- Safety devices: Protection by thermal fuse and resettable thermal limiter.
- Low-power stand-by: Power of only 0.2796 W in stand-by mode.
With IPX4 (splash-proof) and IK10 (impact resistance) rating, the METAL DRY ULTRA offers maximum safety in humid and high-traffic environments.
| Feature | Value |
|---|---|
| Certified safety | IMQ |
| Frequency (Hz) | 50/60 |
| Impact protection grade | IK10 |
| Degree of Protection | IPX4 |
| Insulation | II° class |
| Weight | 7 pounds |
| Max power consumption | 1950 watts |
| Motor Power | 140 watts |
| Voltage | 220/240V |
| Max flow rate (l/s) | 53 |
| Max flow rate (m³/h) | 190 |
| Stand-by power | 0,2796W |
| Sound pressure Lp [dB (A)] 1m | 69,8 |

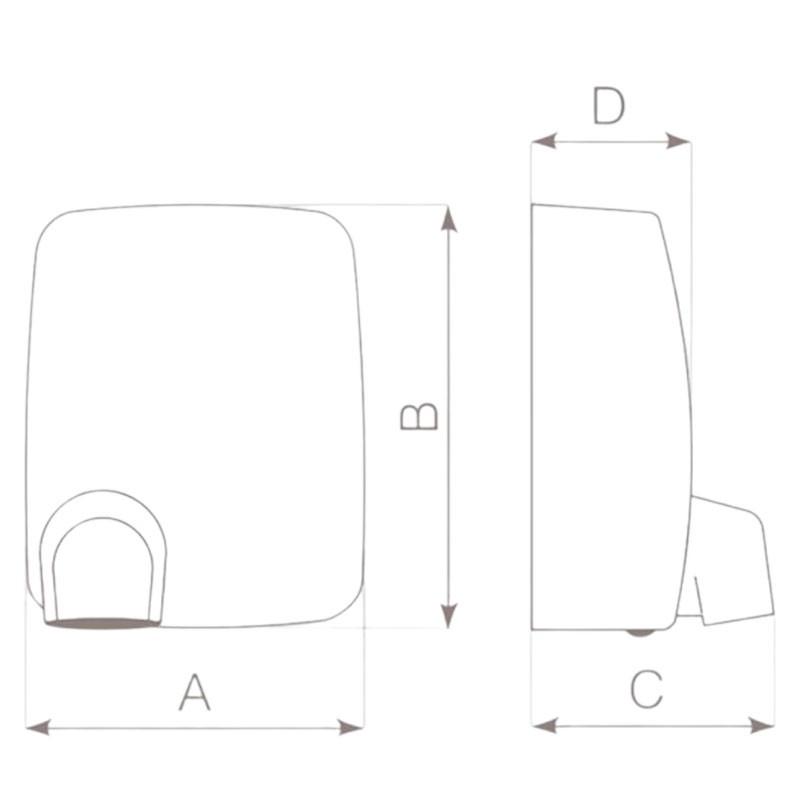

| Size in mm - A | 280 |
| Dimension in mm - B | 355 |
| Dimension in mm - C | 202 |
| Dimension in mm - D | 139 |
There are no reviews
Data sheet
- Type: Hand dryers
- Model: Automatic
