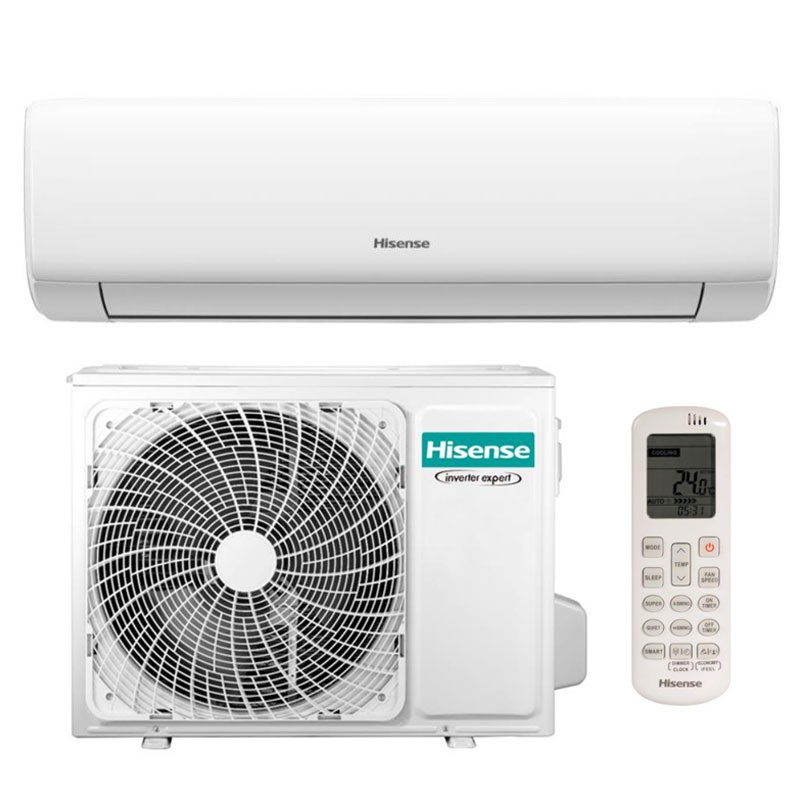

Hisense WINGS air conditioners are a concentration of Technology and help to create the best  climate in the environment in which they are installed.

Features:

• New ecological gas R-32
• Built-in WI-FI: Wi-fi card is included in the air conditioner
• LED display
• Low temperature heating
• SLEEP function: Sleep is vital for our body and a comfortable rest is good for our health. Hisense air conditioners adapt to everyone's sleep. 4 Sleep modes
• Timer 24h: In Hisense air conditioners this function allows you to select the time to turn on and off the air conditioner over a period of 24 hours.
• i-FEEL function: The sensor inside the remote control is able to detect the surrounding temperature and transmit this information to the indoor unit. The indoor unit operates according to the detected temperature. Intelligent temperature control ensures a more comfortable environment and more precise temperature control, saving energy.
• Super Cooling: By selecting the Super function from the remote control, the air conditioner quickly reduces the temperature in the room while increasing the cooling capacity by 25%.
• SMART function: If you press the Smart button on the remote control, the air conditioner will operate in the most comfortable mode based on the room temperature.
• Special 8°C restart: The special 8°C restart mode is very useful especially for homes located in areas with colder temperatures (and in second homes). During your absence the unit will start in heating mode as soon as it detects a temperature below 8°C allowing your rooms not to freeze and reducing the humidity level in the air.
• Carbon filter
• Quiet operation 16 dB(A)
• Auto vertical airflow regulation
• Super mode
• Auto Restart
• Dimmer

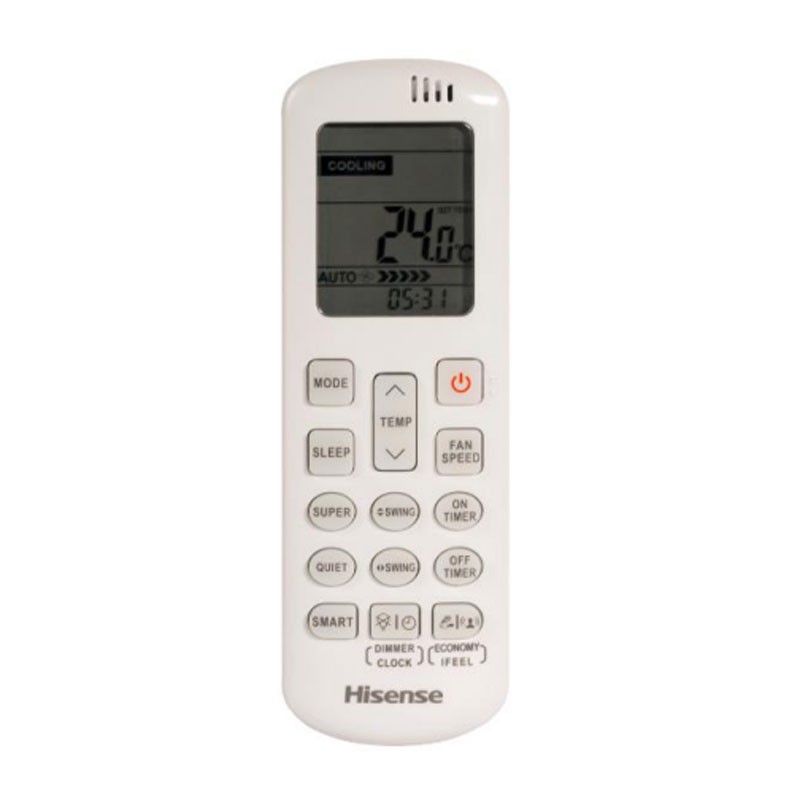

• Remote control with backlit display
• Removable and washable panel
• Activated carbon filters
• Anti-bacteria evaporator



Technical features



Cooling:

• Min/Max Capacity: 3.4 KW 1.0/4.00
• Rated input power: kW 1.14 (0.19-1.6)
• SEER 6.1
• Energy Class: A++
• EER 2,98
• Indicative annual energy consumption kW/a 195

Heating:

• Min/Max Capacity: 3.8 KW 1.0/4.2
• Rated input power: 1.05 (0.19-1.6)
• SCOP: 4.0
• Seasonal energy efficiency class A+
• COP 3.62
• Indicative annual energy consumption: kWh/a 945

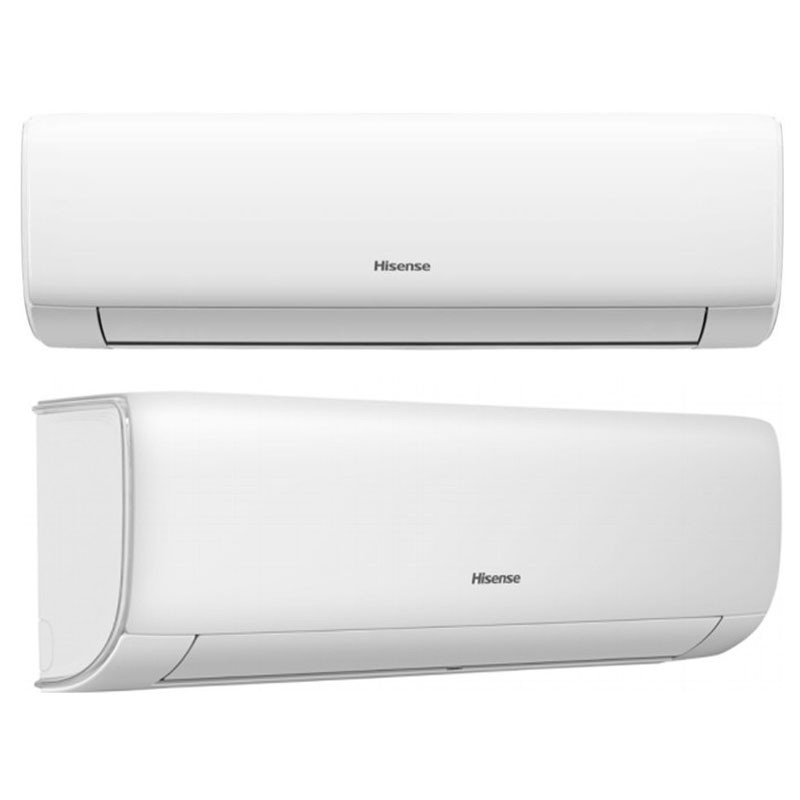

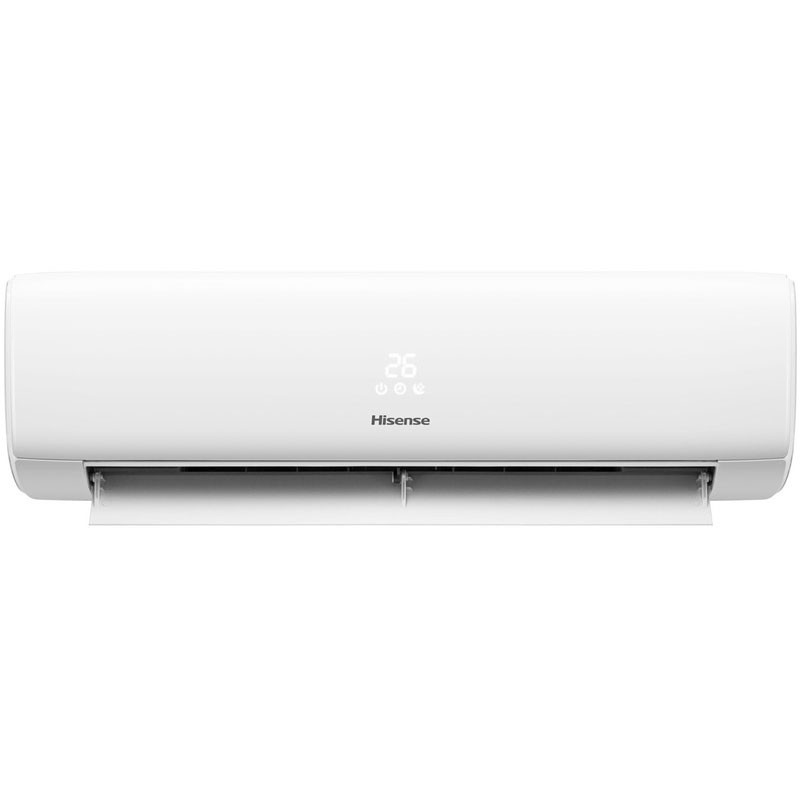

Indoor Unit Features:

• Dimensions: (WxHxD) 833x256x203 mm
• Weight 7,7Kg
• Processed air Max cubic meters/min 9.2
• Dehumidification capacity l/hr 1.2
• Sound pressure level Min-Max dBa 19-39
• Sound Power Level dBA (C-H) 56

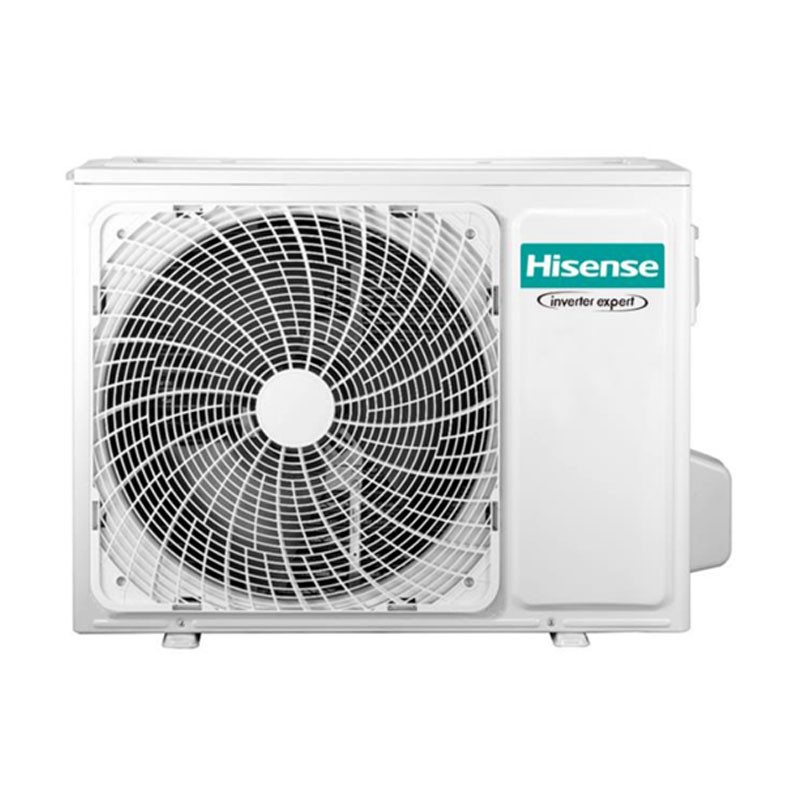

External Unit Features:

• Dimensions: (WxHxD) 660x483x240 mm
• Weight 24Kg
• Sound Pressure Level (C-H) dBa 47-54
• Sound Power Level dBA 62
• Power supply Single-phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
• Max/Min piping length 15 meters
• Max height difference between indoor/outdoor unit 5 meters
• Refrigerant Type: Gas R32
• Length of pipes without added charge 5 meters
• Precharge Kg TCO2Eq 0.39
• Additional refrigerant charge g/m 20
• Operating range in Cooling -15 - 43
• Operating range in heating mode -15 - 24

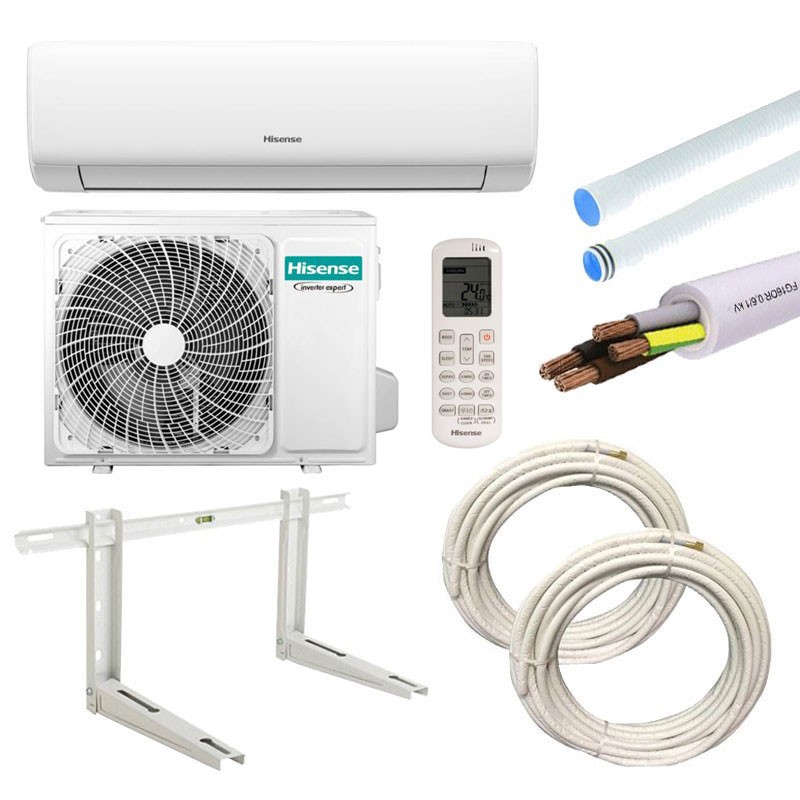

Specifications of the products included in the kit

Wall brackets for air conditioners 9000 / 12000btu for outdoor unit:

• Galvanised and powder coated steel brackets
• Shelves complete with quick-fit anti-vibration feet
• Stainless steel screws in the KLIMA STRONG INOX and KLIMA TOP STAINLESS STEEL items
• KLIMA STRONG and KLIMA HEAVY for non-standard machines
• KLIMA TOP shelf for highest quality
• Available vibration damping KLIMA GROUND and KLIMA FOOT brackets for floor installation
• White RAL 9002
• Arm length L1 420 mm
• Height 400 mm
• Bracket thickness 15/10 mm
• Length of cross bar 780 mm

10 metre double insulated, pressure resistant cable 5X1,5 mmq

Arnocanali condensate hose D. 17-20mm 10 metres:

• Corrugated BIESTRUSO anti-crush hose. Made with a double layer of POLYPROPYLENE for maximum safety when used under traces. Hose made of UV-stabilised polypropylene. Operating temperature - 30°C + 75°c.

Tecnogas FAST PIPE kit consisting of:

• 2 pipes 6 Mt long, one with internal thread x internal thread, diameter 1/4 (diameter 6.35) and one with internal thread x internal thread, diameter 3/8 (diameter 9.52), conical with copper seals. Suitable for 9000/12000btu air conditioning units.

Tube Features:

• Closed cell expanded polyethylene
• Barrier polymer
• 4-layer aluminium foil
• long chain polyamide
• high tenacity synthetic fibre
• anti-UV and anti-IR coating
• anti-UV film

Fittings: "propeller" brass: gauges, screwdrivers, crimps.
Application range refrigerant circuits F-gas with R410A-R32-R134A-R404A-R407C
Working temperatures -30°C/110°C (Max 130 C° non-continuous)
Maximum working pressure 100 Bar
