Hikvision Two-family IP Video Intercom Kit DS-KIS604-S/BI-FAMILY
HIK 305305100

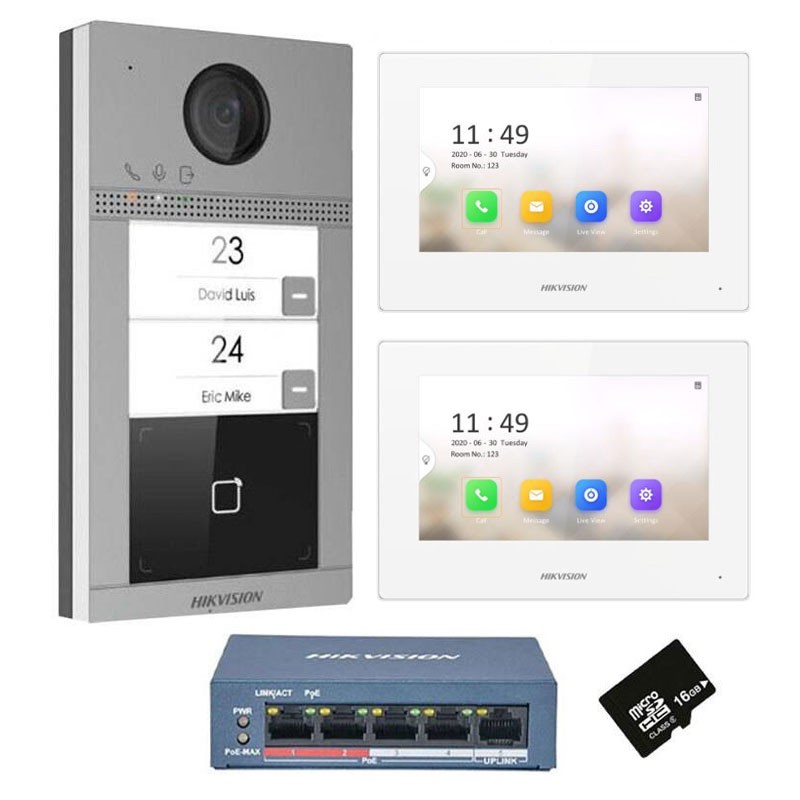

Hikvision DS-KIS604-S/BI-FAMILY duplex video intercom kit with IP system consisting of:
- 1 door station 2 buttons with integrated RFID DS-KV8213-WME1(C)
- 2 IP Indoor Video Intercoms KH6 series Touch-Screen 7 DS-KH6320-WTE1
- 1 16 GB TF card
- 1 standard 4-port PoE switch
€594.00
Items Available: 5
Specifications of the parts in the Kit:

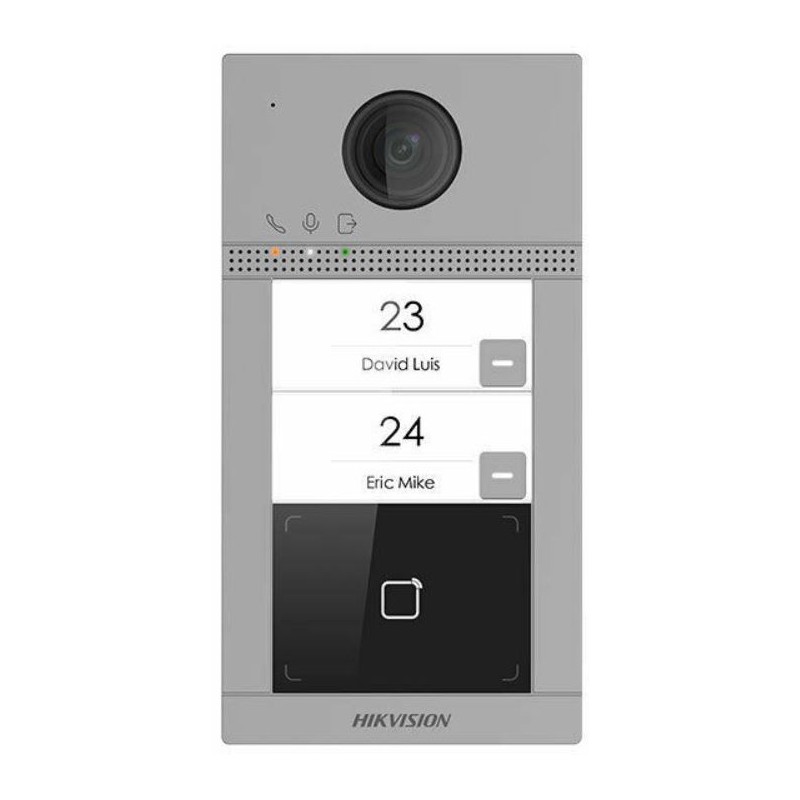

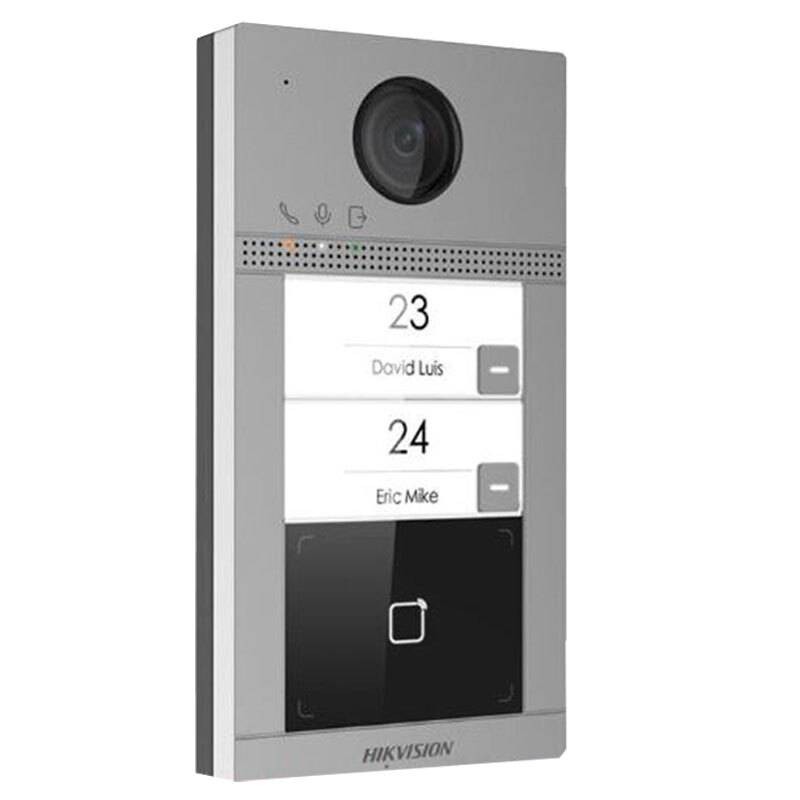

Metal door station with 2 buttons:
- 2 MP camera with IR supplement
- Two button nameplate design for easier calls
- Integrated card reader module
- Standard PoE power supply
- Higher level of protection IK08 and IP65 with aluminum alloy material
- Convenient mobile control via Hik-Connect APP
- Resolution Main stream: 1920 × 1080p and 1280 × 720p - Secondary stream: 640 × 480p
- FOV Horizontal: 124° Vertical: 75°
- Wide Dynamic Range (WDR) WDR digital/76.9 dB
- Light Supplement IR light, up to 3 m
- Network Protocol TCP/IP, RTSP
- Card Reading Frequency 13.56 MHz
- Wall Mounting
- Protective Level IP65, IK08
- Working Temperature -40 °C to 53 °C (-40 °F to 127.4 °F)
- Dimensions (W × H × D) 174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")

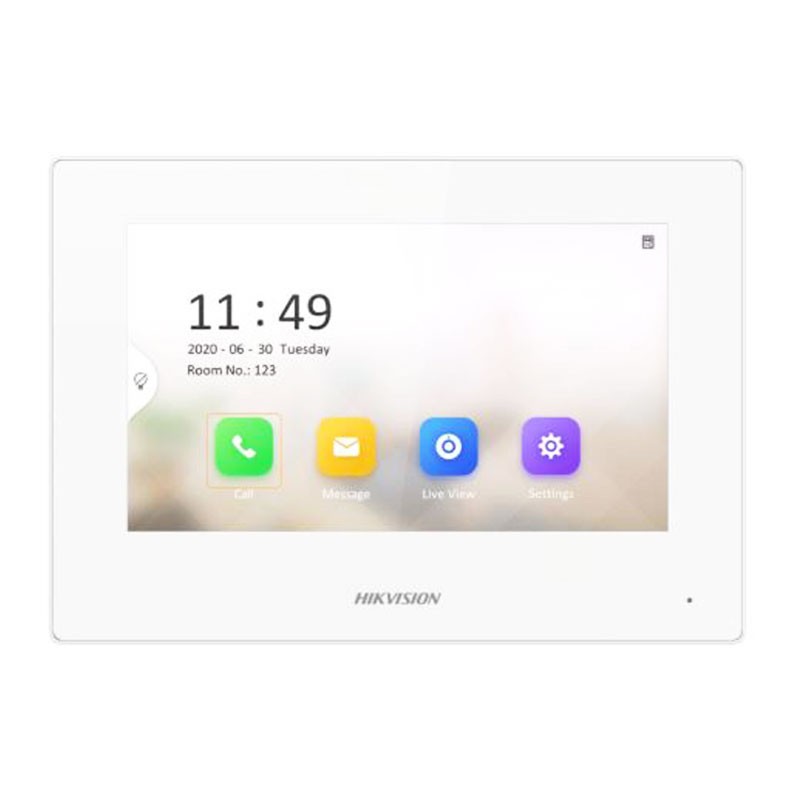

2x DS-KH6320-WTE1 IP KH6 Series Touchscreen colour indoor videointercoms:
- IP indoor station
- Touch-Screen 7 indoor station
- PoE standard (for E1) / Power over 2 wires (for E2) / 12 V DC, TF card, maximum support 32G
- 8-channel alarm input, 2 relay outputs, 1 RS485
- Remote unlock via client or APP
- Displays live video of connected door stations and cameras
- Supports WiFi network (for W version)
- Network Interface 1
- RS-485 1
- Alarm Input 4
- Lock Control 2
- Exit Button 2 Max
- Contact Port 2
- Power Interface 1
- Tamper 1
- TF Card 1 (Reserved)
- Screen 7 inch colorful TFT screen
- Screen Resolution 1024×600
- Operating Method Capacitive Touchscreen
- Audio Input Built-in omni-directional microphone
- Audio Output Built-in speaker
- Audio Quality Noise suppression and echo cancellation
- Audio Compression Standard G.711 U
- Audio Compression Rate 64 Kbps
- Network Interface 1 RJ-45 10/100 Mbps auto adaptive
- Wired Network 10/100 Mbps auto adaptive
- Wireless Network Wi-Fi 802.11 b/g/n
- TCP/IP Protocol, SIP, RTSP
- Power Consumption ? 6 W
- Power Supply Standard PoE, 12 V DC
- Working Temperature From -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimensions (W X D X H) 200 mm × 140 mm × 15.1 mm (7.9" × 5.5 × 0.6\")

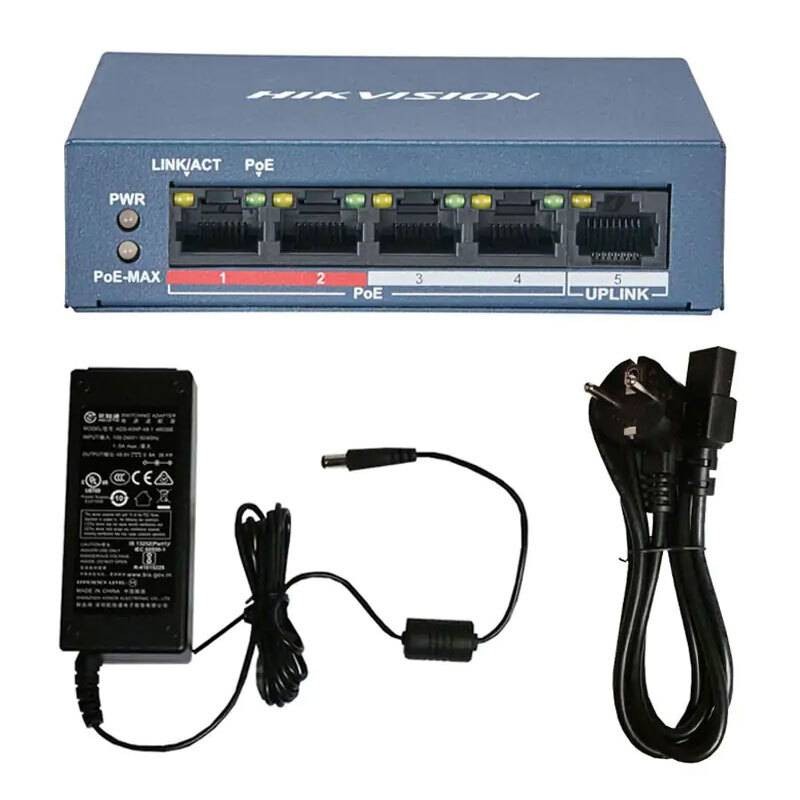

1 standard 4-port POE GIGABIT switch + 1 UPLINK DS-3E0505P:
- Designed for video data transmission
- 4 x 10/100/1000 Mbps Ethernet ports and 1 x 10/100/1000 Mbps uplink Ethernet port
- Available IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z network standards
- IEEE 802.3 af and high PoE power supply
- Store and forward switching
- Safe and reliable with 6 KV high surge protection
- Plug and play ensures simplicity and convenience

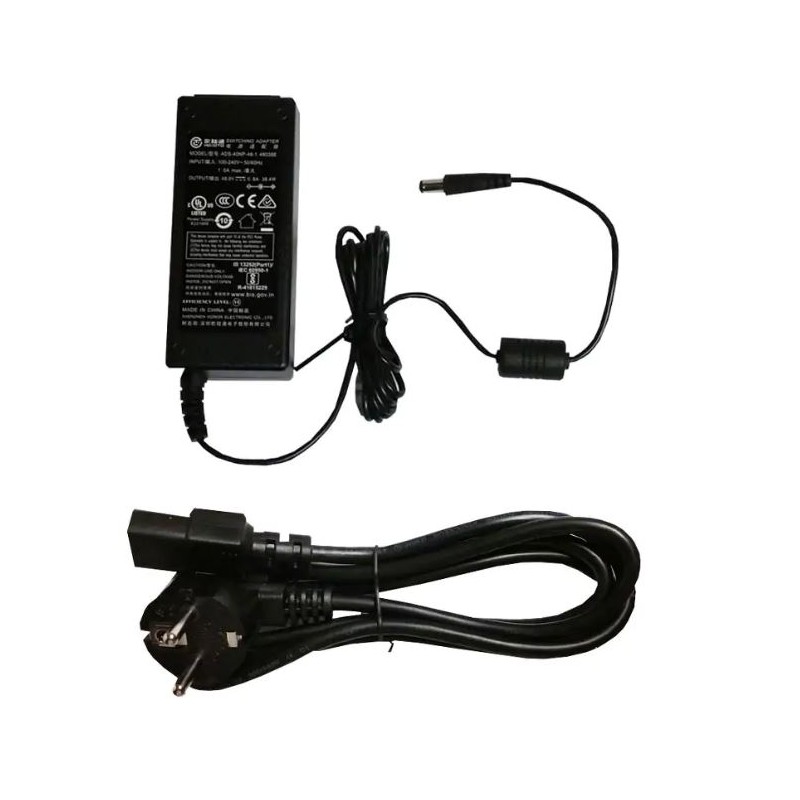

- Cable and power supply included
- Port Number 4 × Gigabit PoE ports and 1 × Gigabit RJ45 port
- Port Type RJ45 port, full duplex, adaptive MDI/MDI-X
- Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Modes Store and forward switching
- 2K MAC Address Table
- Internal Cache 1 Mbit
- Switching Capacity 10 Gbps
- Packet Forwarding Rate 7.44 Mpp
- PoE Standards IEEE 802.3af, IEEE 802.3at
- PoE Power Supply Pin End Range: 1/2(-), 3/6(+)
- Maximum Power Per Port 30 W
- PoE Power Budget 60 W
- Dimensions (W × H × D) 105 mm × 27.6 mm × 83.1 mm (4.1" × 1.1" × 3.3")
- Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity 5% to 95% (non-condensing)
- Gross Weight 0.84 kg (1.85 lbs)
- Net Weight 0.26 kg (0.57 lbs)
- Idle Power Consumption 5 W
- Shell Metal material, fanless design
- Operating Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity 5% to 95% (non-condensing)
- Power Supply 48 V DC, 1.35 A
- Maximum Power Consumption 60 W
There are no reviews
Data sheet
- KIT: Video Intercom Kits
- Model: Two-family house
- System: IP
- WIFI: No
