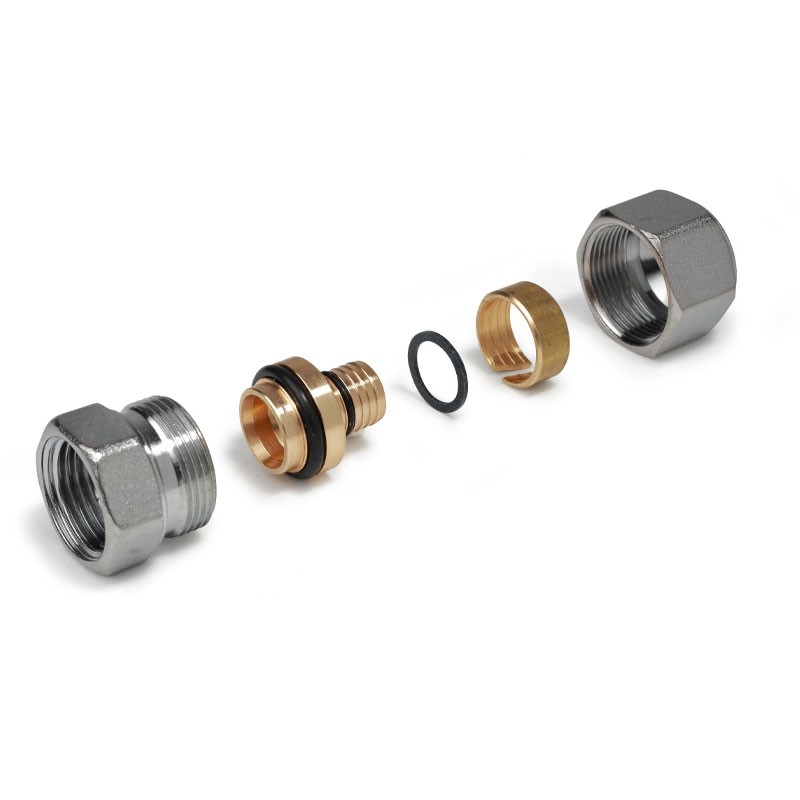

Giacomini threaded straight fitting for F 3/4 16x2 pipe R187FX096
GIM R187FX082
8009902218447
Giacomini threaded straight fitting for plastic or multilayer pipes, ideal for high-performance plumbing systems, with the following features:
-
Connection: Female/Female 3/4 inch
-
Compatible pipe diameter: 16x2 mm
-
Material: chrome-plated brass
-
Compatible: Plastic and multilayer pipes
-
Maximum working pressure: 10 bar
€2.88
Items Available: 217
: 54
Giacomini straight pipe fitting, chrome-plated brass, ideal for plumbing systems
The Giacomini female threaded straight pipe fitting is designed to ensure reliable and secure connections within civil and industrial plumbing systems. Compatible with plastic or multilayer pipes, this fitting is the ideal solution for installations that require efficiency, strength and ease of installation.
Quality materials for durable installation
Made of chrome-plated brass, the fitting offers high corrosion resistance and ensures long service life, even in humid or thermally changing environments. The black elastomer O-ring complies with EN 681-1 and ensures a perfect seal against leakage and seepage.
Easy and safe installation
Due to the careful design, the fitting is easy to install by following a few steps. The insertion of the pipe must be done with a clean and perpendicular cut, followed by basic operations such as deburring, calibration and lubrication to avoid damage to the sealing elements. The adapter snaps perfectly into the thermohydraulic distribution or regulation system, ensuring secure clamping and a stable connection.
Wide range of application possibilities
Suitable for a wide range of domestic and professional applications, including heating systems, hot and cold water distribution, and plumbing systems. Resistance to pressures up to 10 bar and temperatures between 5 and 110 degrees makes it perfect even for installations under demanding operating conditions.
Technical Specifications Giacomini straight fitting
| Feature | Value |
|---|---|
| Type of fitting | Straight, female threaded |
| Thread | F 3/4 inch |
| Compatible pipe diameter | 16x2 mm |
| Material | Chrome-plated brass |
| Reference Standards. | EN 1254-3 (fittings), EN 681-1 (O-rings) |
| Operating temperature range | 5/110 degrees |
| Max pressure | 10 bar |
| Use | Plumbing, sanitary and thermal hydraulic systems |
| Pipe compatibility | Plastic and multilayer |
There are no reviews
Data sheet
- Type: Fittings for Multilayer Pipes
- Connection: F
- Model: Straight
- Connections: 3/4 inches
Threaded
