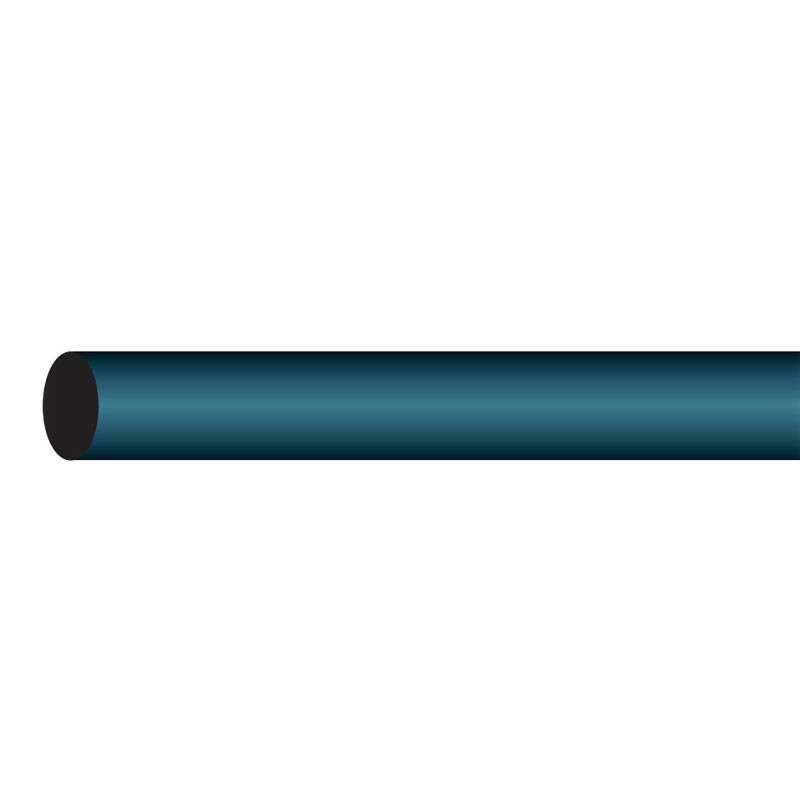

Raytech heat-shrink tubing medium thickness 10x3 mm 488809-000
RYT 488809-000
8032853658659
Raytech medium-thickness heat shrink tubing with adhesive with the following characteristics:

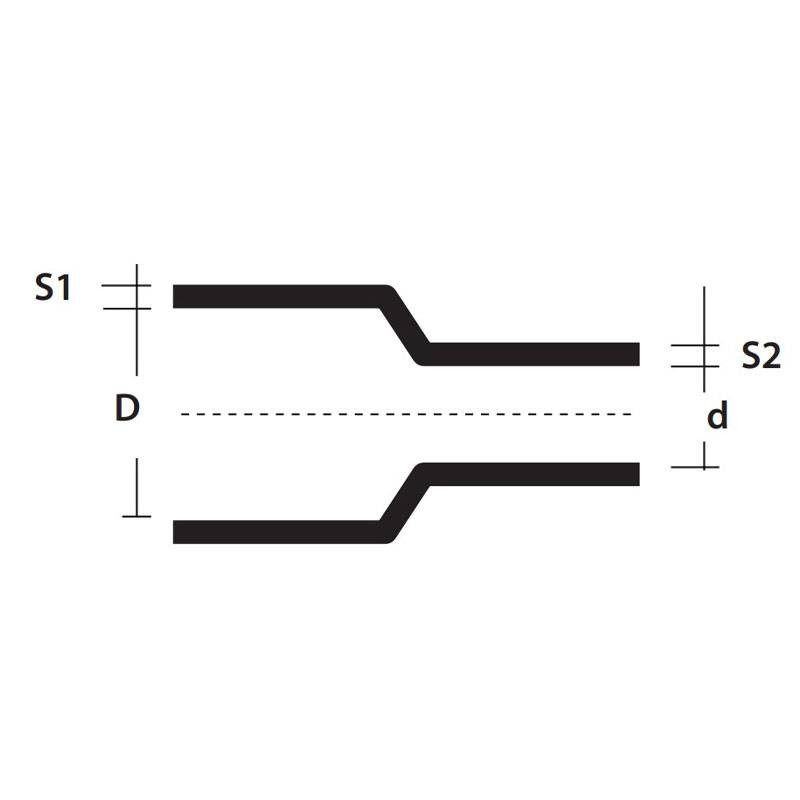

- Diameter: 10x3 mm (D-d)
- Thickness: 0.3x1 mm (S1-S2)
- Color: Black
Used for insulating bus bars or bare LV connections with excellent mechanical strength, for sealing, especially when associated with heat-shrink adhesive, and for anticorrosive protection.
€11.35
Items Available: 24
: 4
Radiation-modified and cross-linked polyolefin heat-shrinkable sheathing for insulation, sealing and protection of LV components. In fact, it is used for restoring insulation and external covering of LV cables and wherever excellent mechanical resistance characteristics to impact, abrasion, weathering in general including UV radiation, or for use in submerged environments are required.
Used for insulation of LV busbars or bare connections with excellent mechanical strength, for sealing, especially when associated with thermo-melt adhesive, and for anticorrosive protection. It also replaces self-adhesive and self-agglomerating tapes.
Features:
- Operating temperature: -55/+125 degrees.
- Tensile strength: 12 MPa min
- Elongation 350% min
- Tensile strength after aging: 12 MPa
- Elongation after aging: 300% min
- Dielectric strength: 12 kV/mm min
There are no reviews
Data sheet
- Diameter: 10x3mm
- Type: Heat-shrink tubing
