Raytech heat-shrink tubing D 19.4x9.5 L 1.2m 199500-BAR

Raytech
Raytech
RYT 199500-BAR 8032853656570

Raytech RGPO-B bar heat shrink tubing with the following characteristics:

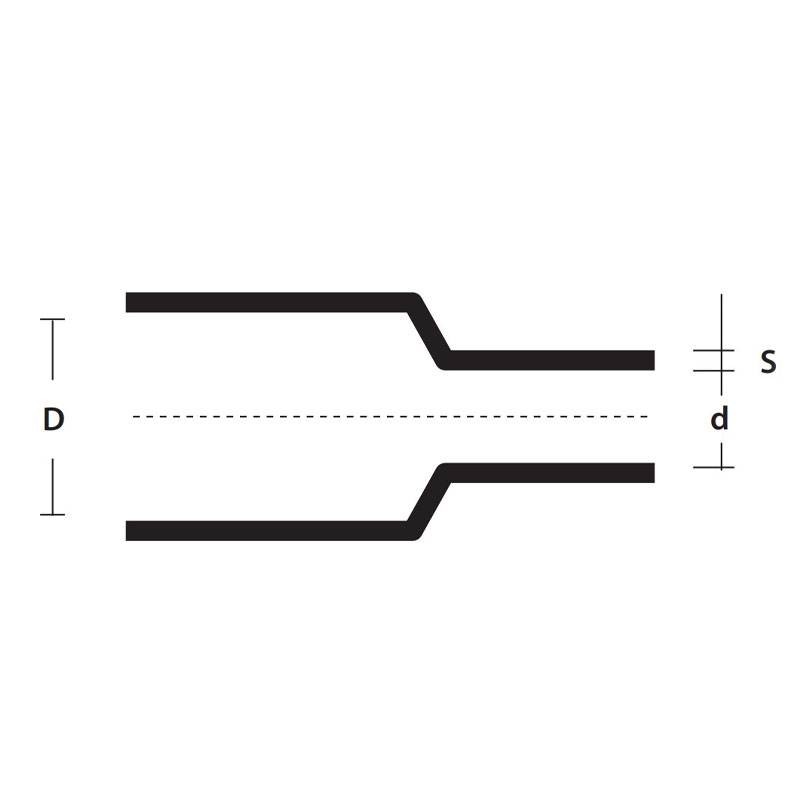

  • Diameter: 19x9.5 mm (D-d)
  • Thickness: 0.75 mm
  • Length: 1.2 meters
  • Color: Black



Suitable for insulating and covering conductors and their connections and busbars. They replace self-adhesive or self-agglomerating insulating tapes.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Raytech heat-shrink tubing D 19.4x9.5 L 1.2m 199500-BAR
€5.23
€5.23

€5.23
Tax included
Calculate shipping cost
Items Available: 33
Further availability of the manufacturer
€5.23

Buy it within and receive it from Friday, 19 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Flexible polyolefin heat shrink tubing modified and cross-linked by radiation. Longitudinal shortening up to 15%. Suitable for insulating and covering conductors and their connections and busbars. They replace self-adhesive or self-agglomerating insulating tapes.



Characteristics:

  • Tensile strength: 10.4 Min
  • Elongation: 200 % Min
  • Tensile strength after aging: 7.3 Min
  • Elongation after aging: 100 % Min
  • Dielectric strength: 20 kV/mm
  • Min Shrink Temperature: 125°C
  • Operating temperature: -55°C / +120°C

There are no reviews

Data sheet

Diameter:
19,1/9,5 mm
Type:
Heat-shrink tubing
Length:
1.2 meters
