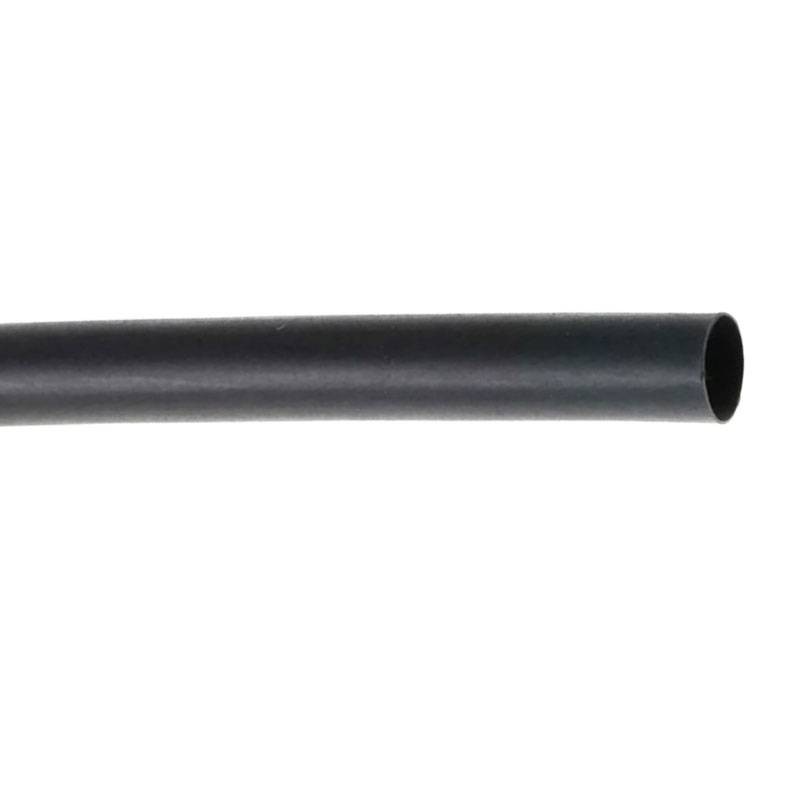

Etelec Medium Thickness Heat Shrink Tubing D 16/5 1m GT31016
ETL GT31016
8033501685577
Etelec GTMS medium-thickness heat shrink tubing with the following characteristics:
- Diameter: 16-5 mm
- Thickness: 0.3-1.4 mm
- Minmax conductor diameter: 5.5-14.5 mm
- Shrinkage: Thermal
- Thickness type: Medium thickness
- Color: Black
- Sheath length: 1 meter
Medium wall thickness polyolefin heat shrinkable sheath without sealant with 3:1 shrink ratio, for insulation of low voltage conductors and protection of medium voltage cables and components and for general use.
€13.50
Items Available: 101
: 9
Advantages:
- Excellent mechanical protection
- Resistance to weathering
- Excellent electrical insulation
- High tensile strength
- UV resistant
- Can replace adhesive and self-amalgamating insulating tapes
Applications:
- Electrical insulation up to 0.6/1 kV
- Abrasion and corrosion sealing and protection of cables, accessories and components
- Abrasion and corrosion protection of electrical cables and conductors
- Reconstruction of bt cable insulation
- Identification of electrical cables and conductors
Features:
- Series: GTMS
- Material: Polyolefin
- Shrinkage: Thermal
- Shrinkage ratio: 3:1
- Thickness type: Medium thickness
- Shrinkage temperature min: 70 degrees
- Operating temperature: -40/+120 degrees
- Color: Black
- Dielectric strength: kV/mm 10
There are no reviews
Data sheet
- Diameter: 16x5mm
- Type: Heat-shrink tubing
- Length: 1 Meter
