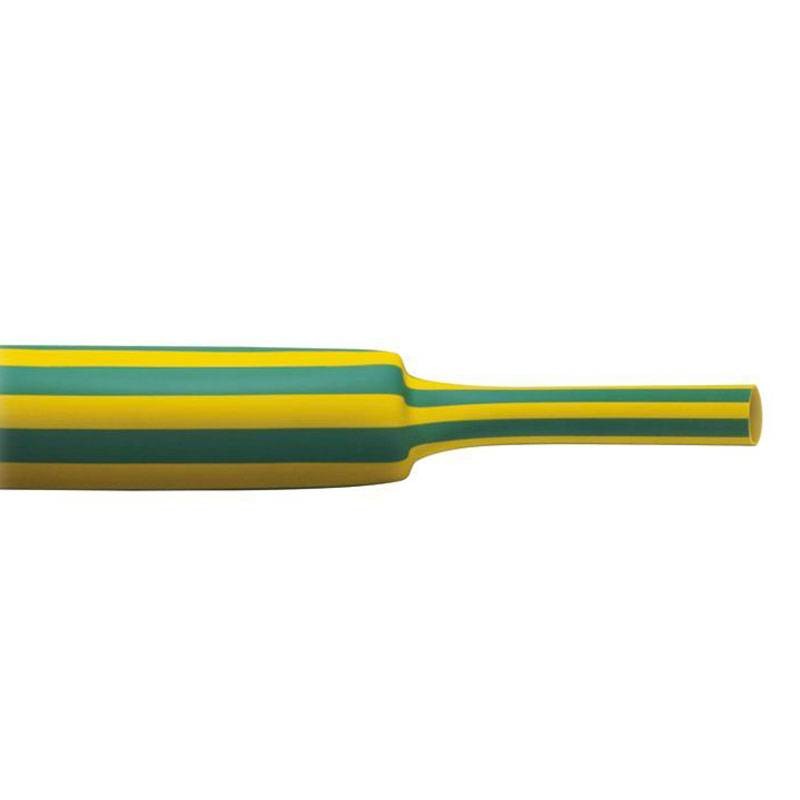

Cellpack heat shrink tubing low thickness 3.2/1.6 1m G/Y 457292
CEL 457292
4010311200668
Cellpack low wall thickness heat shrink tubing without adhesive with the following characteristics:
- Shrink ratio: 2:1
- Length: 1 meter
- Inner diameter before shrinkage: 1/8 inch
- Inner diameter before shrinkage: 3.2 mm
- Inner diameter after shrinkage: 1.6 mm
- Color: Yellow/Green
Applications: Insulation, Grouping, Labeling, Corrosion protection, Mechanical protection.
€3.98
Items Available: 57
Type SR1F heat shrinkable sleeves are thin-walled, without thermoplastic adhesive, with a shrink ratio of 2:1. Typical applications are protection of cables from chemical influences and good mechanical protection.
Properties:
- Thin-walled
- Without thermoplastic adhesive
- Labelable
- Resistant to chemical influences
- Stabilized against UV light
- Non-corrosive
- Free of substances that inhibit paint wetting
- Resistant to melting
- High tensile strength
- Excellent electrical properties
- High tensile strength
- Resistant to cold flow (heat stable)
- High flexibility
- Self-extinguishing (except transparent model)
Features:
- Materials: Cross-linked polyolefin, Lead- and cadmium-free
- Inner diameter before shrinkage: 1/8
- Inner diameter before shrinkage: 3.2 mm
- Inner diameter after shrinkage: 1.6 mm
- Shrinkage wall thickness: 0.51 mm
- Breaking strength: 13 Mpa
- Operating temperature range: -55/+135 degrees
- Dielectric strength: 20 kV/mm
There are no reviews
Data sheet
- Diameter: 3,2/1,6mm
- Type: Heat-shrink tubing
- Length: 1 Meter
