Haier Pearl Air Conditioner Trial Split 9000+9000+9000BTU 2.5kW+2.5+2.5kW WIFI R32
KIT HAIPE999
Haier Pearl Trial Split Air Conditioner 9000+9000+9000BTU 2.5kW+2.5+2.5kW Inverter, energy class A+++/A+, with Wi-Fi and R32 gas combines air conditioning and purification: UV-C lamp, Coanda airflow and quietness up to 18 dB(A). Smart control with hOn app and voice commands.
Kit composed of:
- 3 Indoor Units 9000BTU 2.5kW (AS25PBPHRA AACCX0E00)
- 1 Outdoor Unit 7.0kW 3 Connections (3U70S2SR5FA - AAA2PHE00)
- 3 Remote Controls YR-HE2.
This model replaces the Tundra series, bringing a more modern platform oriented towards comfort, quietness, and smart functions.
For three rooms of approx. 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€2,374.97
Items Available: 15
: 14
Air conditioners of the same series
Frequently bought together
Haier Pearl Trial Split: three environments air-conditioned with a single system
The Haier Pearl 9000+9000+9000 BTU Trial Split is designed to air-condition three rooms with a single outdoor unit, maintaining a clean aesthetic and centralized management. It is the ideal choice for apartments, offices, and multi-room houses, where a complete and flexible solution is needed without installing multiple outdoor units.
Integrated air purification: UV-C lamp for healthier environments
Pearl is not just an air conditioner: it is also an air purifier thanks to the UV-C module (“UVC Generator Module”). Ultraviolet rays are used for a sanitizing action, useful for improving air quality in domestic and professional environments, especially in highly frequented spaces such as living rooms, bedrooms, and studies.
This function can be easily managed via app, so you can activate it when needed without manual intervention on the unit.
Superior comfort: Coanda effect, no annoying air jets
The Coanda airflow is designed to distribute air naturally and comfortably:
- in cooling, the cold air flows parallel to the ceiling and gradually descends, avoiding direct currents on people;
- in heating, the warm air is directed towards the floor and then spreads evenly, maintaining a more stable temperature.
Supporting this is the Intelligent Air function, which automatically directs the deflectors to optimize distribution based on the selected mode.
Quietness up to 18 dB(A): ideal for bedrooms and offices
With a declared sound level of up to 18 dB(A), Haier Pearl is suitable for those seeking a discreet air conditioner, perfect for:
- bedrooms and children's rooms
- home offices and studies
- waiting rooms and environments where noise is critical
Comfort is not just about temperature, but also quietness: silence makes a difference in daily life.
Wi-Fi and hOn app: remote control and voice commands
Wi-Fi is integrated, so no additional modules are needed. Through the hOn app, you can manage from smartphone or tablet:
- on/off and setpoint
- mode and fan speed
- scheduling and purification functions
The app is designed for the Haier smart home and also supports voice commands thanks to compatibility with Google Assistant and Amazon Alexa, useful for "hands-free" scenarios or home automation.
Efficiency and R32 refrigerant: optimized consumption
The unit works with R32, a more efficient refrigerant compared to many previous generations, and offers A+++ class in cooling and A+ in heat pump. This means good seasonal performance and more controlled consumption, especially when the air conditioner is used frequently during the summer or for mid-season heating.
Design and installation: modern look and practicality
The Pearl offers a matte white finish suitable for modern environments. Easy installation makes it a practical choice even for replacing existing systems, maintaining immediate management and simplified routine maintenance.
- Trial split system: 3 indoor units 9000 BTU (2.5 kW) + 1 outdoor unit
- Wi-Fi integrated as standard with hOn app for remote control and smart home
- UV-C purification (UVC Generator Module) for air sanitization in the environment
- Coanda Plus airflow: more comfortable distribution in cold and warm
- Quietness: up to 18 dB(A) for bedrooms and relaxation areas
- Efficiency: A+++ in cooling and A+ in heat pump, R32 refrigerant
| COOLING INDOOR UNIT | |
|---|---|
| Nominal capacity (Min/Max) | 2.6 kW (0.8 – 3.0) |
| Nominal absorbed power (Min/Max) | 0.8 kW (0.3 – 1.2) |
| SEER | 6.1 |
| Energy class | A+++ |
| EER | 3.25 |
| Indicative annual energy consumption | 149 kWh/a |
| HEATING INDOOR UNIT | |
| Nominal capacity (Min/Max) | 2.8 kW (0.8 – 3.2) |
| Nominal absorbed power (Min/Max) | 0.78 kW (0.3 – 1.4) |
| SCOP | 4.0 |
| Seasonal energy efficiency class | A+ |
| COP | 3.73 |
| Consumo energetico annuo indicativo | 840 kWh/a |
| GENERAL DATA INDOOR UNIT | |
| Dimensions (W × D × H) | 805 × 200 × 290 mm |
| Weight | 8.3 kg |
| Airflow | 550 m³/h |
| Dehumidification capacity | 1.0 l/h |
| Sound pressure level (Cooling / Heating) | 37 / 32 / 28 / 18 dB(A) – 37 / 32 / 28 / 18 dB(A) |
| Sound power level | 54 / 55 dB(A) |
| COOLING PERFORMANCE OUTDOOR UNIT | |
|---|---|
| Nominal power (Min~Max) | 7.0 kW (2.4 ~ 7.6) |
| Power consumption | 1.75 kW |
| EER | 4.0 |
| Pdesign (35 °C) | 7 kW |
| SEER / Energy class | 8.5 (A+++) |
| Annual energy consumption | 296 kWh/a |
| Operating range | -10 ÷ +46 °C |
| HEATING PERFORMANCE OUTDOOR UNIT | |
| Nominal power (Min~Max) | 7.6 kW (2.9 ~ 8.5) |
| Power consumption | 1.9 kW |
| COP | 4.0 |
| Pdesign (-10 °C) | 6 kW |
| SCOP / Energy class | 4.4 (A+) |
| Annual energy consumption | 1782 kWh/a |
| Operating range | -15 ÷ +24 °C |
| GENERAL DATA OUTDOOR UNIT | |
| Power supply | 1 / 220–240 V / 50–60 Hz |
| Airflow | 3000 m³/h |
| Sound power (cooling) | 66 dB(A) |
| Sound pressure (cooling) | 53 dB(A) |

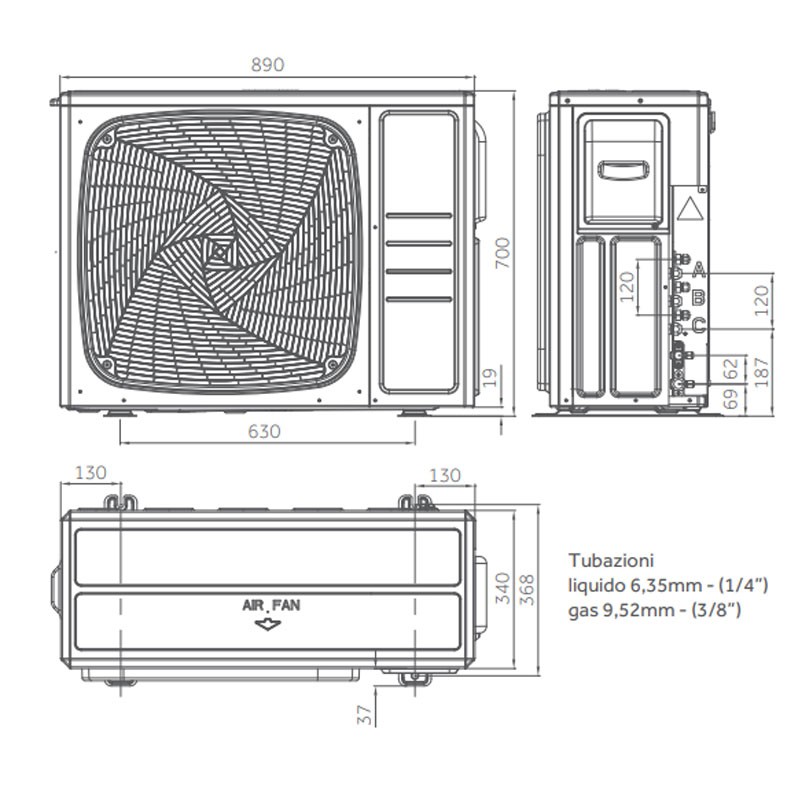

| Dimensions (W × D × H) | 890 × 340 × 700 mm |
| Net weight | 54 kg |
| Compressor type | Inverter Twin Rotary |
| Compressor brand | Mitsubishi |
| REFRIGERANT CIRCUIT | |
| Refrigerant type | R32 |
| Liquid piping | 3 × Ø6.35 mm (1/4") |
| Gas piping | 3 × Ø9.52 mm (3/8") |
| Max total piping length | 60 m |
| Max single line length Outdoor-Indoor unit | 25 m |
| Standard length without additional charge | 30 m |
| Max height difference Outdoor-Indoor unit | 15 m |
| Max height difference Indoor-Indoor unit | 7.5 m |
| Factory refrigerant charge | 1.6 kg |
| Additional charge | 20 g/m |
| CO₂ equivalent | 1.08 tCO₂eq |
Très bonne qualités
Facile et
Bien
Conçue à racheter
très bien, matériel très efficace et silencieux
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 9+9+9 BTU
- System: Trialsplit
- WIFI: Integrated
- Room Size: 27m²+27m²+27m²
- Energy class: A+++
- Series: Pearl
