Haier 1-way Cassette Air Conditioner 7.1KW 24000BTU WIFI R32
KIT HAICAS24-1
8055404040512
The Haier 1-way cassette air conditioner 7.1 kW (24000 BTU) with Wi-Fi and R32 gas combines quiet comfort, compact design, and advanced UV-C purification for healthier environments.

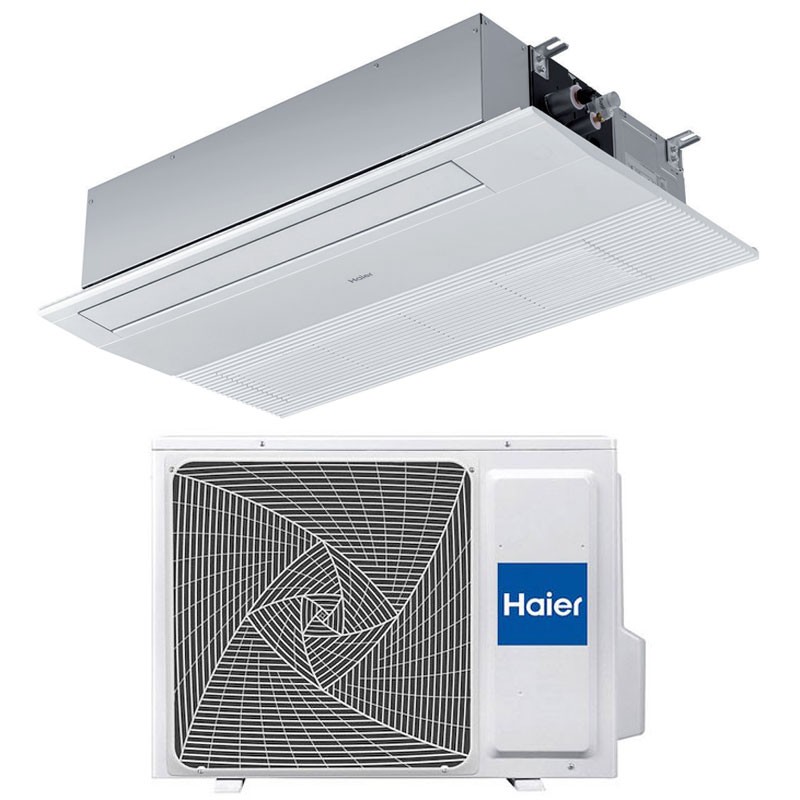

The kit consists of:
- 1 indoor unit (AB71S2SA1FA(H) TD0052739)
- 1 outdoor unit (1U71S2ST1FA AE1XY1E00)

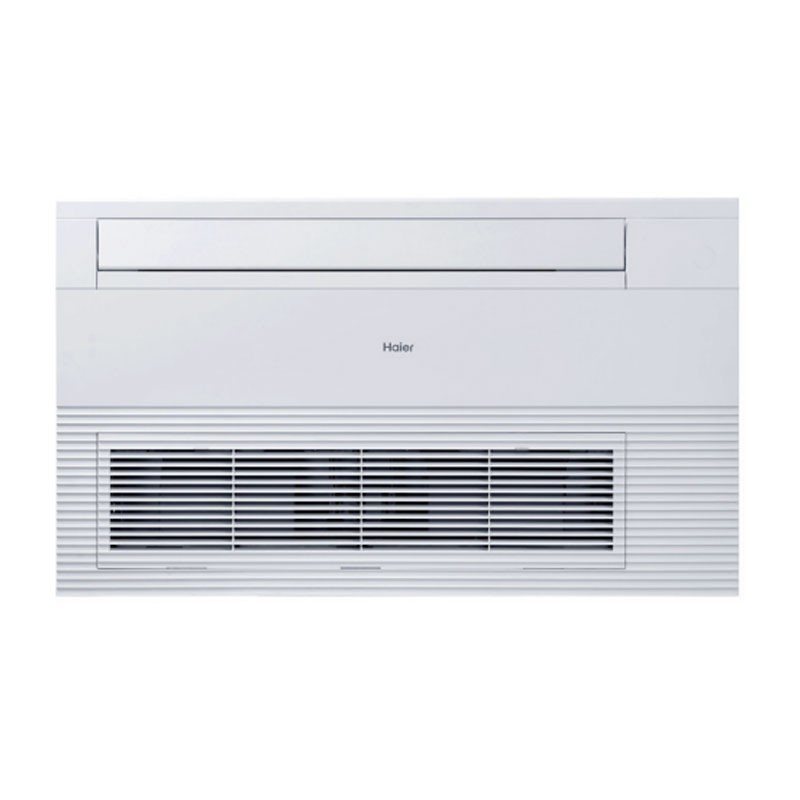

- Panel P1B-1348IB 1348x600x45mm.
Wi-Fi control with hOn App for remote operation of the air conditioner.
Compatible with the Haier HW-SA201ABK Touchscreen Wired Controller and the infrared remote control YR-HQS01
For a room of approximately 78m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€2,000.98
Items Available: 2
: 1
Frequently bought together
- On sale!
1-Way Cassette Air Conditioner Haier: targeted and discreet comfort
The 1-way cassette air conditioner Haier with 7.1 kW (24000 BTU) is the perfect solution when you want powerful air conditioning but with a clean look. The ceiling installation frees up walls and floors, distributing air in a directional and controlled manner. Thanks to its compact design, the unit is also suitable for small technical spaces and renovation projects where every centimetre counts.
Wi-Fi Control with hOn App: smart management, even away from home
With Wi-Fi and the hOn App, you can manage the air conditioner remotely: turning it on/off, adjusting the temperature, and setting operations become immediate, both at home and in the office. This improves daily comfort and helps you optimize the use of the system according to actual schedules. If you prefer traditional controls, optional controls are available: wired control HW-SA201ABK and infrared remote control YR-HQS01.
Air purification with UV-C and silver ion filter
In addition to air conditioning, this model focuses on air quality. The UV-C Lamp contributes to purification, while the antibacterial silver ion filter helps counteract bacterial proliferation, making the unit suitable for frequented environments such as professional studios, shops, waiting rooms, and homes. The result is more complete comfort, not just thermal.
Fresh Air and condensate drain: practicality for installers and users
The provision for "Fresh Air" Ø 100 mm air intake allows fresh air to be introduced into the environment (where provided by the system design), improving air exchange. The condensate drain pump simplifies the management of condensate water and facilitates installation even when drains are not ideally positioned. Additionally, the low noise level makes the system suitable for spaces where silence is essential.
| COOLING | |
|---|---|
| Cooling power output nom (min~max) | 7.1 (2.0~7.3) kW |
| Cooling power consumption nom (min~max) | 2.20 (0.5~2.6) kW |
| SEER | 6.1 (A++) |
| EER | 3.23 w/w |
| Pdesign COOL. 35°C | 7.1 kW |
| Annual energy consumption COOL. | 406 kWh/a |
| HEATING | |
| Heating power output nom (min~max) | 8.0 (2.5~8.0) kW |
| Heating power consumption nom (min~max) | 2.15 (0.5~2.6) kW |
| COP | 3.72 w/w |
| SCOP | 3.8 (A+) |
| Annual energy consumption HEAT. | 1831 kWh/a |
| INDOOR UNIT | |
| Power supply | 1/220~240/50 |
| Air volume treated (H / M / L / Q) | 900 / 700 / 600 / 500 m³/h |
| Dehumidification | – L/h |
| Sound power high COOL. H | 67 dB(A) |
| Sound power high HEAT. H | 67 dB(A) |
| Sound pressure COOL. H / M / L / Q | 49 / 46 / 43 / 40 dB(A) |
| Sound pressure HEAT. H / M / L / Q | 49 / 46 / 43 / 40 dB(A) |

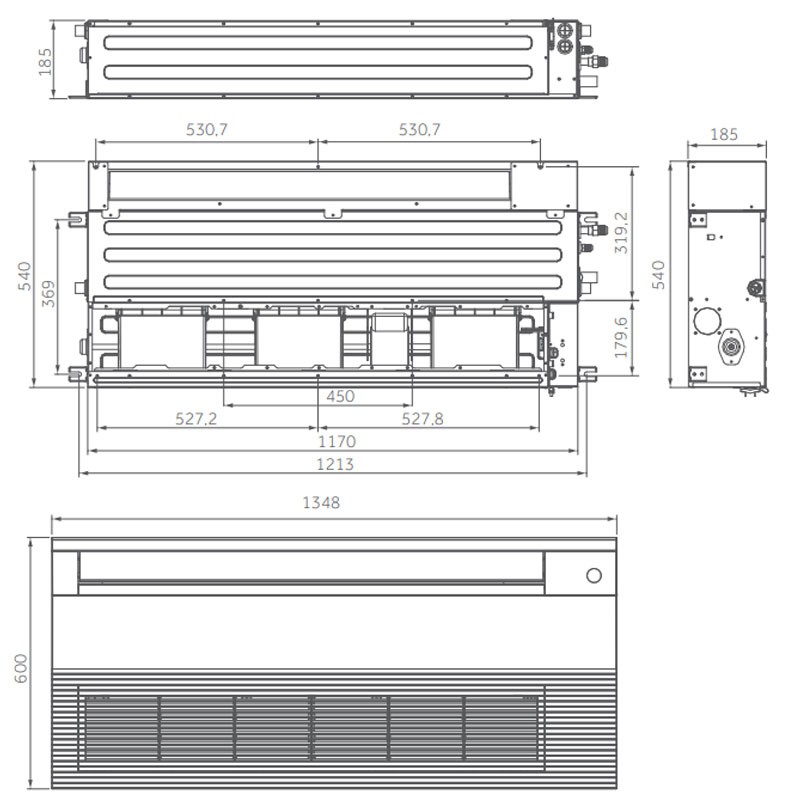

| Net dimensions (W x D x H) | 1170 x 540 x 185 mm |
| Net weight | 27 kg |
| INTEGRATED PANEL | |
| Net dimensions (panel W x D x H) | 1348 x 600 x 45 mm |
| Net weight (panel) | 5.1 kg |
| OUTDOOR UNIT | |
| Power supply | 1/220~240/50 |
| Sound power H | 70 dB(A) |
| Sound pressure H | 57 dB(A) |
| Max absorbed current | 13 A |

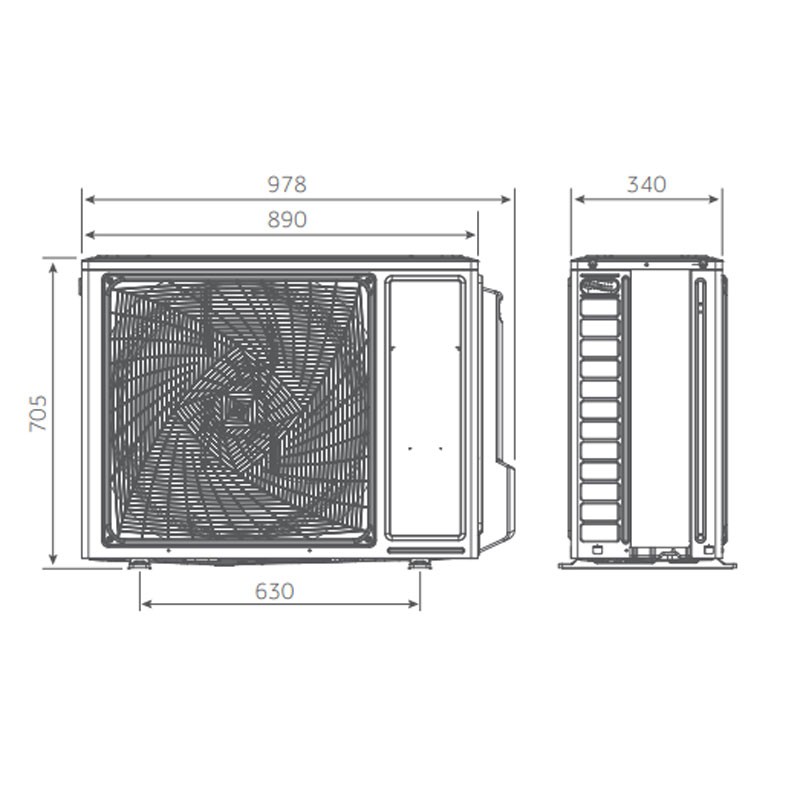

| Net dimensions (W x D x H) | 890 x 340 x 705 mm |
| Net weight | 46 kg |
| Compressor type | Inverter twin rotary |
| Compressor brand | Mitsubishi |
| HYDRAULIC DATA | |
| Refrigerant | R32 |
| Liquid piping Ø | 9.52 mm (3/8") |
| Gas piping Ø | 15.88 mm (5/8") |
| Standard piping length without additional charge | 10 m |
| Max piping length | 50 m |
| Max height difference IU - OU | 30 m |
| Factory refrigerant charge | 1.23 kg |
| Equivalent CO2 tonnes | 0.83 tCO2EQ |
| Carica aggiuntiva ref. oltre lunghezza std | 45 g/m |
| OPERATING LIMITS | |
| COOLING min~max | 21÷35°C (indoor) / -20÷46°C (outdoor) |
| HEATING min~max | 10÷27°C (indoor) / -20÷24°C (outdoor) |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 24000 BTU (7,1 Kw)
- WIFI: Integrated
- Room Size: 78m²
- Energy class: A++
