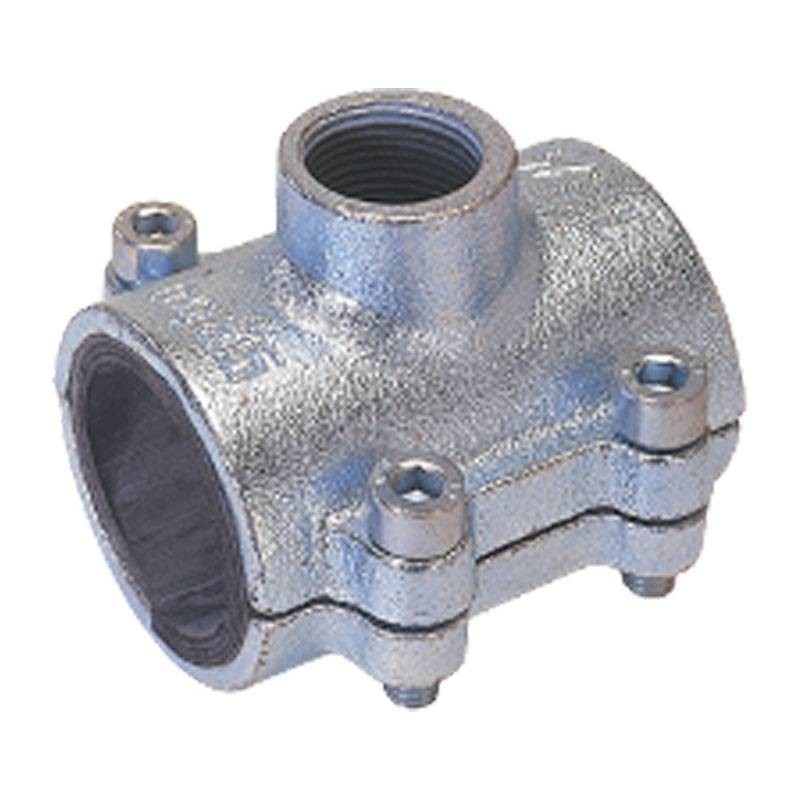

Gebo Cast iron Tapping clamp for F 1-inch steel pipe 01.261.28.0302
GBO 01.261.28.0302
4019576015765
Cast iron Tapping clamp for Gebo steel pipes with female thread Type ANB with the following characteristics:
- Connection: Female
- Fittings: 1 inch x 33.7 mm
- Material: Cast iron
Applications:
- Potable water up to 25 degrees
- Heating water up to 90 degrees
- Oil-free compressed air
Gebo Cast iron Tapping clamp for F 1-inch steel pipe 01.261.28.0302
€10.39
€10.39
Tax included
Tax included
Pay in installments with Klarna
Items Available: 30
Applications:
- Drinking water up to 25 degrees
- Heating water up to 90 degrees
- Oil-free compressed air
Scope of application: to create deflections from pipes. The seal complies with current standards and drinking water requirements
Materials used:
- Upper part of the clamp: spheroidal graphite cast iron DIN EN 1563 respectively malleable cast iron DIN EN 1562
- Lower part of the clamp: spheroidal graphite cast iron DIN EN 1563 respectively malleable cast iron DIN EN 1562
- Bolts/nuts: Galvanized steel, strength 8.8t
- Gasket: EPDM
- Galvanizing: galvanic zinc plating
- Connecting threads: according to ISO 7/1 and/or DIN EN 10226/1
All GEBO clamps and branch brackets are designed to ensure continuous operation.
Operating pressure/temperature: Water: 10 bar/60 degrees, 6 bar/90 degrees - Compressed air: 10 bar/70 degrees.
Recommendations: for central drilling of pipe, use of keyhole saws is recommended to avoid damage to threads.
There are no reviews
Data sheet
- Type:
- Tapping clamps
- Connection:
- F
- Model:
- Threaded
- Connections:
- 1 inch
- Material:
- Cast iron
