Geberit Duofix module for wall-hung bidet 82 cm 111.537.00.3
GEB 111.537.00.3
4064746030284
Geberit Duofix module for wall-hung bidet, versatile, durable and ready for installation on lightweight or counterwall structures, with the following features:
-

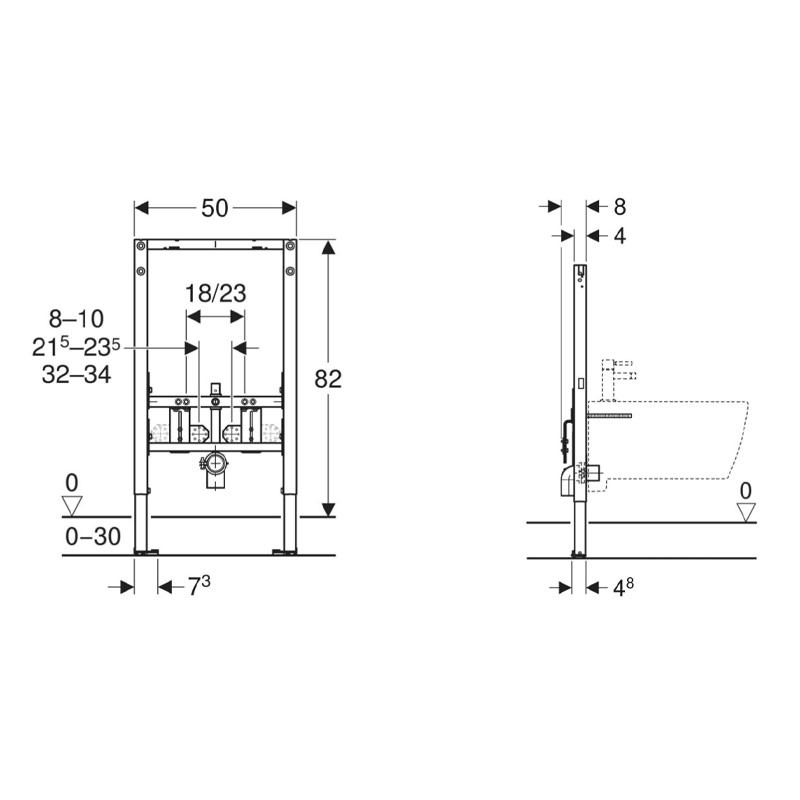

Module height: 82 cm
-
Frame material: powder-coated steel
-
Installation type: Lightweight walls, partial counterwalls
-
Supported floor height: 0-30 cm
-
Bidet compatibility: Suspended bidets with floor-mounted faucets
€265.48
Items Available: 4
: 2
Robust and compact the Geberit Duofix module for bidet
The Geberit Duofix module for 82-cm suspended bidet is designed to offer maximum structural reliability and installation versatility. It is part of the 2025 series, and is distinguished by its statically self-supporting steel frame, protected by a powder coating that ensures durability even in wet environments.
Facilitated installation in counterwalls or on lightweight walls
This module is ideal for use in:
-
Metal or wood mullion walls
-
Partial-height counterwalls with floors from 0 to 30 cm
-
Duofix track systems and walls.
Swiveling base plates allow installation in U profiles (UW 50 and UW 75) without tools, while wall fasteners provide an alternative location for greater flexibility on the construction site.
Precise adjustments for tailored installation
The module allows height adjustment of fixings for:
-
The suspended bidet, with spacing of 18 cm or 23 cm
-
The technical curve, acoustically insulated
-
The faucet, both in width and height
This allows custom installation according to the configuration of the bathroom environment and the sanitary components chosen.
Complete equipment for quick installation
Included in the module you will find:
-
2 connection elbows (Rp 1/2" / R 1/2")
-
Sealing discs and insulating sleeves
-
PE-HD technical bend Ø 50 mm
-
Gasket Ø 44/40 mm
-
Fastening material
Wall or rail fasteners are not included and must be purchased separately.
There are no reviews
Data sheet
- Type: Recessed modules
- Model: Collection
