KIT Motor for rolling shutters Came MONDRIAN 5 20 Nm up to 36 KG 001UY0019
CMC 001UY0019
8050456023872
KIT Motor for rolling shutters Came MONDRIAN 5 up to 36 KG composed of:

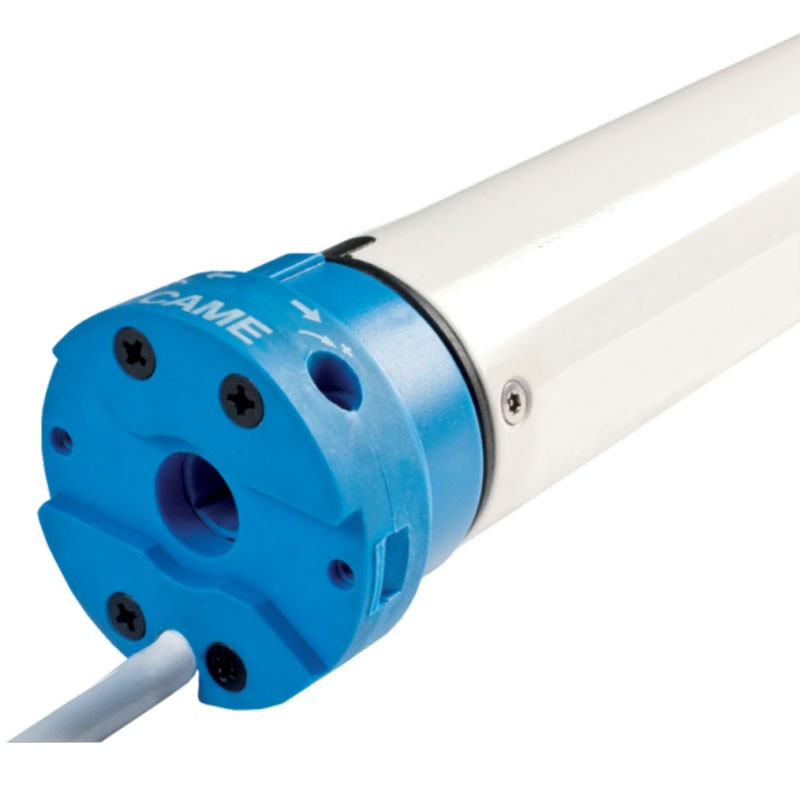

- 1 piece 001Y5020A151MO Tubular motor Mondrian 5 - Ø 45 20 Nm. 230 V AC - 50 Hz with mechanical limit switch

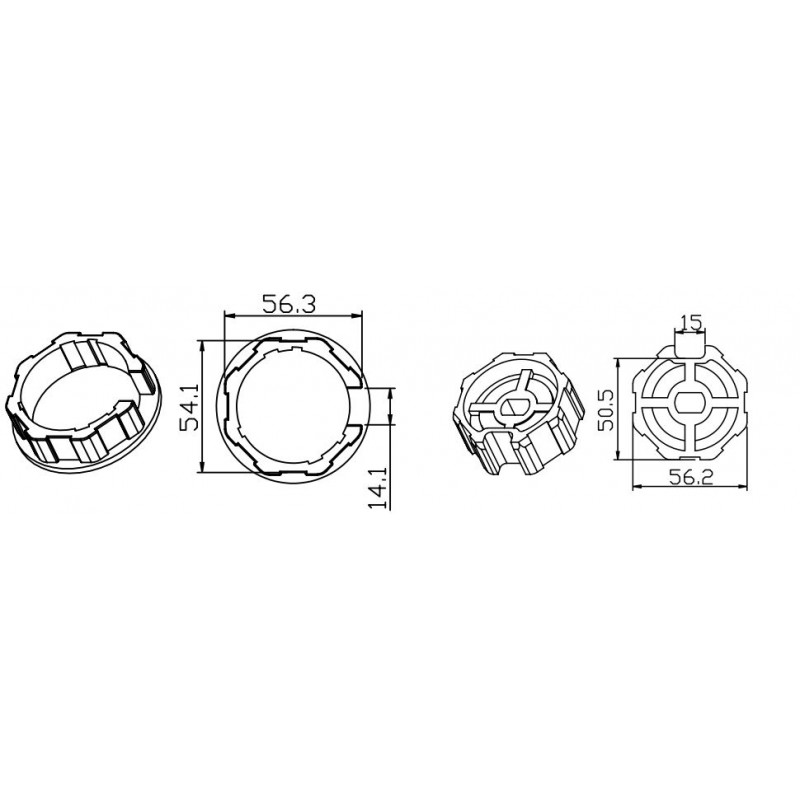

- 1 piece 001YK5101 Adapter Ø 45 octagonal 59 x 0.6 mm
- 1 piece 001YM0105 Safety insert Q10

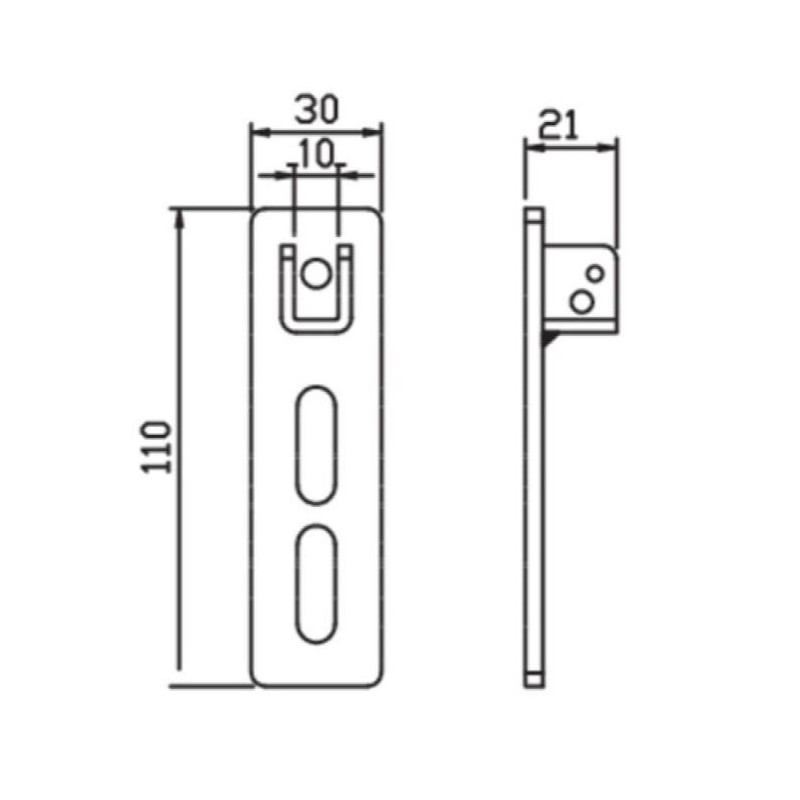

- 1 piece 001YM0110 Adjustable support double slot saddle Q10
€39.28
Items Available: 82
Features:
- 230 V power supply

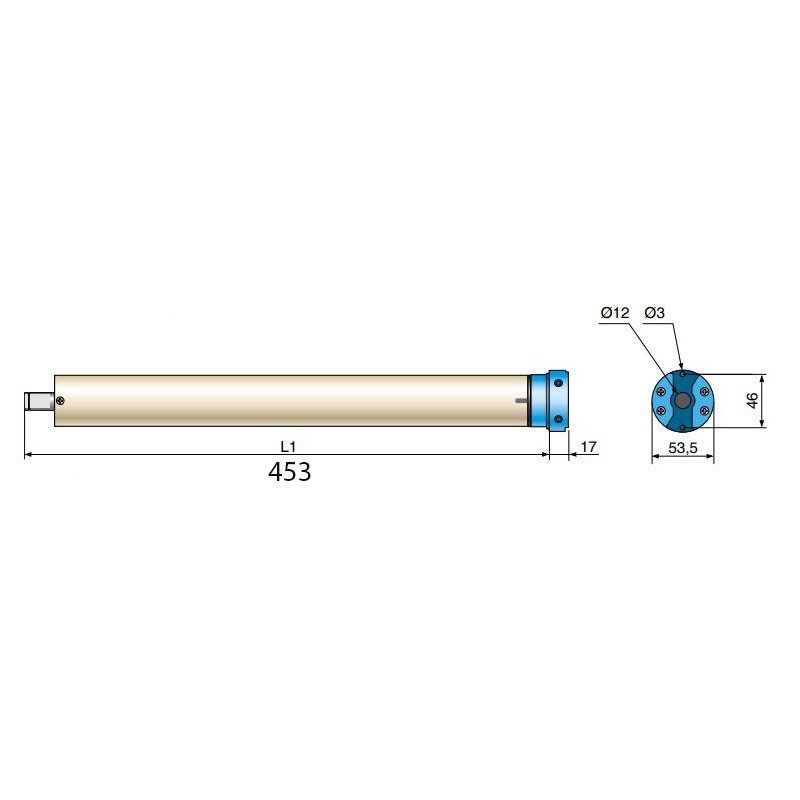

- Length: 453 mm
- Power : 161 W
- Common wire : Blue
- Black and brown : up and down
- Possibility of use on 50 mm round or octagonal tube
- Mechanical manual limit switch with progressive adjustment by screws
- Universal head for application of any fixing plate
- Diameter 45 mm
- Torque (NM) 20
- Speed RPM (revolutions per minute) 15
- Limit switch turns 22
- Operating time 4 Min
- Absorption 0,64 A
- Protection degree IP44.
Viene completo para poder ser instalado, me ha faltado una referencia diferente para el anclaje del motor.
Data sheet
- Type: Motors for rolling shutters
