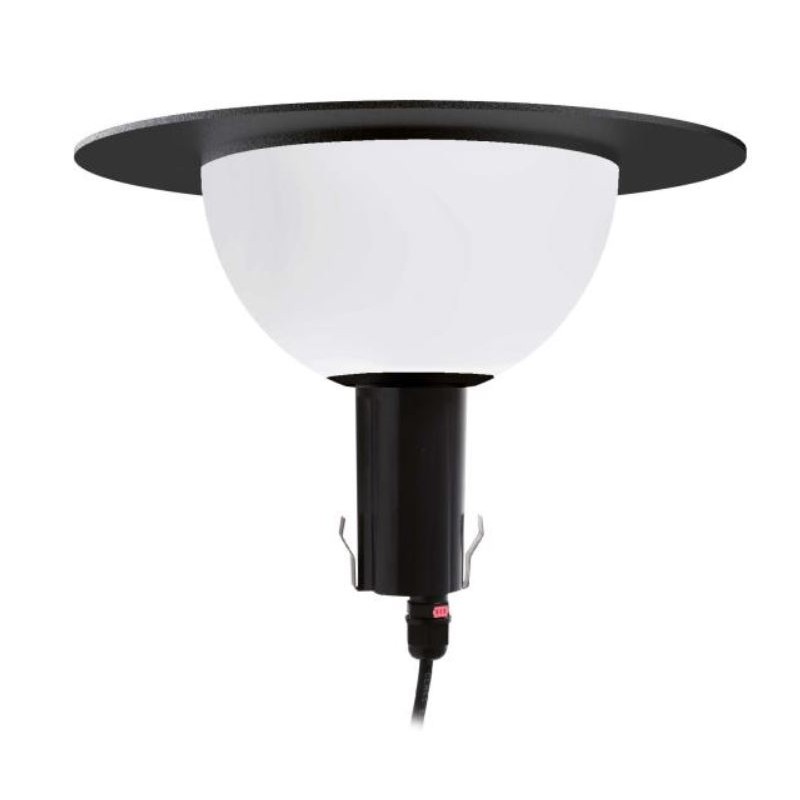

Mareco Saturno diffuser with E27 connection Black 1033101N
MAO 100-1033101N
8033706354209
Mareco Saturno diffuser:
- Fixture with E27 socket for use on Ø60mm poles with max. 3mm folder
- Translucent PMMA (acrylic) diffuser that is UV unalterable
- PC (polycarbonate) pole attachment colored black paste
- Maximum lamp size Ø60xL110mm (lamp not included)
€45.16
Items Available: 24
: 2
Features:
- Outdoor residential for use on Ø60mm overhead poles (IP65), for straight mounting
- Body and cap made of black paste-colored PC (polycarbonate)
- Diffuser with screw coupling, made of translucent PMMA (acrylic) with etched effect, connected to the lamp holder compartment by black polycarbonate fitting and sealed with pure neutral silicone adhesive, anti-mold low elastic modulus with excellent resistance to aging, weathering and UV rays
- Black PC (polycarbonate) lamp holder compartment
- AISI 301 harmonic steel pole retaining spring
- Polyester powder coating with special pre-treatment for outdoor use (Phosphochromation) in order to ensure high resistance to atmospheric agents
- Silicone gasket
- A2 stainless steel hardware
- Fixed-position fluorescent light source
- Rotosymmetrical illuminance
- Lamp socket E27 max 10W FBT, mains voltage 220-240V 50-60Hz
- Maximum lamp size Ø60xL110mm
- Equipped with PG9 plastic cable gland with osmotic valve for air leakage (limits overpressure) and humidity
- Connection to the power supply line can be made via H05RN-F 2x0.75mmq cable preconnected at the outlet of the luminaire (35cm)
- Fixing by harmonic steel expansion spring
- Routine maintenance by unscrewing the diffuser with screw connection (E27)
- Routine and extraordinary maintenance on Led wiring not required
- IP68 "T"-shaped branch terminal block cannot be housed inside the Ø60mm pole
- Circular section diffuser Ø200mm

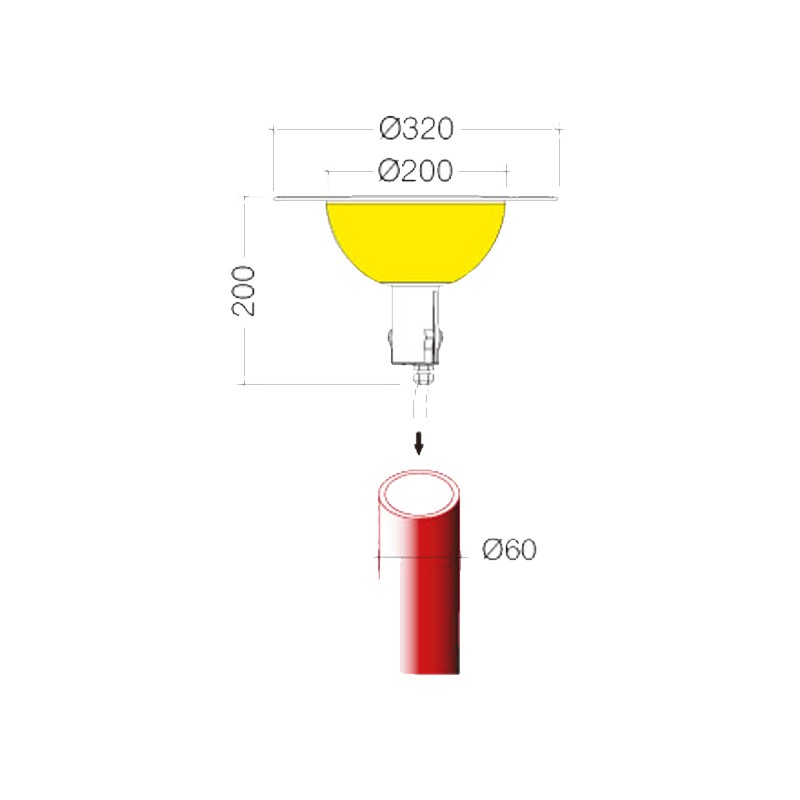

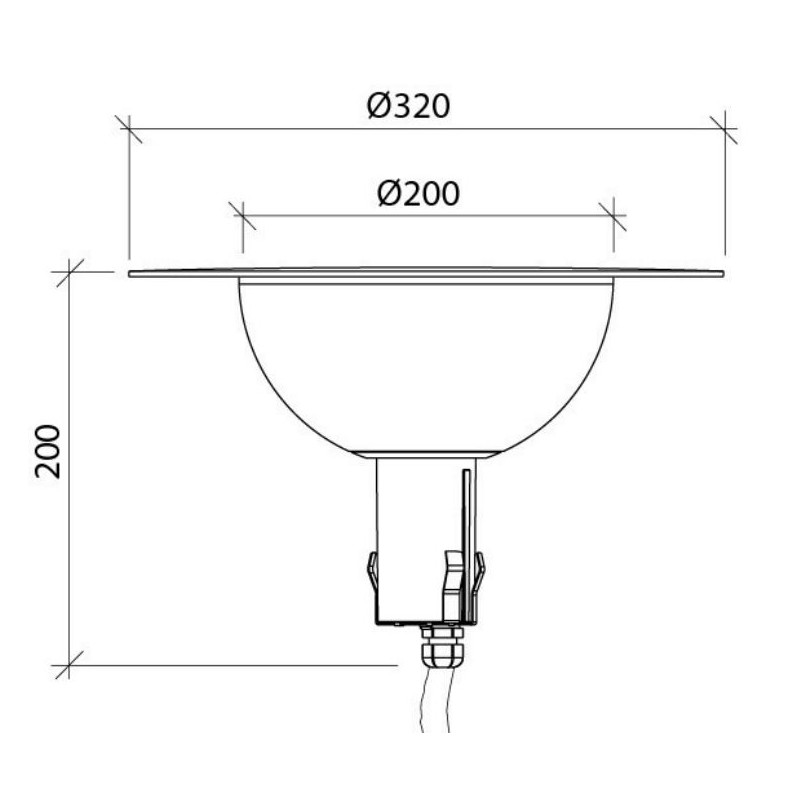

- Product dimensions 320x200mm diameter
Mechanical properties silicone, cured 7 days at 22°C and 50% relative humidity:
- Hardness, Shore A 37
- Tensile strength MPa 2.5
- Elongation at break %680
There are no reviews
Data sheet
- Type: Light diffusers and floor lamps
