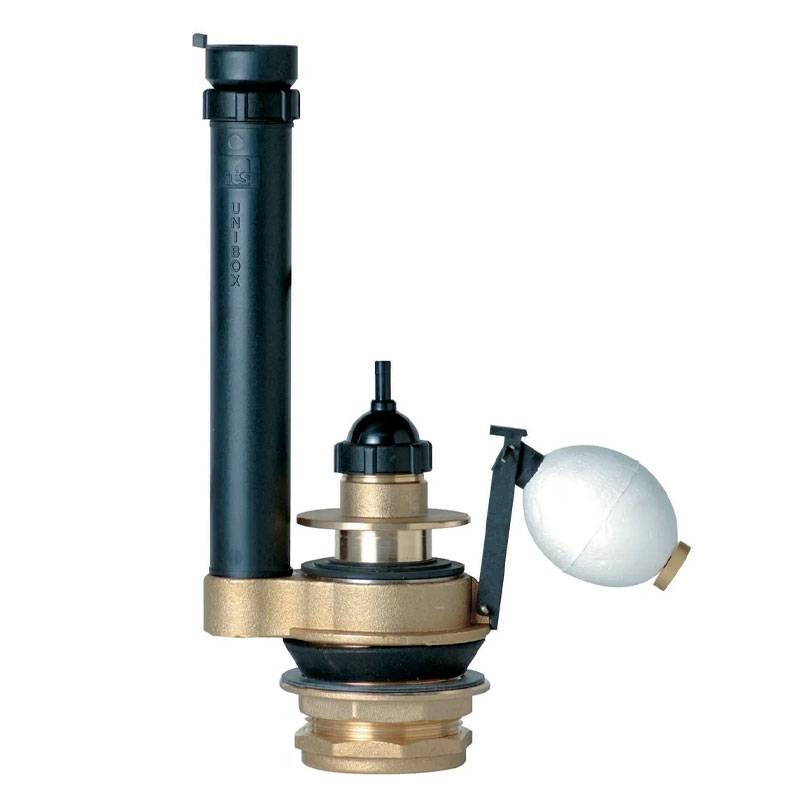

Todini Control and Button is a universal replacement designed for Unibox one-piece Flushing cisterns. Equipped with pneumatic control, reliable valves and durable materials, it provides high performance, flexible installation and long service life, with the following features:
Control: Pneumatic with air button
Exhaust pipe diameter: 50 mm
Overhead level adjustment: 22-42 cm (telescopic tube)
Button material: ABS
Monoblock material: Brass
Discharge valve: Easily inspected
Loading valve: Silent and quick-filling
Locking seat: Stainless steel
The Todini control and push button system is suitable for external monoblock flushing cisterns, including ceramic, and is distinguished by:
Reliable operation due to stainless steel housing
Universal compatibility with Unibox systems
Practical and versatile pneumatic control that can be installed wherever required
The mechanism is built with quality components:
Brass monoblock, for a solid, corrosion-resistant construction
Stainless steel locking seat, guaranteeing tightness and durability
ABS button, lightweight and impact-resistant
Thanks to the telescopic tube, the overflow level can be adjusted from 22 to 42 cm, easily adapting to the configuration of the cistern.
The connection between the pushbutton and valve is via flexible hose, simplifying the positioning of the control.
| Feature | Value |
|---|---|
| Compatible model | Unibox one-piece cassettes |
| Actuation system | Pneumatic |
| Discharge pipe diameter | 50 mm |
| Overhead level | Adjustable from 22 to 42 cm |
| Runoff velocity | 2.0 l/s |
| Central material | Brass |
| Closure seat | Stainless steel |
| Button material | ABS |
| Cassette type | External, one-piece |
