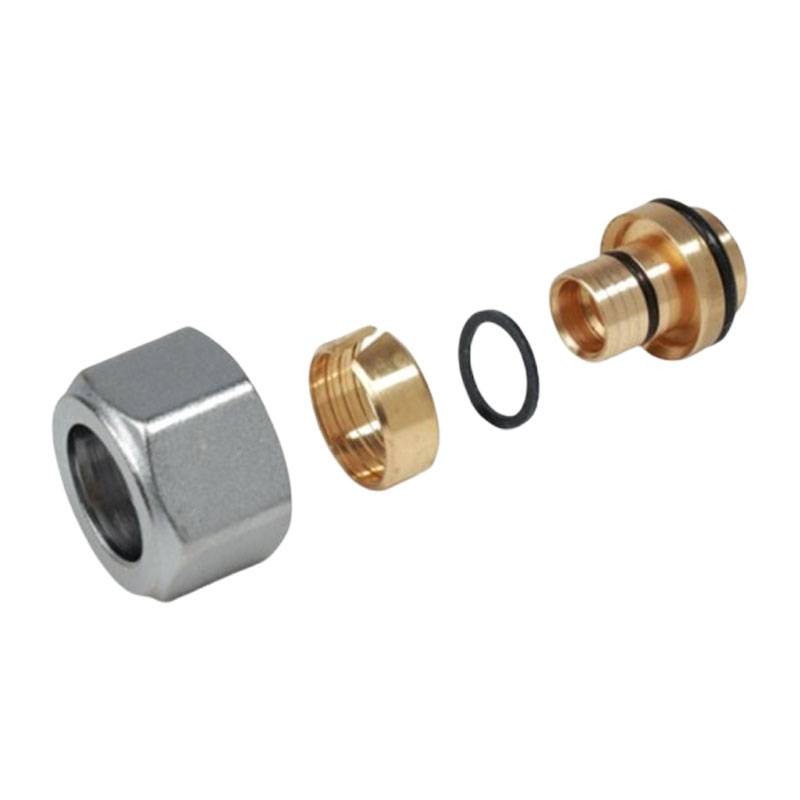

Giacomini adapter for multilayer pipes 17x2 mm brass R179MX034

Giacomini
Giacomini
GIM R179MX034 8009902210311

Giacomini hydraulic adapter for plastic or multilayer pipes, max temperature 110 degrees, max pressure 10 bar, with the following features:

  • Size: 17x2 mm

  • Material: Brass

  • Compatible with: Plastic and multilayer pipes

  • Max working pressure: 10 bar

  • Suitable for: Plumbing and heating systems

Do you have questions about this product or did you not find what you were looking for? Ask us!
Giacomini adapter for multilayer pipes 17x2 mm brass R179MX034
€2.09
€2.09

€2.09
Tax included
Calculate shipping cost
Items Available: 359
Further availability of the manufacturer
€2.09

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Giacomini professional adapter for plumbing systems

The Giacomini adapter is designed to ensure a reliable and safe connection between plastic or multilayer pipes and manifolds or terminals of thermohydraulic systems. Made of corrosion-resistant brass, it is fitted with EPDM O-rings conforming to EN 681-1, ensuring a durable hydraulic seal.

Maximum compatibility and secure seal

This adapter stands out for its versatility: it can be used with different types of pipes and is used in both heating and plumbing systems. Its maximum operating pressure is 10 bar, while its operating temperature is up to 110°C, making it suitable for even demanding operating conditions.

Installation instructions in 10 easy steps

  • Perpendicular cutting of the pipe with R990 (plastic) or R990M (multilayer) shear

  • Deburring of the inlet with RP205 tool

  • Calibrating the pipe (only for multilayer pipes) with RP209

  • Lubricating the sealing elements and the inside of the pipe

  • Inserting the cap on the pipe

  • Insert the bicone

  • Add the parting ring (multilayer only)

  • Insert the hose barb until it stops

  • Connect to the terminal of the plumbing system

  • Tighten the cap on the fitting

Technical Specifications Giacomini fitting

ParameterValue
Compatibility Plastic and multilayer pipes
Body material Brass
O-Ring Black EPDM in accordance with EN 681-1
Separation ring Plastic material
Operating temperature range 5°C to 110°C
Maximum pressure 10 bar
Operating fluid Water, glycol water (max 50% glycol)

There are no reviews

Data sheet

Type:
Fittings for Multilayer Pipes
Model:
Straight
