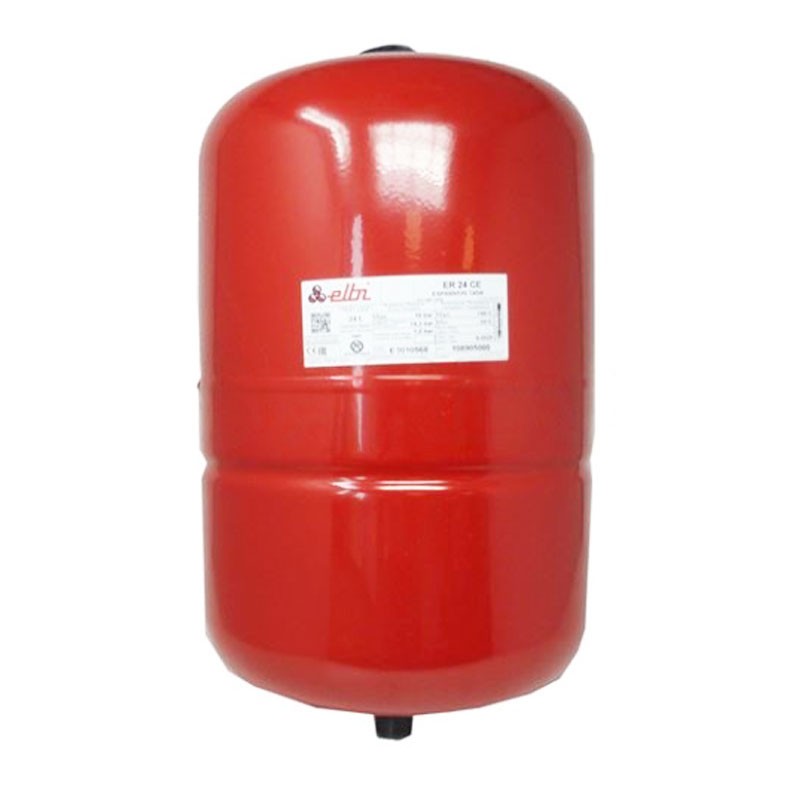

Elbi ERCE 24-liter expansion tank for air conditioning/heating A102L27 00270
ELB A102L27 00270
8019742132728
Elbi ERCE 24 expansion tank, ideal for heating and air conditioning systems, with fixed SBR rubber diaphragm and steel structure, with the following features:
-
Capacity: 24 liters
-
Max pressure: 10 bar
-
Precharge pressure: 1.5 bar
-
Diaphragm: Fixed made of high-performance SBR rubber
-
Painting: Durable epoxy powder coating
-
Dimensions: Height 490mm - Diameter 270mm
-
High-quality steel construction
€32.79
Items Available: 14
: 3
Efficiency expansion vessel for heating and air conditioning systems
The Elbi ERCE 24 expansion vessel is designed to ensure safe and continuous operation of heating and air conditioning systems by effectively absorbing changes in water volume due to temperature fluctuations. It is an essential component for maintaining stable pressure and protecting the entire system.
Sturdy and durable structure
Made of premium steel, this expansion tank is painted with epoxy powders that make it highly resistant to corrosion, even in humid or harsh environments. Its compact design makes it easy to install in small spaces while providing maximum mechanical strength.
Fixed SBR membrane for optimal performance
The heart of the vessel is the fixed membrane made of SBR rubber, a material known for its elasticity and resistance to heat and aging. All Elbi membranes are produced in-house by injection molding and individually tested to ensure their quality and reliability over time.
Compliance and certified quality
The product complies with the essential safety requirements of European Directive 2014/68/EU. This guarantees the reliability of the vessel in civil and industrial applications, according to the highest European standards for pressure equipment.
Technical Characteristics Elbi Expansion Vessel
General Data
| Capacity | 24 liters |
|---|---|
| Precharge pressure | 1.5 bar |
| Maximum pressure | 10 bar |
| Membrane | Fixed in SBR rubber |
| Painting | High-strength green epoxy |
| Material | High-grade steel |
Connections and Standards
| Connection | DN1 3/4 inch |
|---|---|
| Compliance | Directive 2014/68/EU |
Applications
| Use | Heating and air conditioning |
|---|
There are no reviews
Data sheet
- Type: Expansion vessels
- Capacity: 24 Liters
