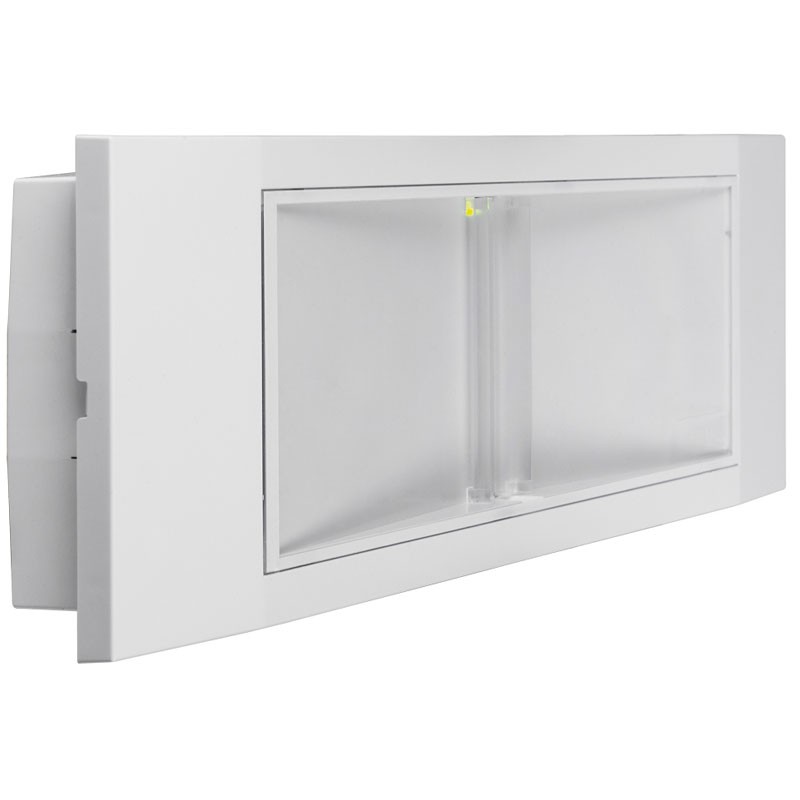

Luminaire characterized by very high range. Innovative lens that enhances lighting performance by allowing extended inter-luminaire spacing and uniformity of pictograph illumination. Beghelli flush-mounted box included.



Accessories not included in the package:

• Ceiling bracket code 4266
• Adhesive 3 SX/DX low code 4278



The optical design offers special anti-glare features and excellent light diffusion thanks to the two transparent methacrylate flow conveyors that conceal the LED source while maximizing the luminous flux. LiFe batteries for extreme ambient temperatures.



Features:

• AC supply voltage type
• Supply voltage (AC) 230 Vac
• Power consumption SE (max) 0.7 W
• TR control system
• Autonomy 1h
• Battery included Yes
• Battery type LiFe Battery 3.2V 0.5Ah
• Charging time 12 h
• Ambient temperature (min) 0 °C
• Ambient temperature (max) 40 °C
• Insulation class II
• CCT light shade 4000 K
• Number of LEDs 16
• Photobiological hazard RG0
• CRI Color rendering >80
• Operating mode SE
• Power equivalent 11W
• Flux SE 130 lm
• Frequency (max) 60 Hz
• Frequency (min) 50 Hz
• Power factor 0.05
• Glow wire res. 850 °C - 30s.
• CE Marks, 850°, ClassII
• Number of batteries 1
• Visibility distance 15 meters
• Supply voltage range (max) 253 V
• Supply voltage range (min) 207 V



Mechanical Specifications

• Dimensions Height 34.6 mm Length 102 mm Width 292 mm
• Weight 0.3 kg
• Body Material Polycarbonate
• Body color White RAL 9003
• Cover material Transparent polycarbonate
• Diffuser Finish Transparent
• Optics Material Polycarbonate Transparent Photoetched
• Degree of protection IP IP40
• Degree of protection IK IK05



Standards

• UK SI 2021 No. 1095, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61547:2009, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-2:2012, EN 60598-2-22:2014 + AC:2015 + AC:2016-05 + AC:2016-09 + A1:2020, EN IEC 63000:2018, EN 62493:2010
