Vimar Tab Free 4.3 Single-Family Video-Intercom Kit K7559.R

Vimar
Vimar
VIW K7559.R 8007352745629

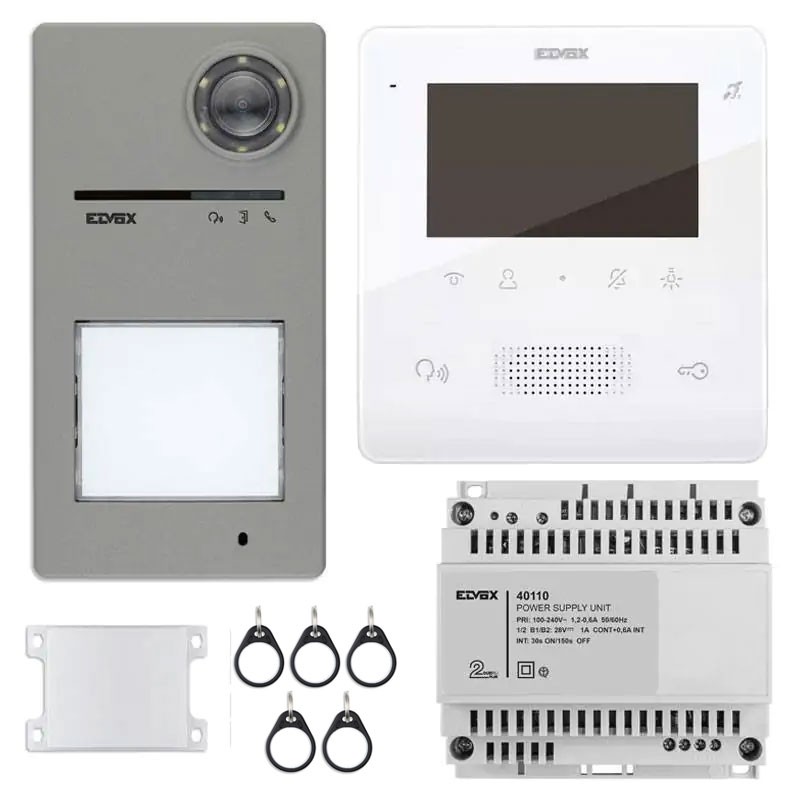

Vimar Tab Free single-family video intercom kit 4.3 color 2-wire system and expandable up to four-family, Kit consists of:



  • 1 Targa Roxie 1 wall-mounted push-button panel (40170)
  • 1 Single-family Targa Pushbutton Kit (40171)
  • 1 Tab Free LCD video intercom 4.3 in (7559)
  • 1 Power Supply 2-Wire+ 100/240V 1 out (40110)
  • Integrated Access Control with 5 Mifare RFID Keys




The Roxie Targa Pushbutton Panel with accessories 40172 (two-button kit) and 40174 (4-button kit) can be expandable up to 4 separate calls (four-family).

Do you have questions about this product or did you not find what you were looking for? Ask us!
Vimar Tab Free 4.3 Single-Family Video-Intercom Kit K7559.R
€484.04
€484.04

€484.04
Tax included
Calculate shipping cost
Items Available: 27
Further availability of the manufacturer
€484.04

Buy it within and receive it from Tuesday, 24 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Kit parts specifications:

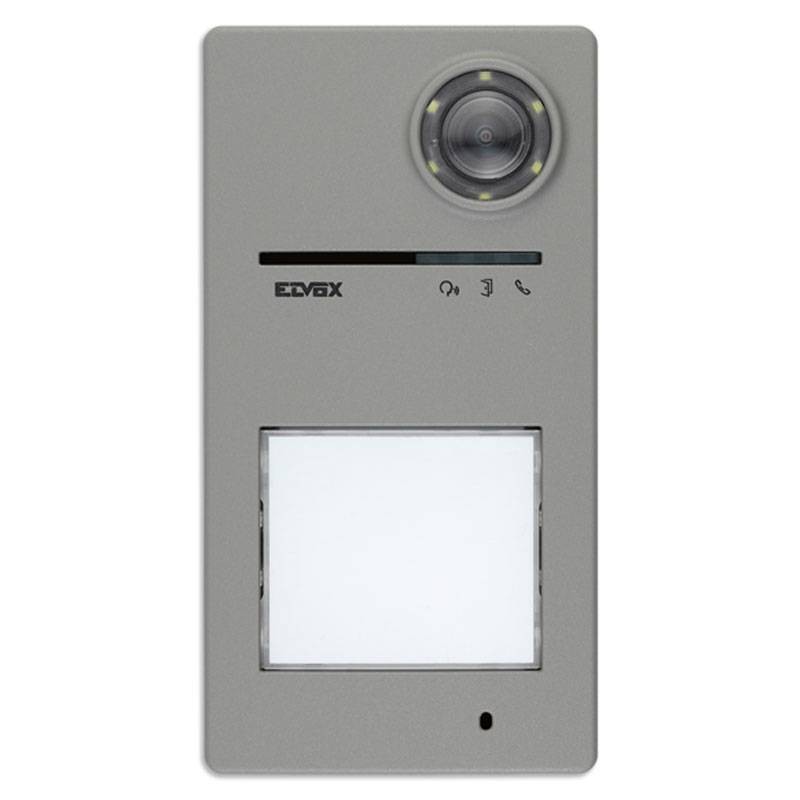

Pushbutton Panel Targa A/V grand. 4P ac control:

  • Targa Roxie audio video Two-Wire Plus
  • Programmable by View Wireless app with standard Bluetooth technology
  • RFID Access Control
  • 130° wide-angle color camera
  • Provision for 4 white LED backlit call buttons with twilight lighting management
  • LED signaling of call status and lock operation
  • 1 external camera input
  • 1 input configurable as external door opener AC or door open button PA
  • 1 direct opening output for electric lock
  • 1 configurable SELV relay output NC or NO 48V 1A
  • Wall or semi-recessed installation (with dedicated accessory)

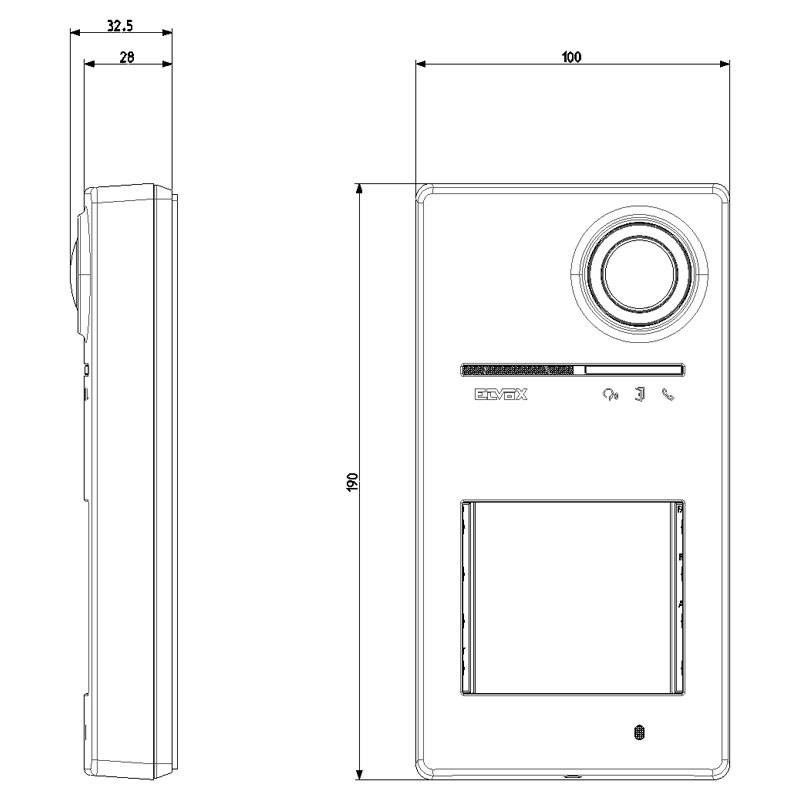

  • Dimensions: Width 100 mm - Height 190 mm - Thickness 32.5 mm

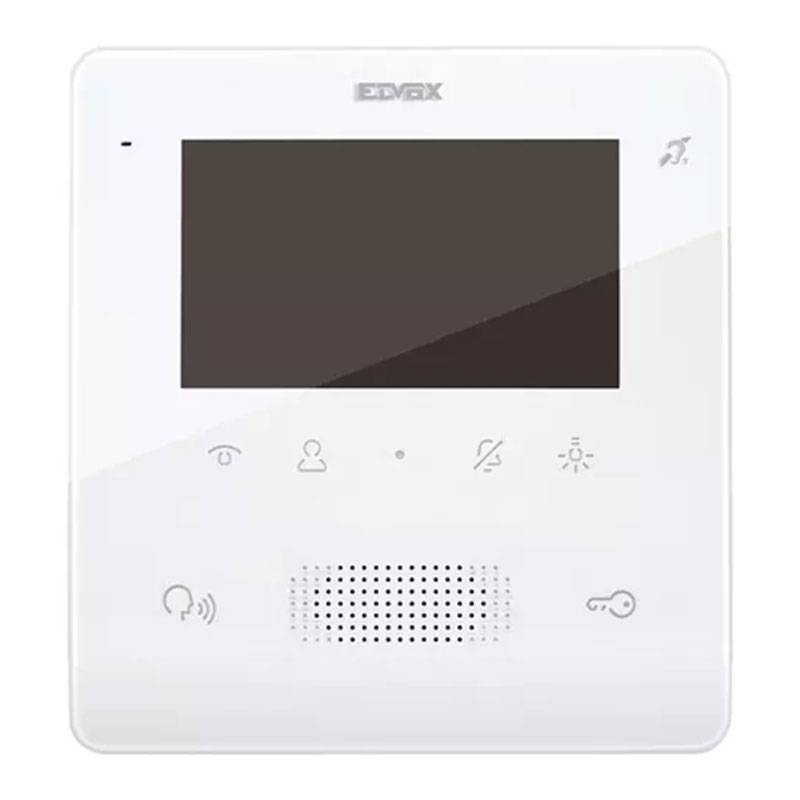

Videointercom TabFree4,3 2F+hands-free white:

  • Tab Free handsfree wall-mounted videophone
  • For Two-Wire Plus system
  • Color LCD display 4.3in 16:9, resolution 480x272 pixels
  • Capacitive keypad for video intercom functions and intercom calls
  • Teleloop for hearing aids
  • Bracket for mounting on rectangular or round box
  • White color

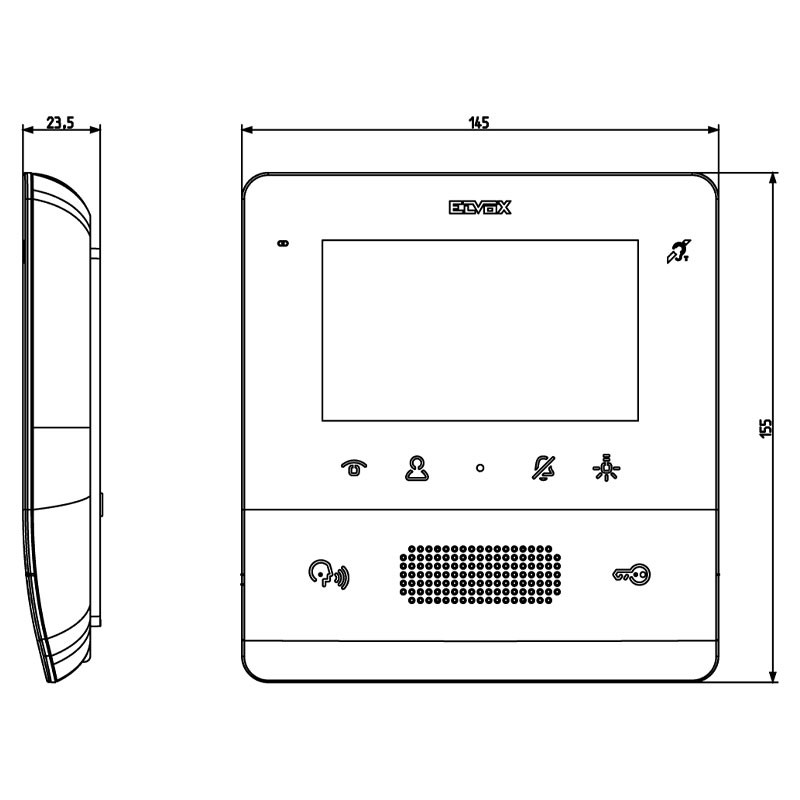

  • Dimensions 145x155x23.5mm

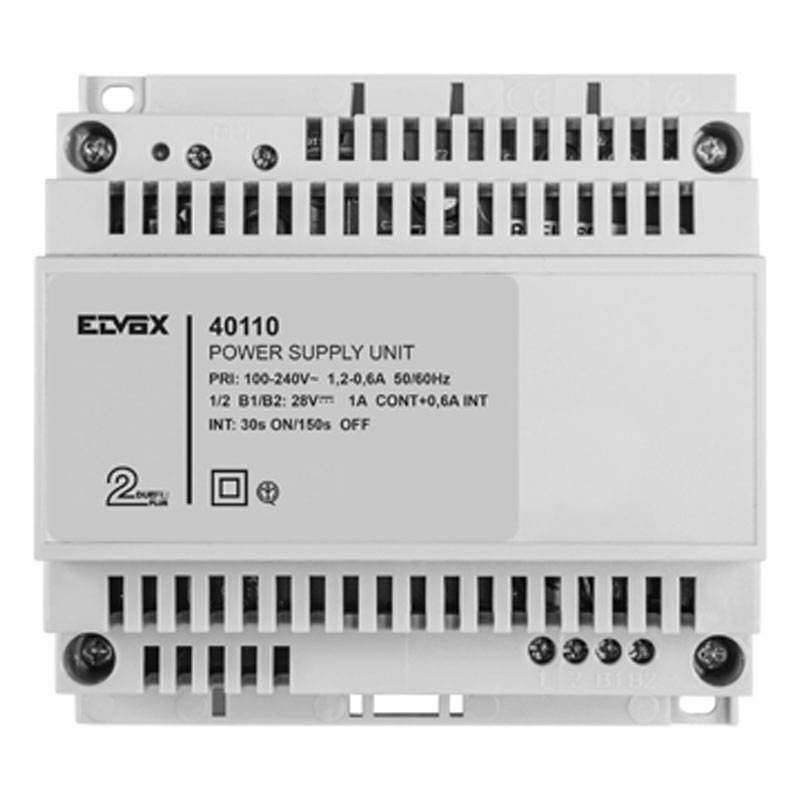

2F+ 100-240V 1 OUT 1.6A power supply:

  • Two-Wire video intercom power supply with 28 Vdc output.
  • Power supply 100-240 V~ 50/60 Hz
  • DIN-Rail Installation (60715 TH35)
  • Occupies 6 x 17.5 mm modules



5 Mifare RFID keys for Roxie 40170 access control plate.

There are no reviews

Data sheet

KIT:
Video Intercom Kits
Model:
Intercom function
RFID function
Single-family house
Tloop function
System:
2-Wire
