Vimar Elvox K7549.R Vimar Video Intercom Kit

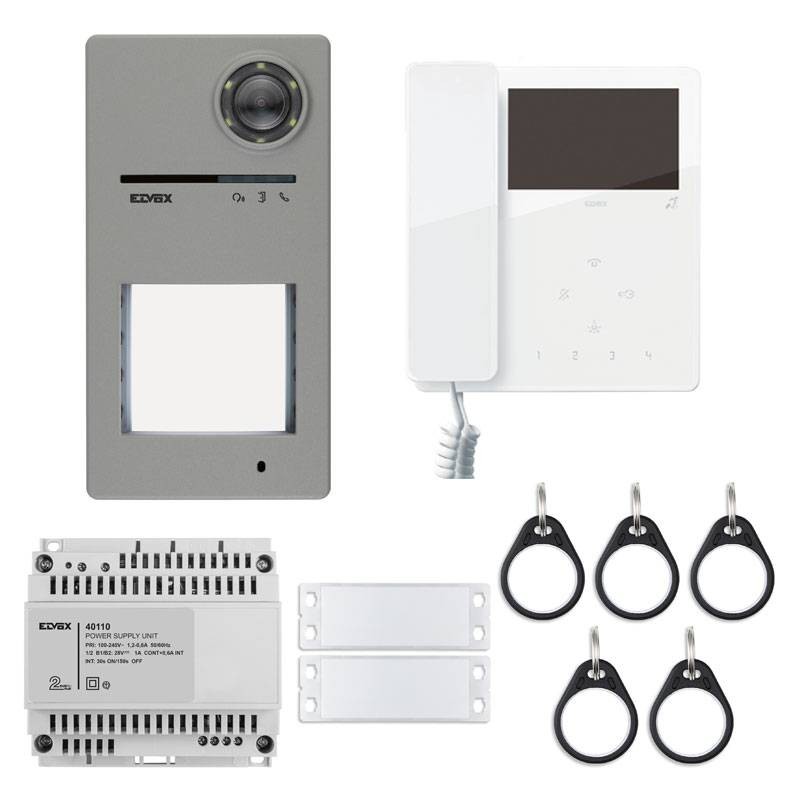

With a sleek design and advanced features, the kit is ideal for installation in single-family homes and offers the possibility of expansion. The system features a wall-mounted video intercom with color display, entrance panel with access control reader, and a range of accessories for a complete and secure installation.

General product description

Videointercom design and quality

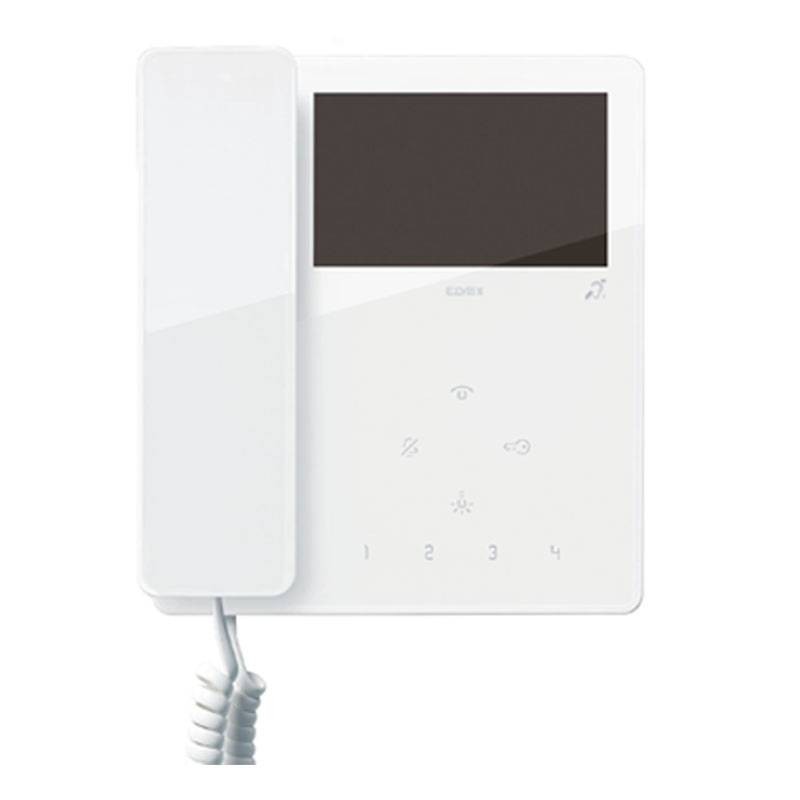

The Tab 4.3 video door phone is an elegant wall-mounted device with a white frame that fits easily into any décor. The 4.3" color display ensures a clear and sharp display of images, allowing you to accurately recognize who is standing in front of the door. With a built-in handset, this video intercom not only allows you to see, but also to talk comfortably with visitors.

Advanced security features

The kit includes a Roxie license plate with a single button and two double buttons, allowing you to open the gate or front door with ease. The built-in RFID reader provides convenient access control management, with 5 Mifare RFID keys included for secure access to your home. The ability to add keys in the future increases the security of the system.

Expandability and convenience

This video intercom kit is perfect for single-family homes but also for residential systems undergoing expansion. Thanks to the 2-wire system, installation is simplified and allows easy connection of the video intercom and other components. In addition, the unit is expandable, which means you can add other compatible devices such as additional video intercoms or multiple access modules.

Power supply and functionality

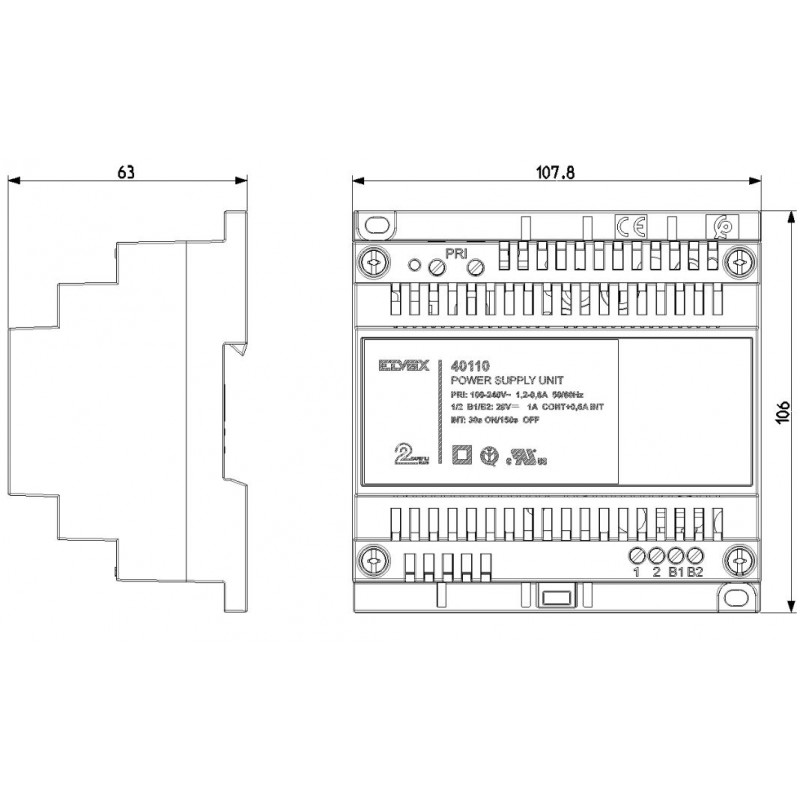

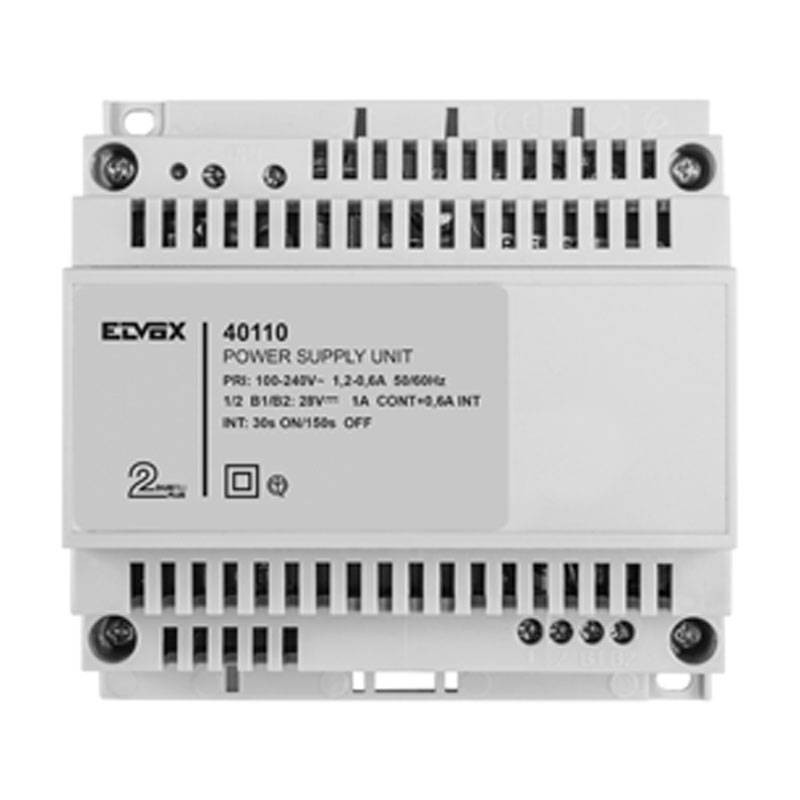

The kit is equipped with a 40110 power supply that provides sufficient power to all system components. This power supply ensures stable and safe operation, with the ability to handle up to 2 video door phones and 2 access points without interruption or malfunction.

Detailed Technical Specifications Video Door Phone

Technical Specifications

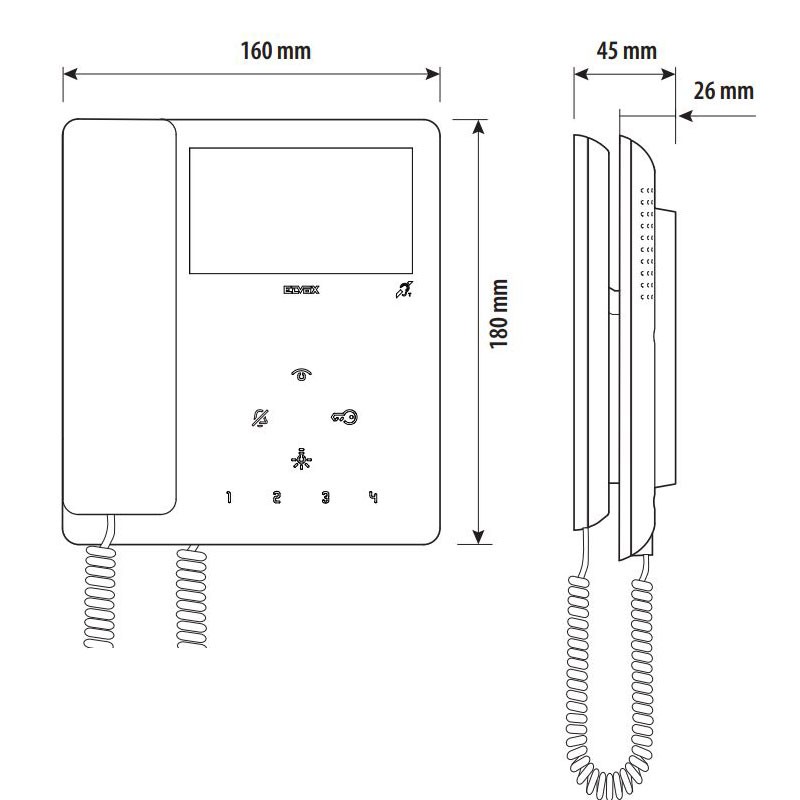

Wall-mounted Tab videophone for Two-Wire Plus system with 4.3 LCD color display, handset, loudspeaker for call signaling, capacitive keypad for intercom functions (lock opening, auto-on, auxiliary services, volume, brightness, contrast adjustments) and intercom calls. It is possible to differentiate ring tones for calls. Visual alerts are for open door/gate and "Unanswered calls from concierge switchboard," absent user, ringer mute. Can be used by hearing aid wearers.

Video Intercom Functions:

• Audio frequency function for hearing aids (Teleloop): The video door phone can be used by hearing aid wearers

• Audio/video adjustments

• Image volume and brightness adjustment

• Pan/zoom adjustment

• Auto power on (Call an Outdoor Station)

• Call an Inside Station (Intercom) or Concierge Switchboard

• Alert function (allows a notification to be sent to the concierge switchboard art 40510, even if the Two-Wire Plus bus is busy)

• Call ring tone selection

• Ringer volume adjustment

• Ringer mute



Roxie audio-video Two-Wire Plus Targa Push Button 40170

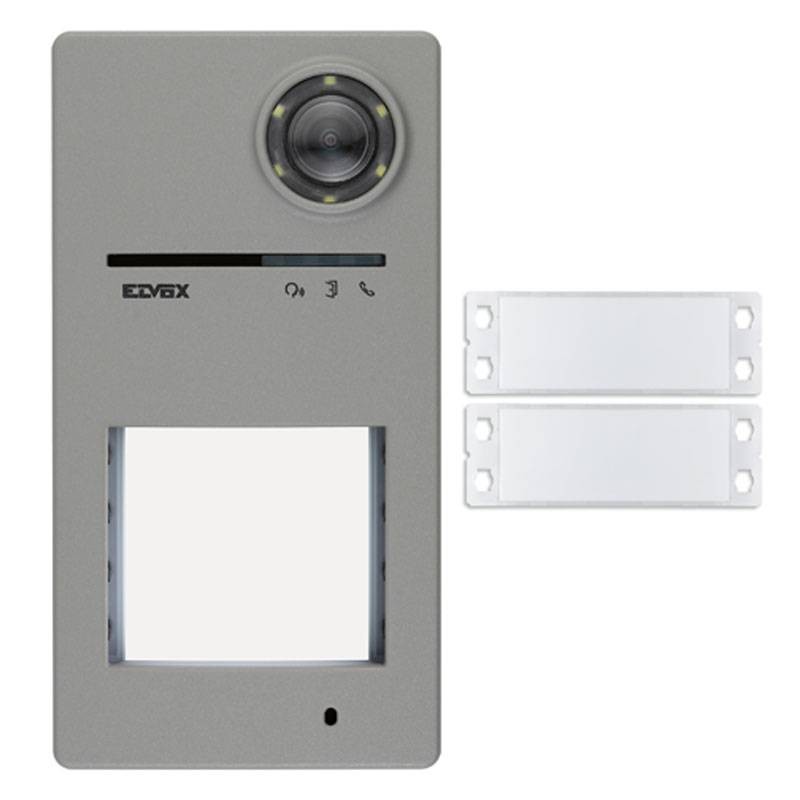

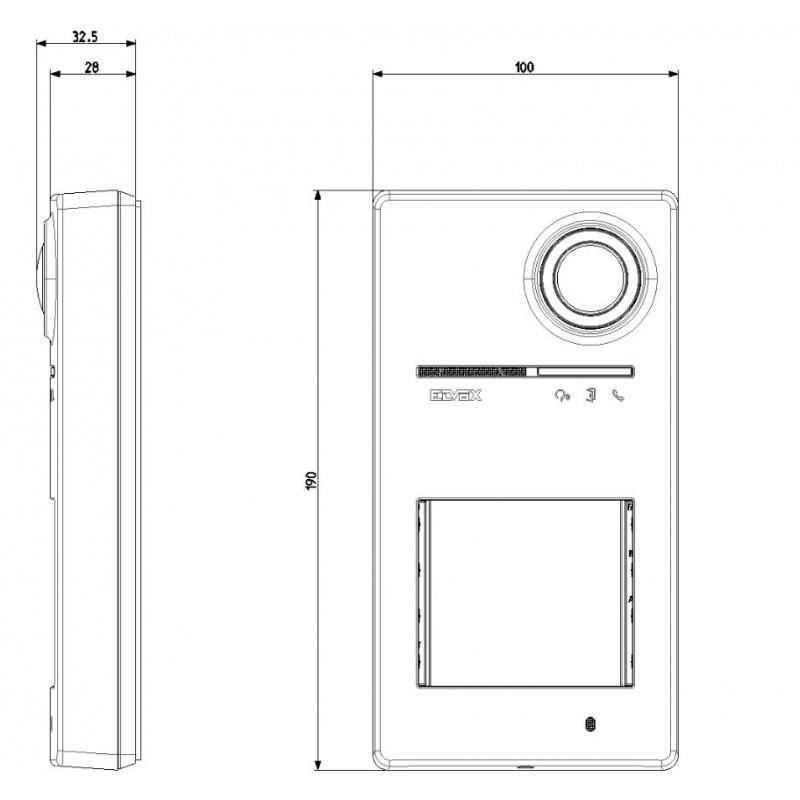

The Targa A/V 4P Push Button Panel is an advanced access control and video management device, ideal for advanced video door entry systems. Equipped with numerous features, including a 130° wide-angle color camera and white LED-backlit buttons, it offers security, convenience and a modern design for any type of home or apartment building. Control is via Bluetooth and app, with programmable and customizable functions for every need.

Key features:

• Wide-angle camera: Color camera with 130° viewing angle for full visibility.
• RFID Access Control: Includes RFID key reader system for secure access management.
• 4 backlit buttons: White LED buttons for calls and automatic twilight management.
• App management: Configuration and control via View Wireless app with Bluetooth technology.
• Door opening function: Includes outputs for electric lock opening and configurable external button.
• Easy installation: Wall-mounted or semi-recessed installation with dedicated accessory.



General description of the push button panel

Advanced functions for safety and comfort

The Targa A/V 4P Push Button Panel is designed to provide a high level of security and functionality. With its 130° wide-angle camera, it allows you to accurately monitor the surrounding area, while the RFID access control system allows you to manage access safely and quickly. In addition, white LED-backlit buttons, which automatically activate based on ambient light, provide optimal visibility and elegant design.

Control and customization

Thanks to compatibility with the View Wireless app, the hand control can be easily programmed and customized. The app allows users to configure button operation, manage the lock, and monitor call status in real time. The system is also equipped with an input for an external camera to further enhance surveillance.

Ease of installation and use

The Roxie license plate is designed for easy wall or semi-recessed installation with the help of a dedicated accessory. With its compact size and elegant design, it fits perfectly into any environment, ensuring continuous and safe operation.

Detailed technical features

• Camera: Color, 130° viewing angle.
• Access control: RFID reader for secure access management.
• Buttons: 4 white LED backlit buttons with twilight lighting management.
• Outputs: 1 output for direct electric lock opening and 1 configurable SELV relay output NC or NO.
• Configurable input: 1 input for external camera or external door opener button.
• Installation: Wall-mounted or semi-recessed (optional accessory required).
• Remote control: Manageable via View Wireless app with Bluetooth.
• Compatibility: Compatible with add-on modules for expansion and custom configuration.
