Elvox 2-Wire plus expandable audio and video system basic kit K41005
VIW K41005
8013406306784
Elvox 2-Wire Plus basic kit with wide-angle audio/video unit and power supply unit on DIN rail. Expandable system, ideal for modern video intercom systems.

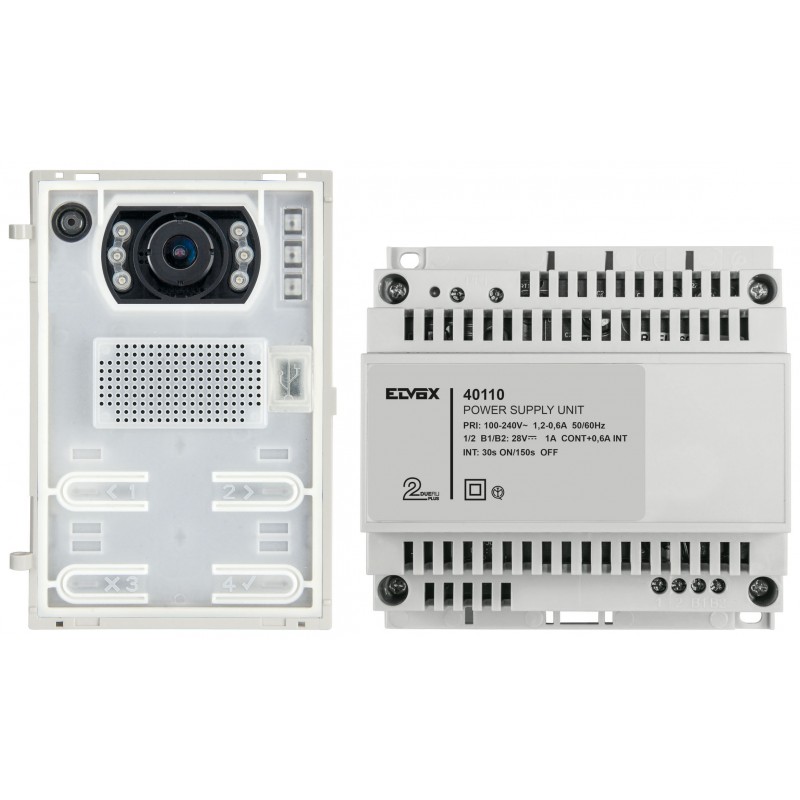

The kit consists of:
-
1 2-Wire wide-angle audio/video unit (code 41005)
-
1 2-Wire video intercom entry power supply unit 100-240V 1 OUT 1.6A (code 40110)
€320.00
Items Available: 32
: 3
Frequently bought together
Elvox Kit The Perfect Base for Your Video Intercom System
The Elvox Base Kit is the ideal choice for those who want to install or renovate a video intercom system with Two-Wire Plus technology, combining simplicity, expandability and high performance. Consisting of an audio/video entrance panel and a power supply, it is the perfect starting point for single homes or small complexes, with the possibility of future expansion.
Kit Specifications

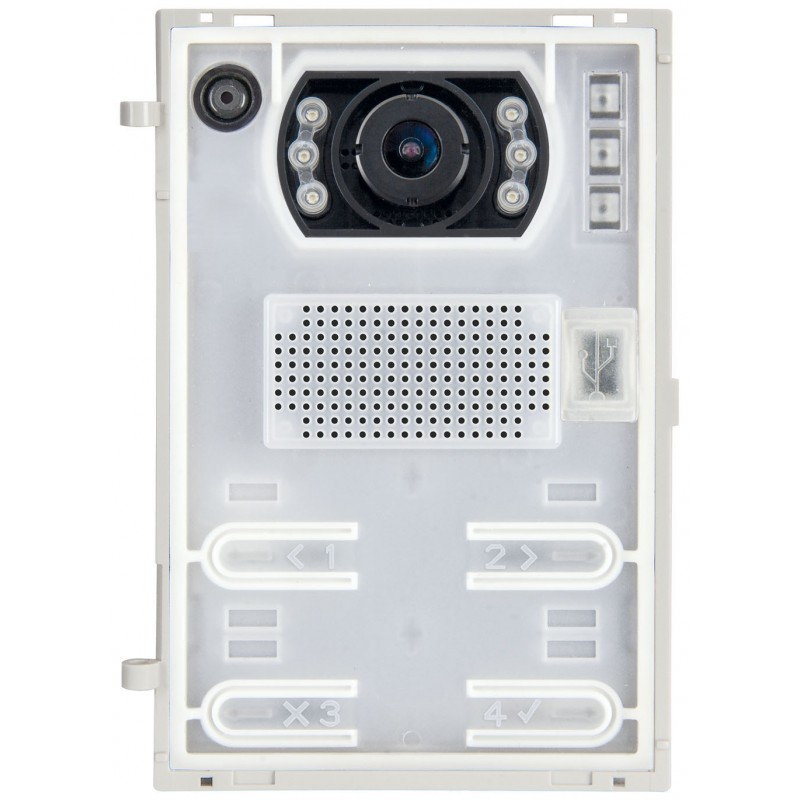

2-Wire Plus audio/video unit with wide-angle camera
This 2-Wire Plus electronic unit is designed to be integrated into flush-mounted video door entry panels. Equipped with a wide-angle color camera, it offers a wide view of the entrance with automatic lighting adjustment for sharp images even in unfavorable lighting conditions.
Technical Specifications 2F+ A/V teleloop wide-angle unit
| Parameter | Value |
|---|---|
| Technology | Two-Wire Plus |
| Type | Audio/video unit for license plate |
| Camera | Wide angle color |
| Lighting adjustment | Automatic |
| Audio management | Automatic with echo suppression |
| Teleloop | Yes (hearing aid compatible) |
| Call buttons | 4 backlit with white LEDs, twilight management |
| Call status LED | Yes |
| Configurable input | 1 (AC door opener or PA open door) |
| Electric lock output | 1 direct |
| Installation | Recessed |
| To be completed with | Elvox faceplate and button (single, double or hole cover) |
| Compatibility | 2-Wire Plus video door entry systems |
| PTZ Function | No |
| Manually adjustable video camera | No |

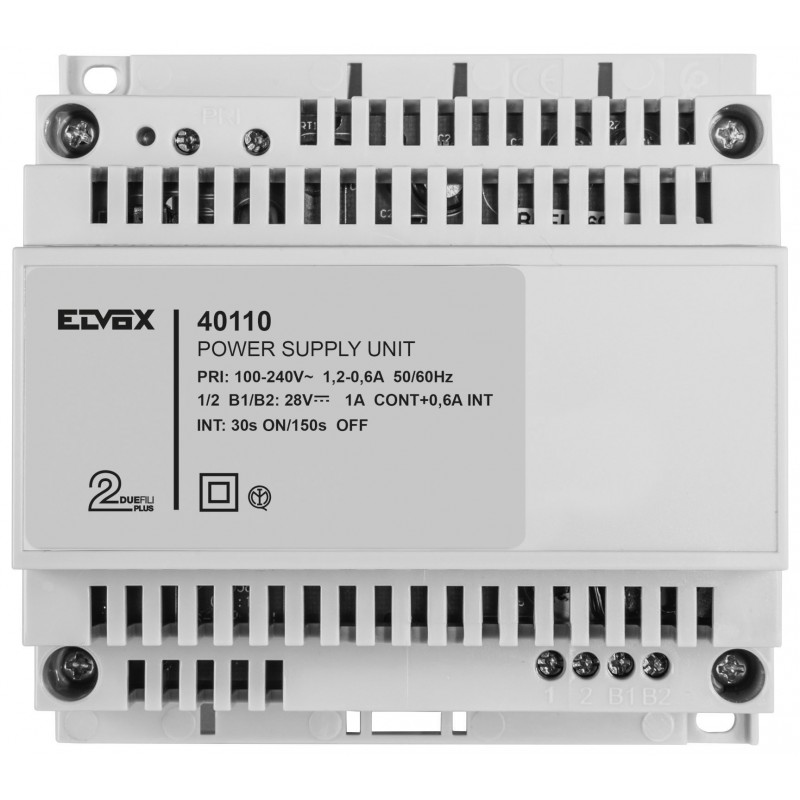

2-Wire Plus 100-240V power supply with 28 Vdc output
The 2F+ power supply with 28 Vdc - 1.6A output is designed to provide a stable and safe power supply to Two-Wire Plus video intercom systems. Its wide input voltage range (100-240 V~) makes it suitable for residential, commercial and international installations.
Technical Specifications Elvox Power Supply
| Parameter | Value |
|---|---|
| Input voltage | 100-240 V~ 50/60 Hz |
| Output voltage | 28 Vdc |
| Maximum output current | 1,6 A |
| Installation | On DIN 60715 TH35 rail |
| Mounting type | Recessed in control cabinet |

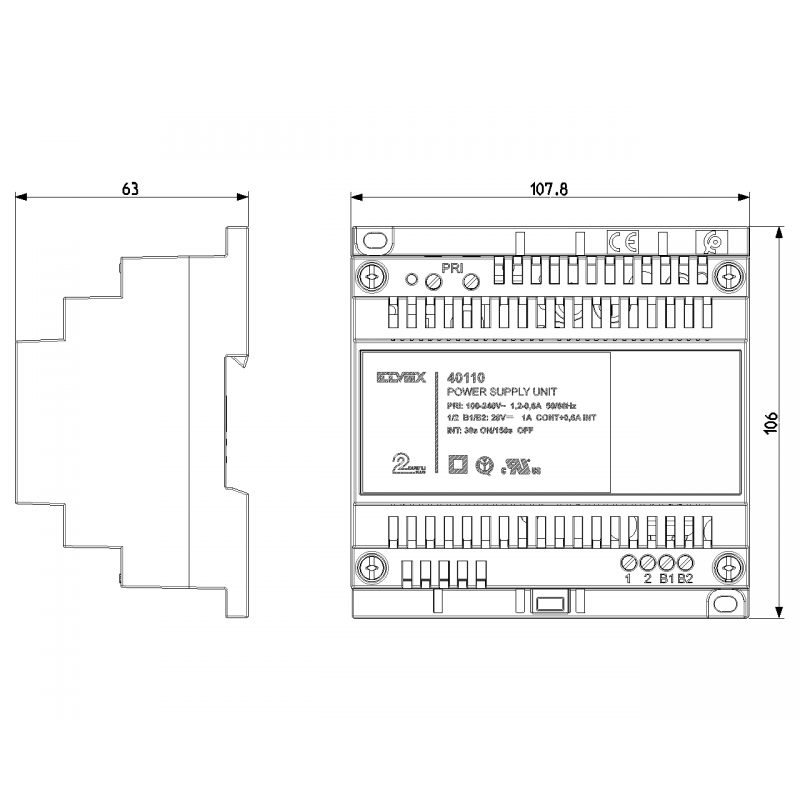

| Overall dimensions | 6 DIN modules (17.5 mm each) |
| Applications | Two-Wire Plus video door entry systems |
| Class | Power supply for video/intercom system |
